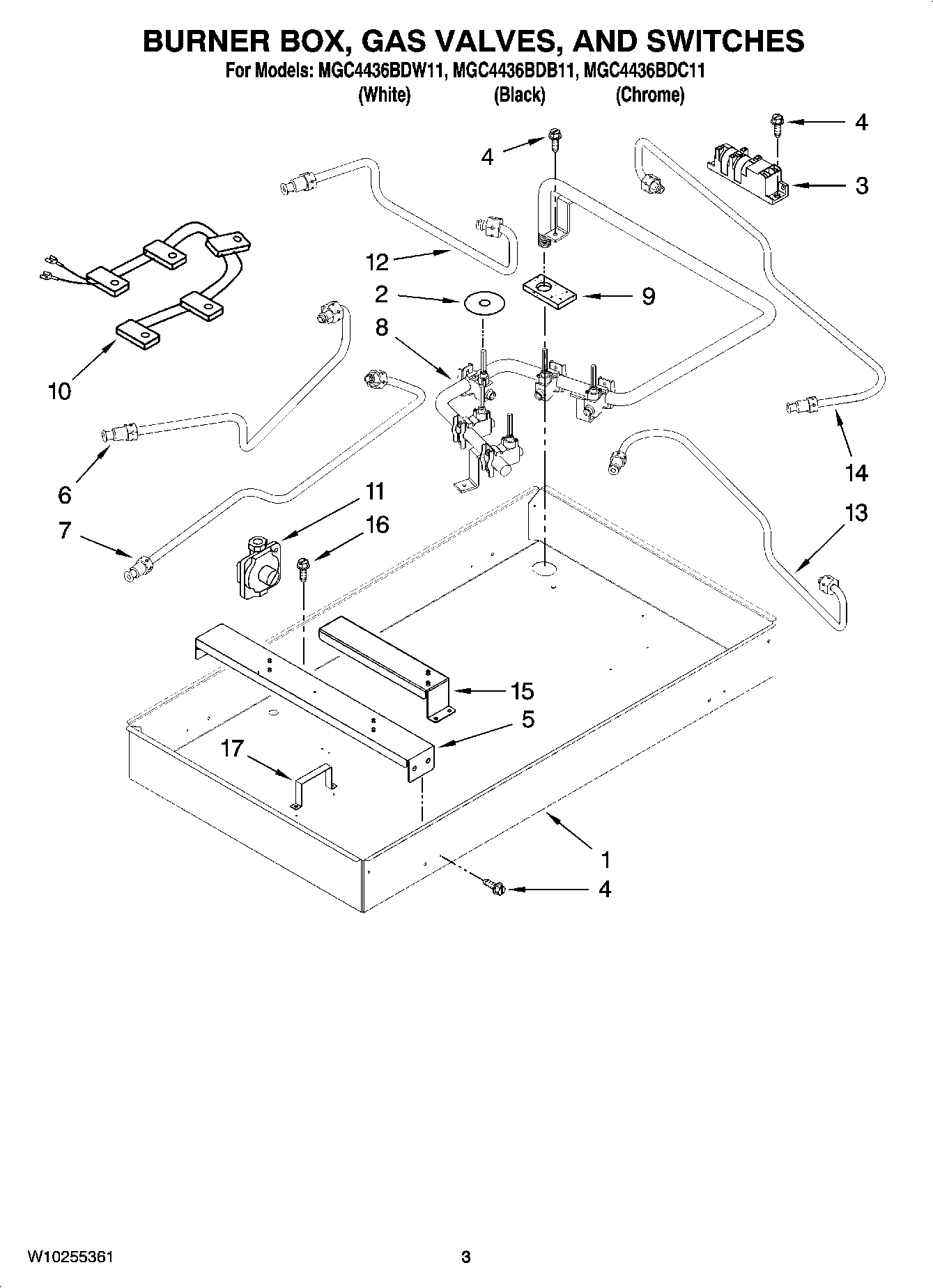

MGC4436BDW11 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	MAY 74010439
NI	MAY W10165912
NI	WP7509P103-60 Whirlpool Conversion Kit
NI	Harness, Cooktop
NI	MAY W10177769
NI	MAY W10177768
NI	MAY 74007903
NI	MAY 31552
NI	SCREW No.10 X 2
NI	BUSHING, SNAP
1	Burner Box
2	WP74007705 Whirlpool Grommet
3	Spark Module
4	WP90767 Whirlpool Screw
5	Bracket, Orifice Holder (2)
6	Tubing, Gas (Left Front)
7	Tubing, Gas (Left Rear)
8	Pipe, Manifold (Includes Valves)
9	MAY 74001380
10	MAY W10184468
11	W11087445 Whirlpool Pressure Regulator
12	Tubing, Gas (Center)
13	Tubing, Gas (Right Front)
14	Tubing, Gas (Right Rear)
15	Bracket, Center Orifice Holder
16	WP71001171 Whirlpool Screw
17	MAY 3801F933-51
