MGC5430ADC 02 – TOP ASSEMBLY
Written by
in

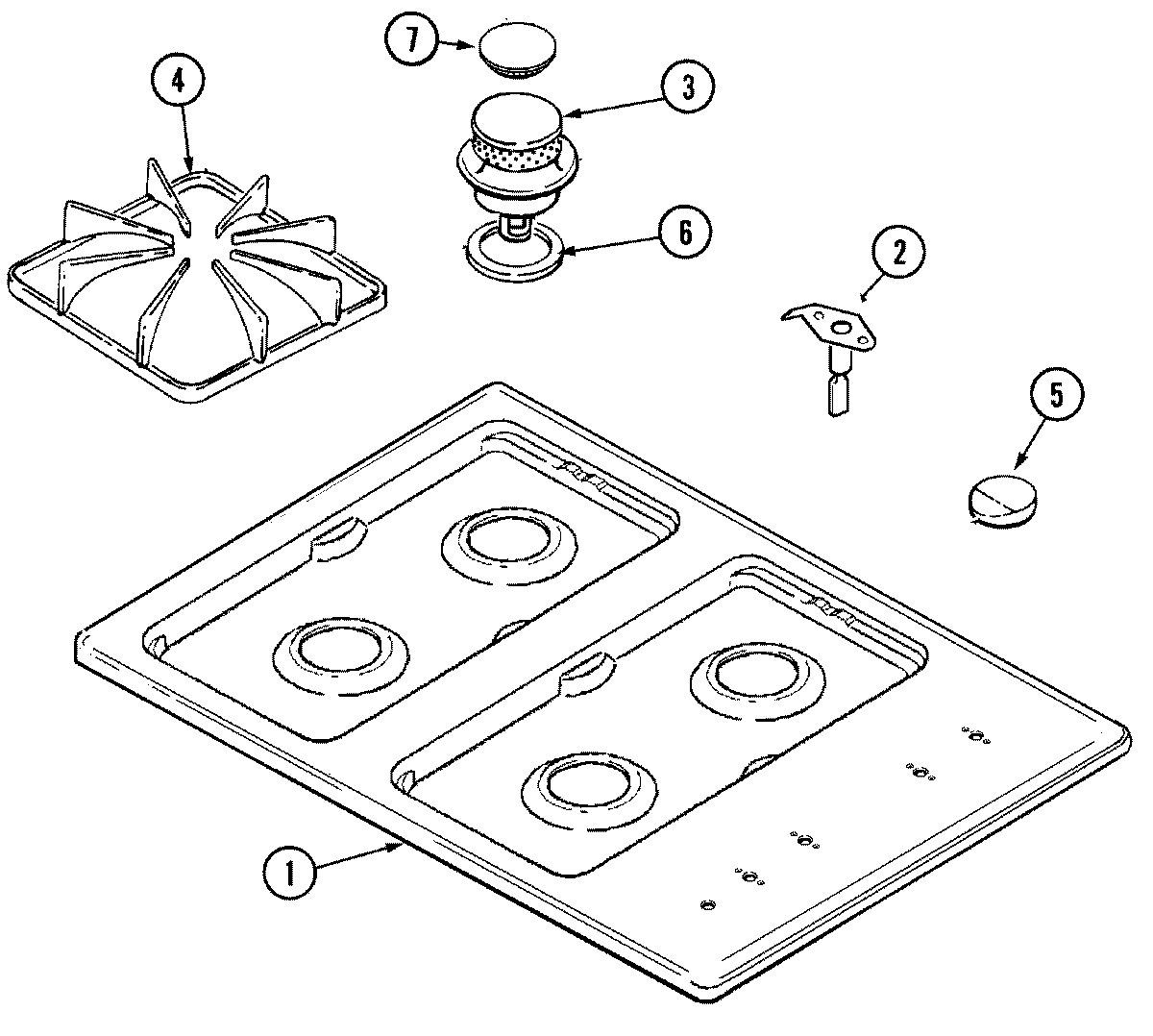

MGC5430ADC 02 – TOP ASSEMBLY
Products
Position
Product
1
MAY 74004630
1
MAY Y8007P02060
2
MAY 74004410
2
74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
3
MAY Y707113
3
WP3412D024-09 Whirlpool Oven Burner Head
3
WP3412D021-09 Whirlpool Burner Assembly
4
MAY 74001769
5
MAY 8008P039-60
5
MAY 74001299
6
MAY 74002745
7
WP3403F088-00 Whirlpool Burner Cap
8
MAY 5125A234-60
8
MAY 5111A261-60
8
MAY 5111A610-60
9
MAY 74004631
9
MAY 74004654
←
