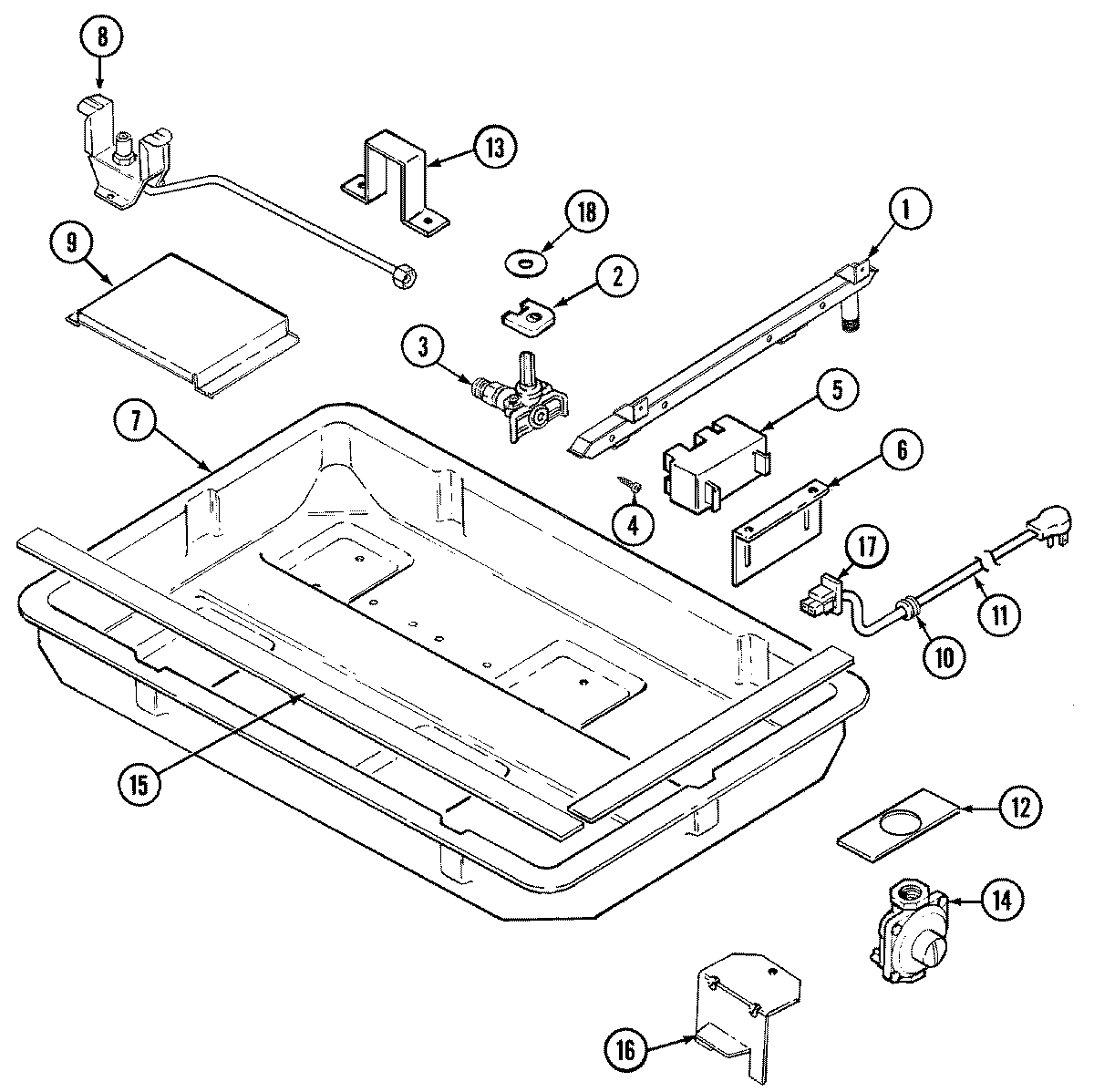

MGC5430ADW 01 – GAS CONTROLS/BODY

Products

Position	Product
1	MAY 74004633
2	WP7403P367-60 Whirlpool Switch
3	MAY 74004635
3	MAY 74004634
4	MAY 71003231
5	MAY 74003288
6	SCREW
6	MAY 3801F357-45
7	MAY 74004636
8	MAY 74004637
8	MAY 74004638
8	MAY 74004639
8	MAY 74004640
8	MAY 74007108
8	MAY 74007109
8	MAY 74007110
8	MAY 74007111
9	MAY 4005F427-51
10	BUSHING, SNAP
11	MAY 7402P014-60
12	MAY 74001380
13	MAY 3801F298-45
14	MAY 74006983
14	W11170853 Whirlpool Regulator Assembly
15	MAY 8270P100-60
16	SCREW (10ABX1.0-ZN)
16	MAY 3801F192-45
17	MAY 74002230
17	MAY 74002301
18	MAY 7724P004-60
