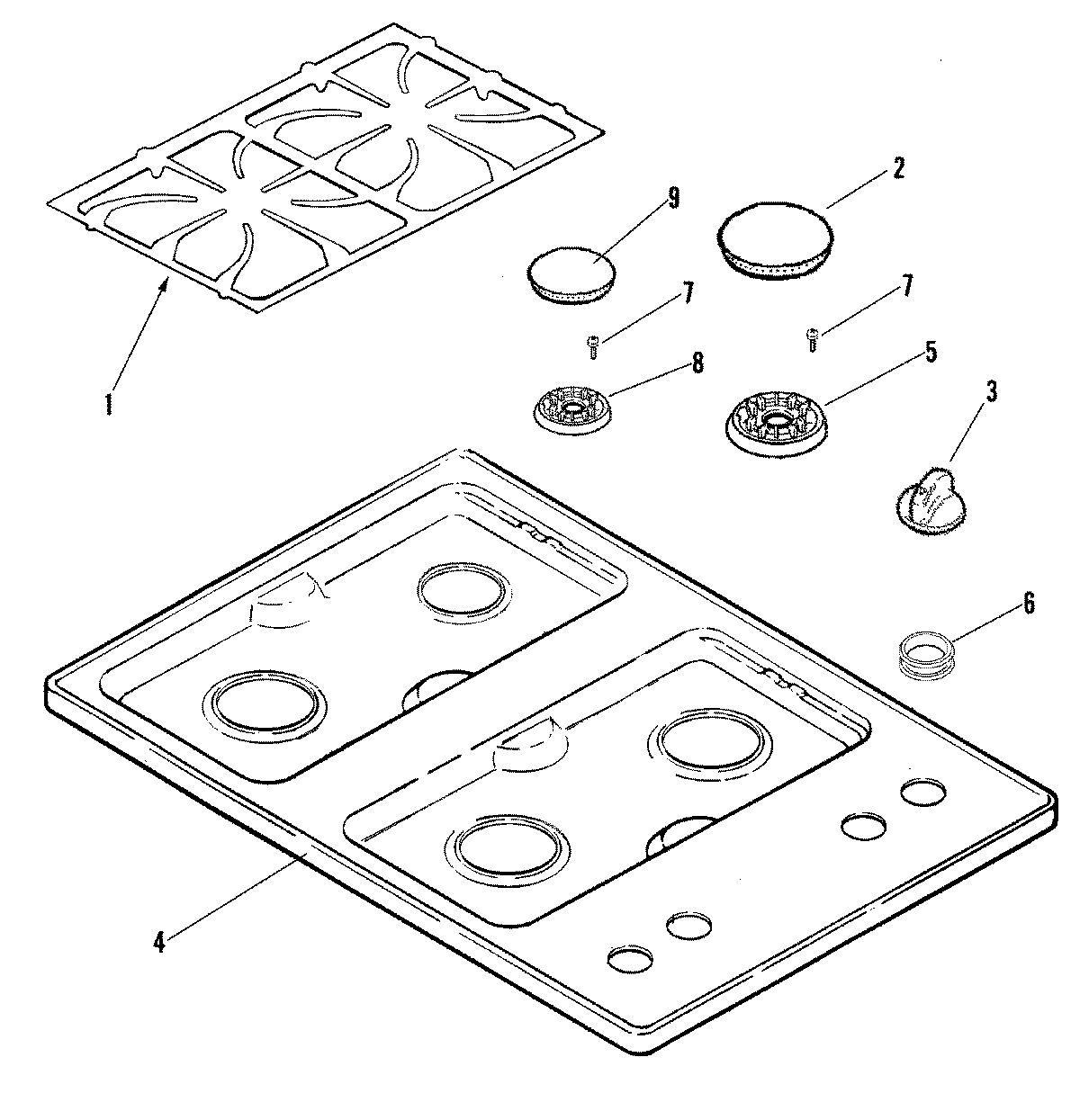

MGC5430BDB 03 – TOP ASSEMBLY

Written by

Products

Position	Product
1	W10919249 Whirlpool Burner Grate Foot
1	MAY 74007789
1	MAY M0275597
2	Cap, Burner (12.5K RF, LR)
3	WP74011287 Whirlpool Burner Knob
4	MAY 74007781
5	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
6	WP74007705 Whirlpool Grommet
7	WP3368921 Whirlpool Screw
8	WPW10406243 Whirlpool Burner Head Auxiliary 6K
9	WP8284669 Whirlpool Burner Cap
10	MAY 74007565
