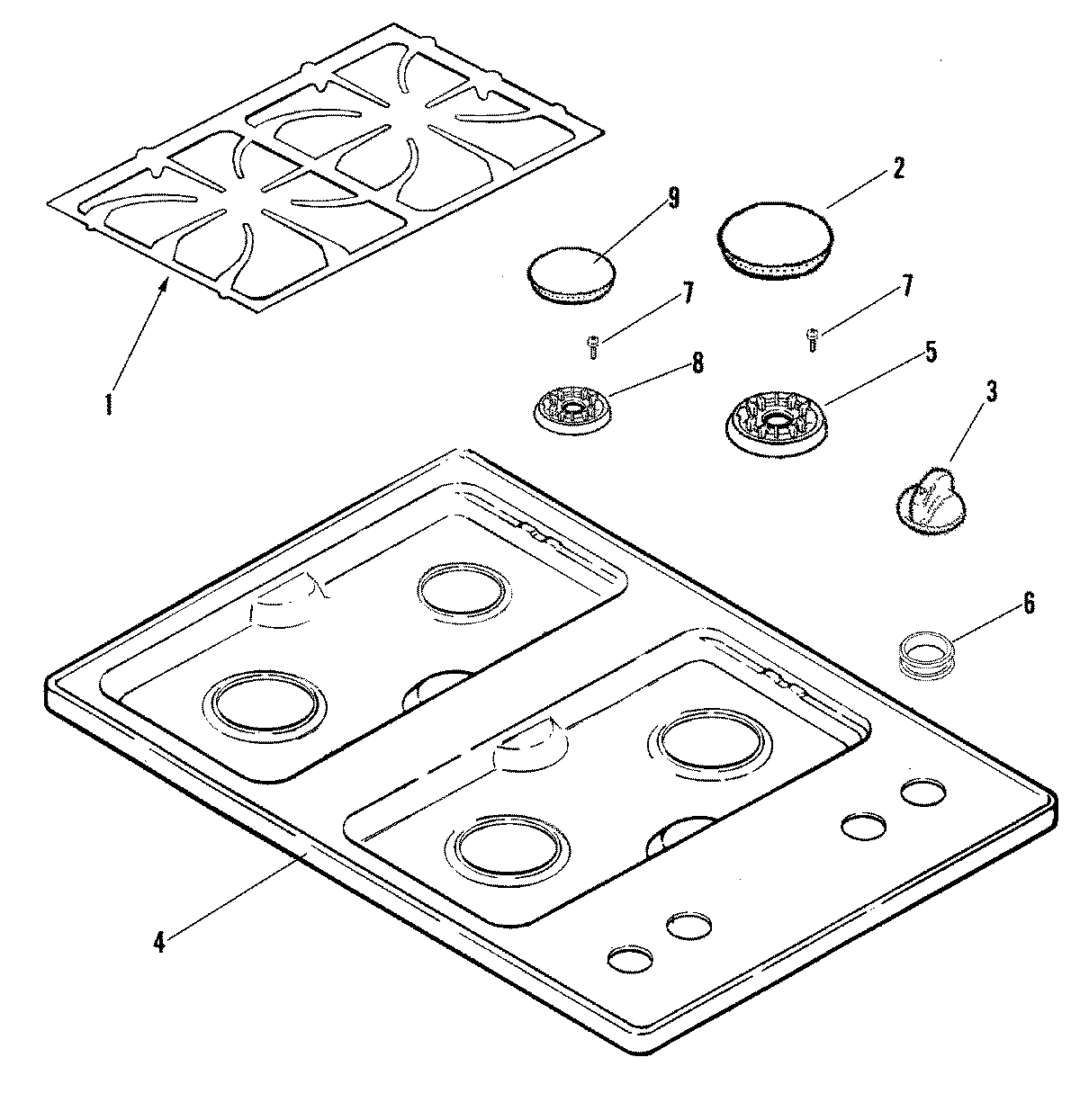

MGC5430BDQ 03 – TOP ASSEMBLY

MGC5430BDQ 03 – TOP ASSEMBLY

Written by

in

MGC5430BDQ 03 – TOP ASSEMBLY

Products

PositionProduct
1W10919249 Whirlpool Burner Grate Foot
1MAY 74007791
1MAY M0275597
2WP74007751 Whirlpool Burner Cap
3WP74011277 Whirlpool Knob Burner
4MAY 74007783
5WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
6WP74007705 Whirlpool Grommet
7WP3368921 Whirlpool Screw
8WPW10406243 Whirlpool Burner Head Auxiliary 6K
9WP74007419 Whirlpool Burner Cap
10MAY 74007565
