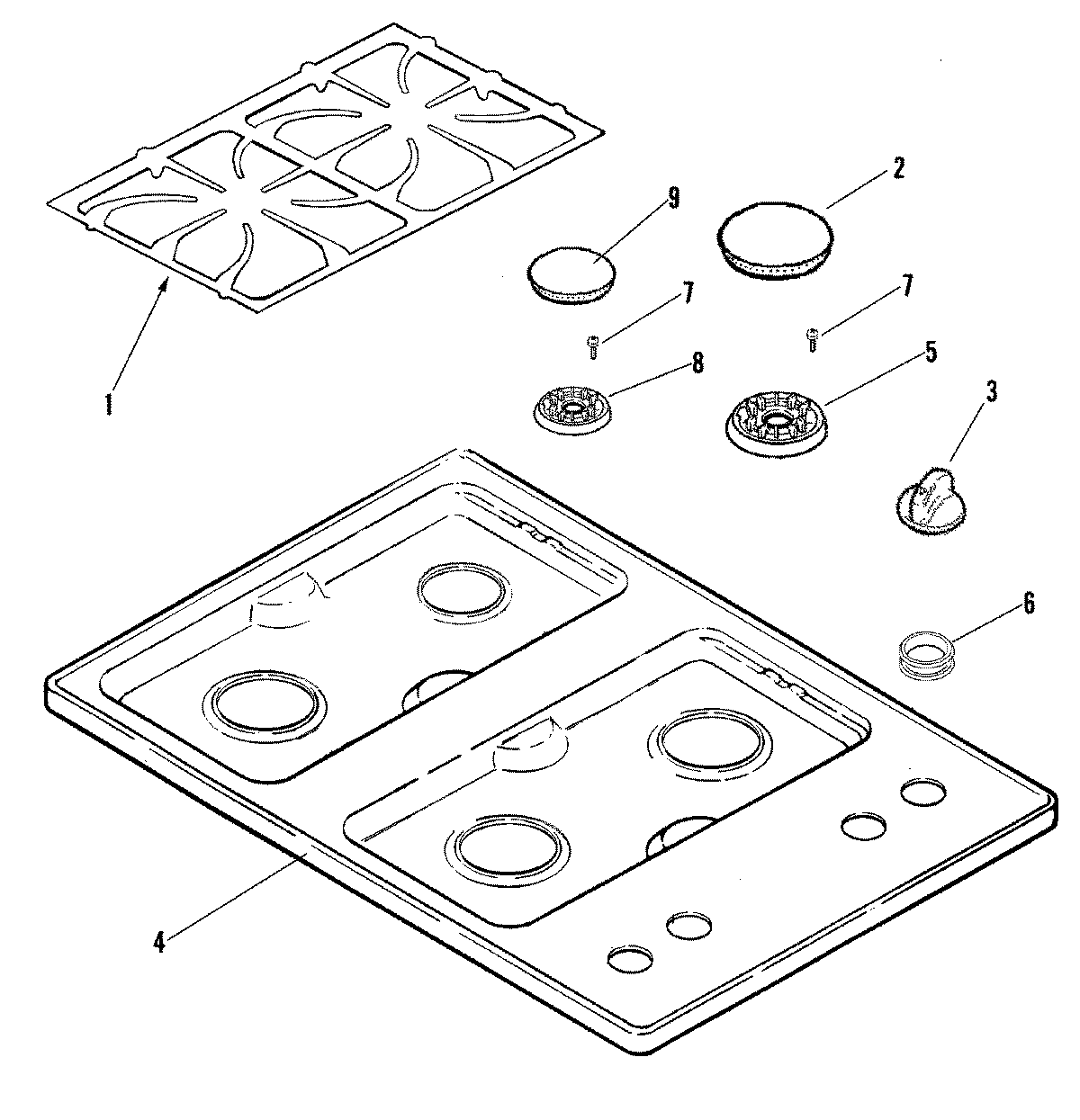

MGC5430BDS 03 – TOP ASSEMBLY

MGC5430BDS 03 – TOP ASSEMBLY

Written by

in

MGC5430BDS 03 – TOP ASSEMBLY

Products

PositionProduct
1W10919249 Whirlpool Burner Grate Foot
1MAY 74007789
1MAY M0275597
2Cap, Burner (12.5K RF, LR)
3WP74011287 Whirlpool Burner Knob
4MAY 74007784
5WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
6WP74007705 Whirlpool Grommet
7WP3368921 Whirlpool Screw
8WPW10406243 Whirlpool Burner Head Auxiliary 6K
9WP8284669 Whirlpool Burner Cap
10MAY 74007565
