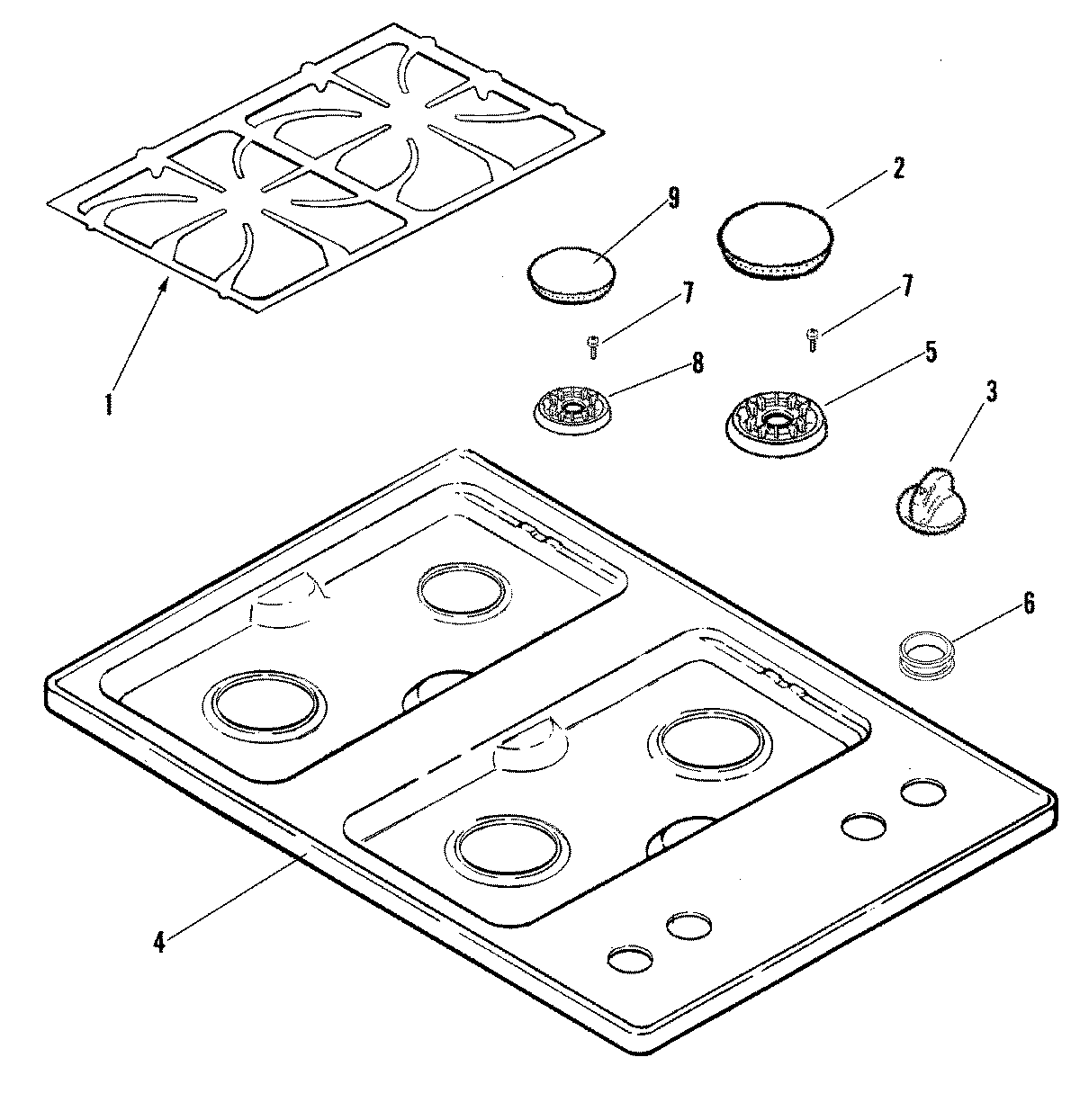

MGC5430BDW 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74007790
1W10919249 Whirlpool Burner Grate Foot
1MAY M0275597
2WP74007752 Whirlpool Burner Cap (Medium Gray)
3WP74011276 Whirlpool Knob Burner
4MAY 74007782
5WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
6WP74007705 Whirlpool Grommet
7WP3368921 Whirlpool Screw
8WPW10406243 Whirlpool Burner Head Auxiliary 6K
9CAP, BURNER (SMR-GRY)
10MAY 74007565
