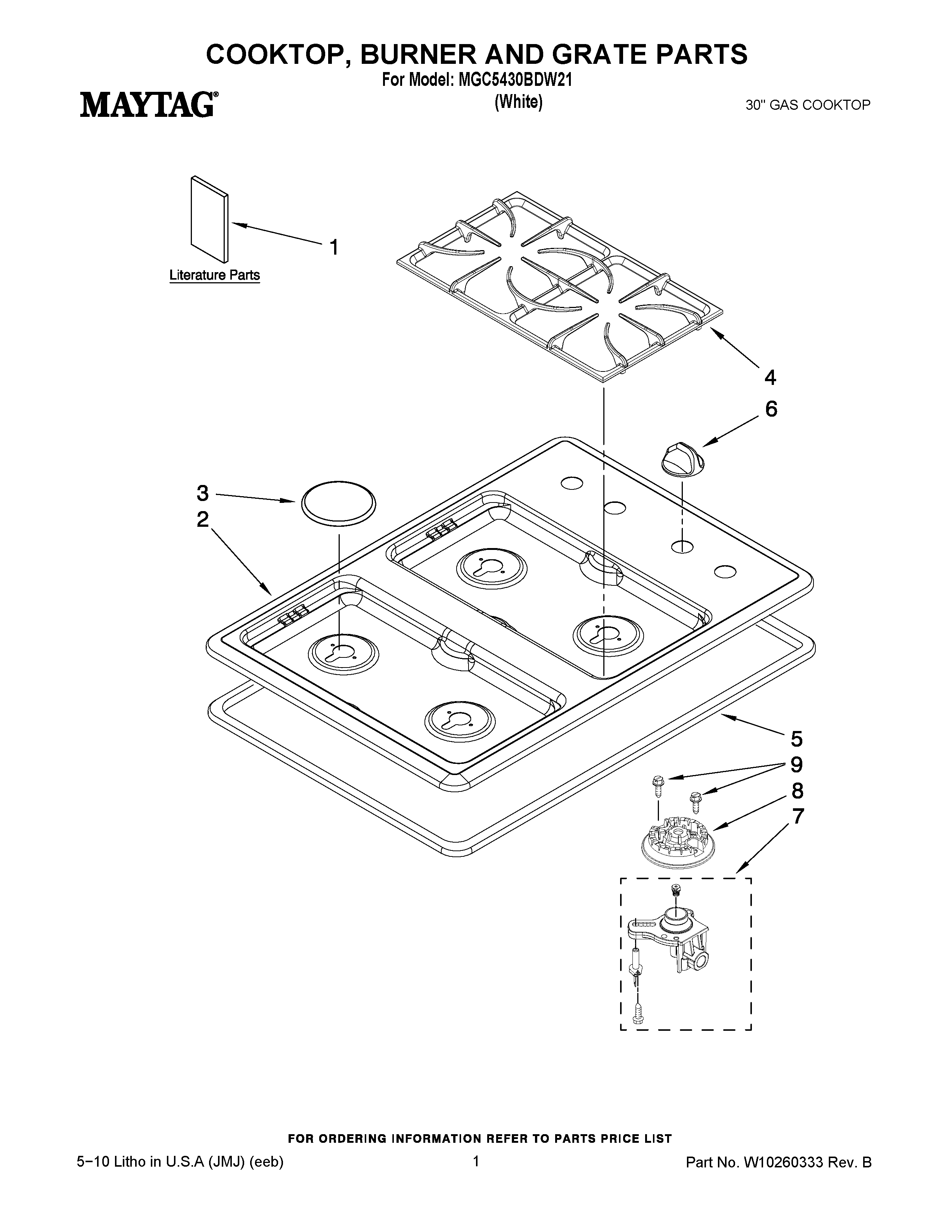

MGC5430BDW21 01 – COOKTOP, BURNER AND GRATE PARTS

MGC5430BDW21 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC5430BDW21 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY 8104P828-60
1MAY 8112P338-60
1MAY 8101P582-60
2MAY 2001F191-81
3MAY W10237742
3MAY W10237745
3MAY W10237743
4Grate, Burner (Grey)
5MAY 8270P107-60
6MAY 7733P490-60
7MAY 7527P005-60
7Holder, Orifice (LF, LR & RR)
8HEAD, BURNER (LR/RR/LF)
9WP3368921 Whirlpool Screw
