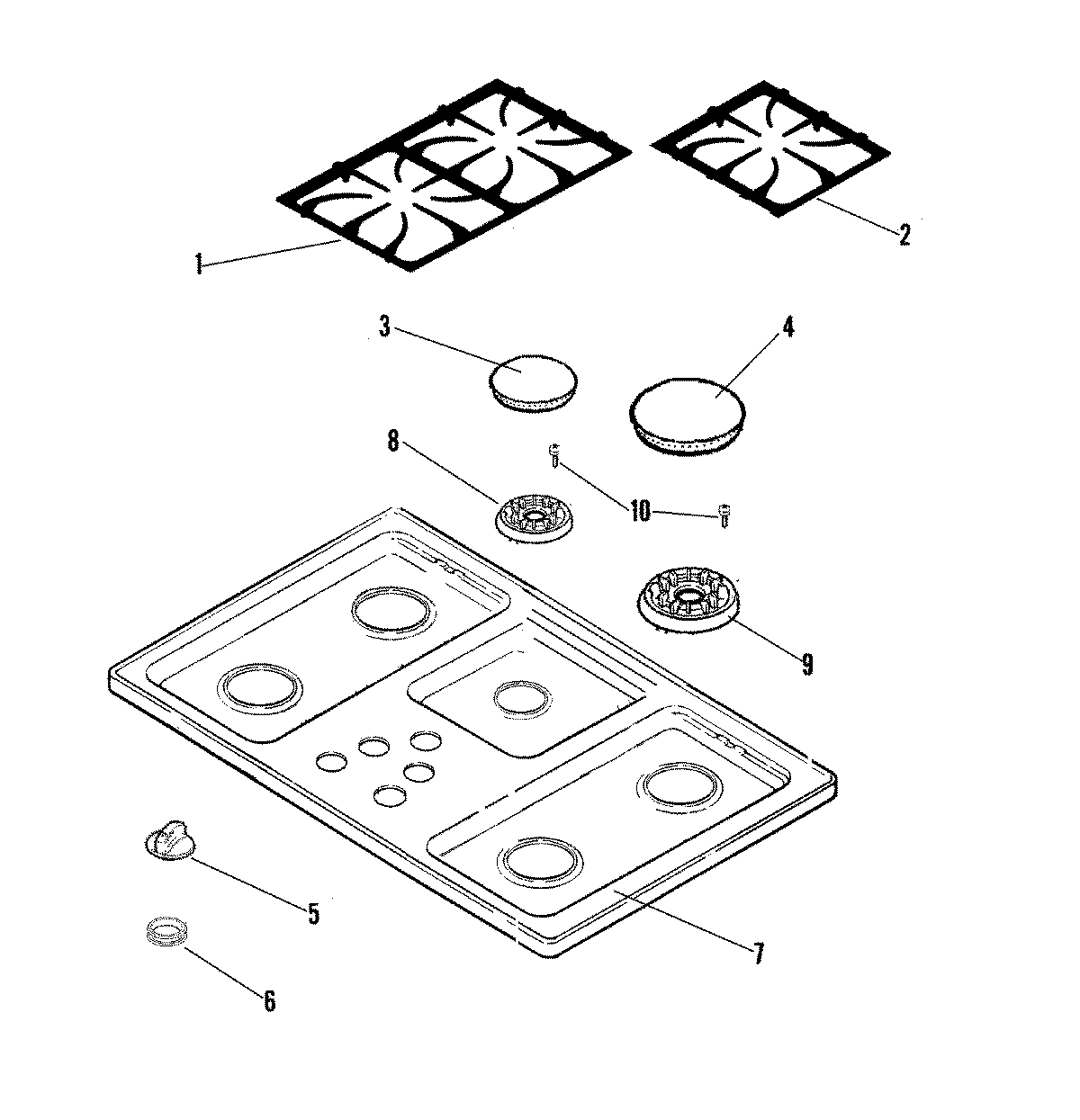

MGC5536BDB 03 – TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 74007789
2	W10919249 Whirlpool Burner Grate Foot
2	MAY 74007808
3	WP8284669 Whirlpool Burner Cap
4	Cap, Burner (12.5K RF, LR)
5	WP74011287 Whirlpool Burner Knob
6	WP74007705 Whirlpool Grommet
7	MAY 74007802
8	WPW10406243 Whirlpool Burner Head Auxiliary 6K
9	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
10	WP3368921 Whirlpool Screw
