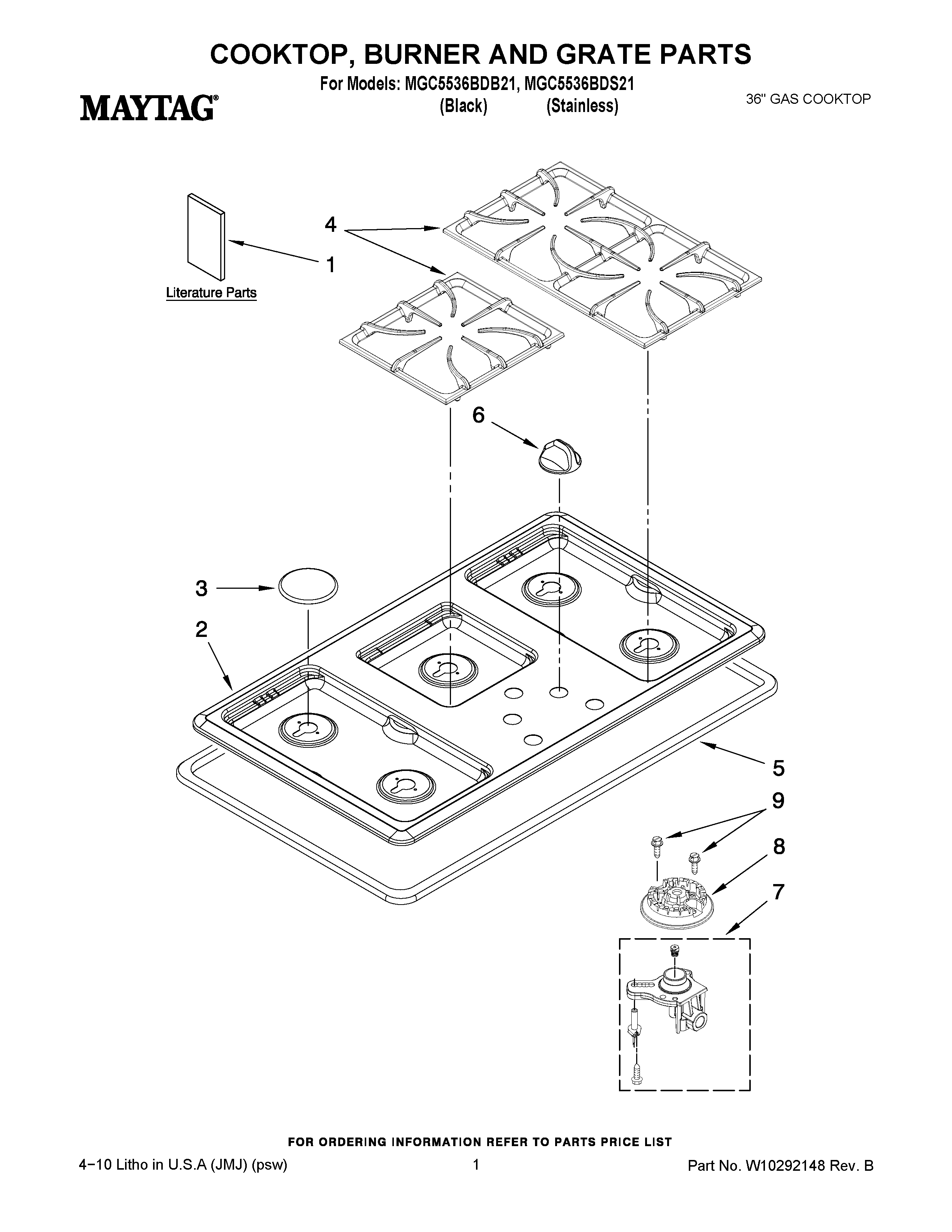

MGC5536BDB21 01 – COOKTOP, BURNER AND GRATE PARTS

MGC5536BDB21 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC5536BDB21 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY 8112P338-60
1Wiring Diagram (English)
1MAY W10205174
1TIPS, SAFE COOKING (FRENCH)
1MAY 8101P582-60
2MAY 2001F179-55
2MAY 2001F178-09
3CAP, BURNER (LR & RF)
3CAP, BURNER (LF & RR)
4MAY 7518P403-60
4MAY 7518P397-60
5MAY 8270P107-60
6MAY 7733P489-60
7Holder, Orifice (LF, LR & RR)
7ORIFICE HOLDER (9.5K) (RIGHT REAR)
7HOLDER, ORIFICE ((RR))
7ORIFICE HOLDER (12K) (LEFT FRONT)
8HEAD, BURNER (LR/RR/LF)
8HEAD, BURNER CTR.
9WP3368921 Whirlpool Screw
