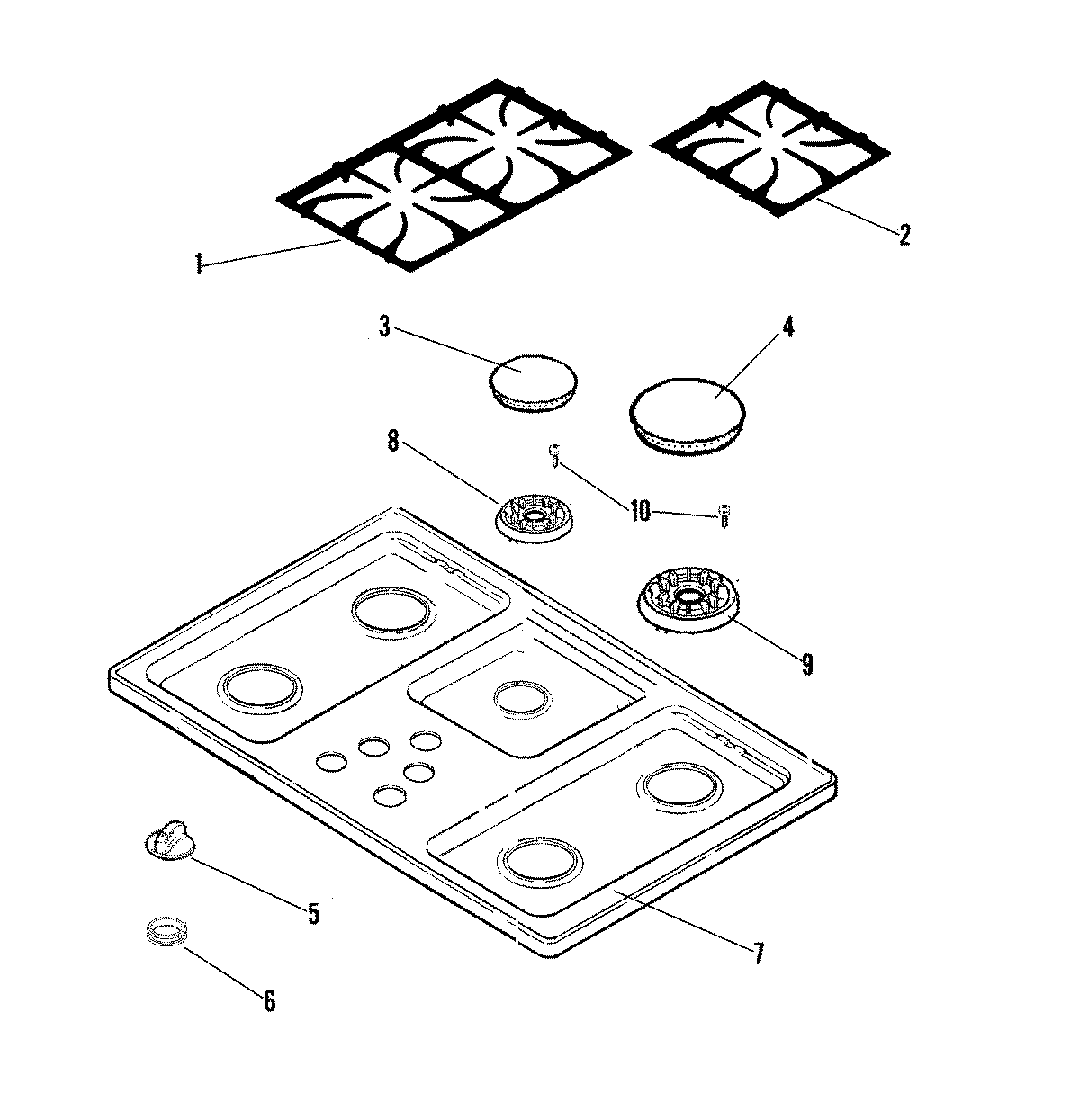

MGC5536BDW 03 – TOP ASSEMBLY

MGC5536BDW 03 – TOP ASSEMBLY

Written by

in

MGC5536BDW 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74007790
2W10919249 Whirlpool Burner Grate Foot
2MAY 74007809
3CAP, BURNER (SMR-GRY)
4WP74007752 Whirlpool Burner Cap (Medium Gray)
5WP74011276 Whirlpool Knob Burner
6WP74007705 Whirlpool Grommet
7MAY 74007805
8WPW10406243 Whirlpool Burner Head Auxiliary 6K
9WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
10WP3368921 Whirlpool Screw
