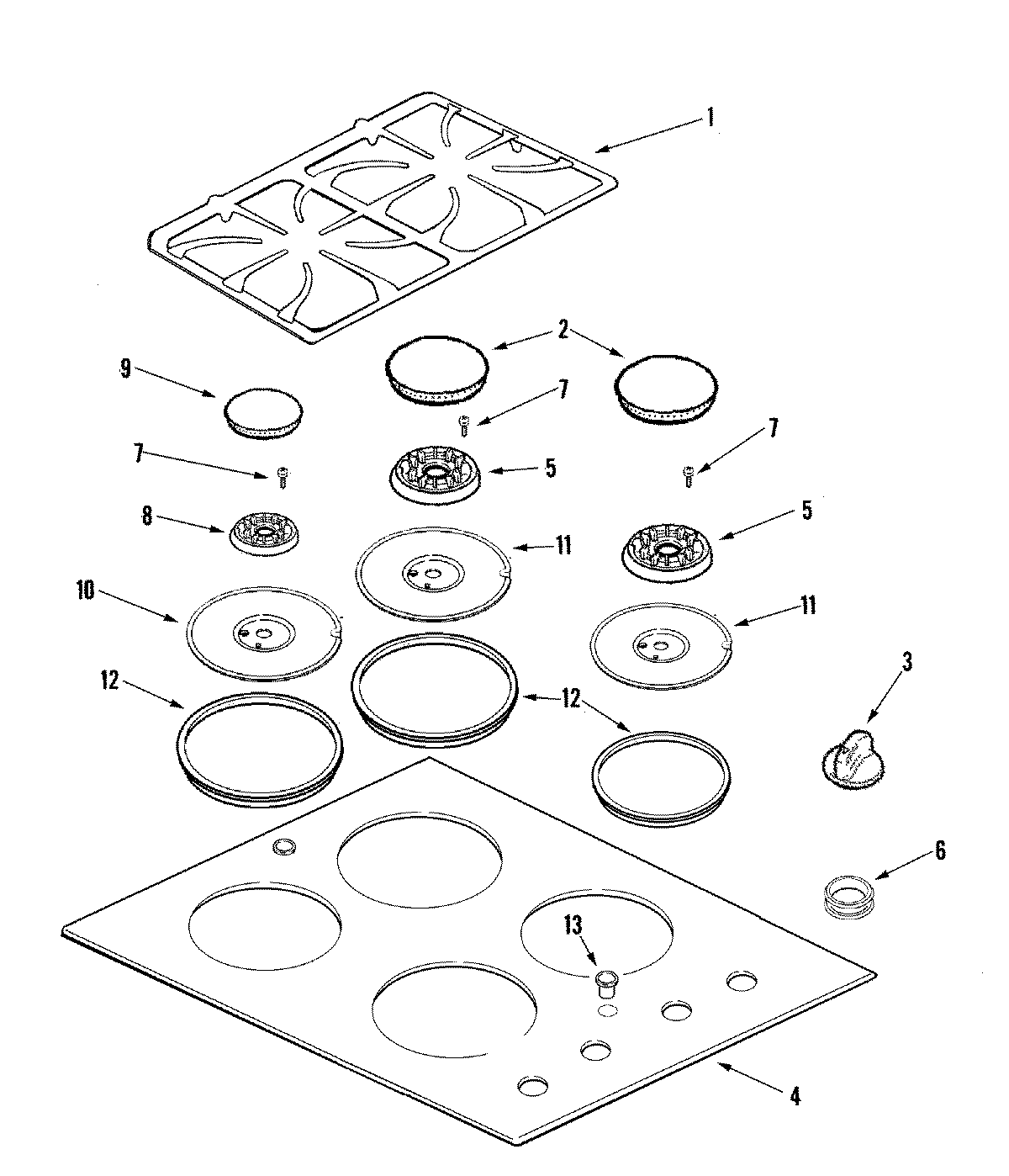

MGC6430BDB 03 – T0P ASSEMBLY

Products

Position	Product
1	MAY 74008044
1	W10919249 Whirlpool Burner Grate Foot
2	WP74007925 Whirlpool Burner Cap
3	WP74011287 Whirlpool Burner Knob
4	MAY 12400041
4	MAY 74008055
5	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
6	MAY 8008P039-60
7	WP3368921 Whirlpool Screw
8	WPW10406243 Whirlpool Burner Head Auxiliary 6K
9	WP3191898 Whirlpool Surface Burner Cap Black
10	MAY 74008039
11	MAY 74008041
12	MAY 8270P099-60
13	MAY 74007982
13	MAY 74007981
