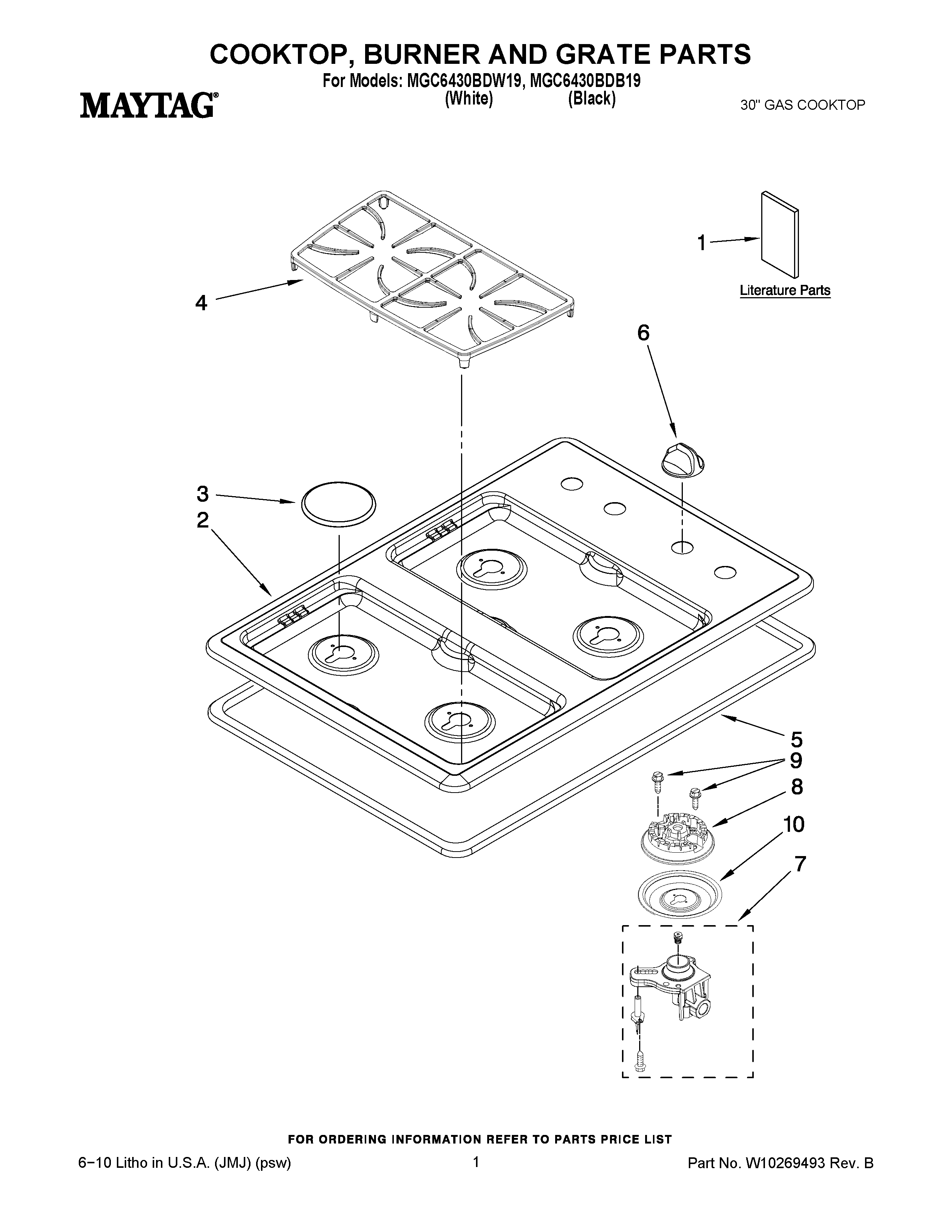

MGC6430BDW19 01 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
MGC6430BDW19 01 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
1
TIPS, SAFE COOKING (ENGLISH)
1
TIPS, SAFE COOKING (FRENCH)
1
USE & CARE GUIDE
1
MAY 8101P595-60
1
MAY 8104P828-60
2
MAY 5705M241-81
2
MAY 5705M241-09
3
CAP, BURNER (BLACK (3))
3
CAP, BURNER (GREY (1))
3
CAP, BURNER (BLACK (1))
3
CAP, BURNER (GREY (3))
4
MAY 7518P274-60
4
MAY 7518P277-60
5
MAY 8270P188-60
6
MAY 7733P489-60
6
MAY 7733P490-60
7
HOLDER, ORIFICE ((RR))
7
ORIFICE HOLDER (9.5K) (RIGHT REAR)
7
ORIFICE HOLDER (12K) (LEFT FRONT)
8
HEAD, BURNER CTR.
8
HEAD, BURNER (LR/RR/LF)
9
WP3368921 Whirlpool Screw
10
BLK DRIP BOWLS (1)
10
GRY DRIP BOWLS (1)
10
BLK DRIP BOWLS (1)
10
GRY DRIP BOWLS (3)
←
