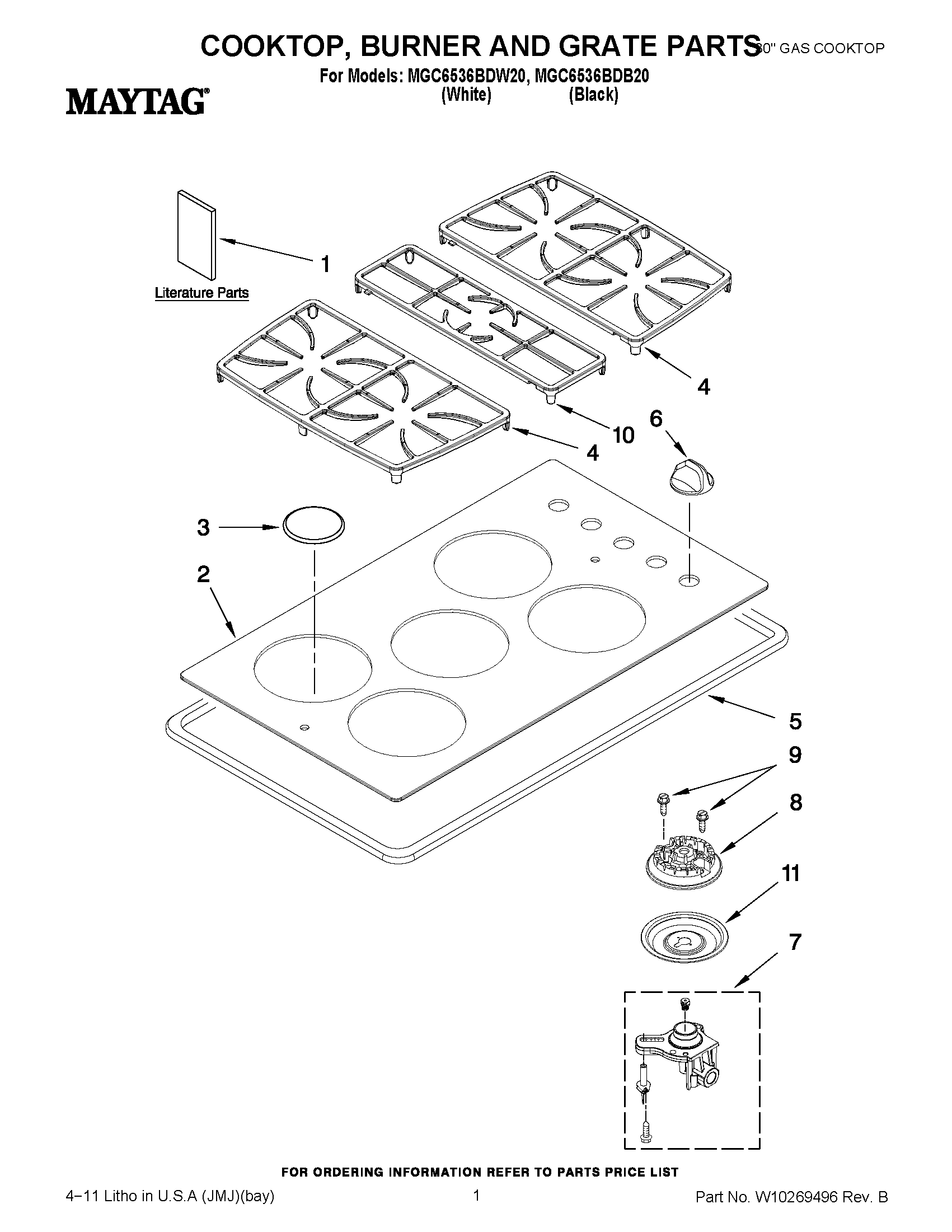

MGC6536BDB20 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY 8101P595-60
1USE & CARE GUIDE
1Wiring Diagram (English)
1MAY W10205174
1TIPS, SAFE COOKING (FRENCH)
2MAY 5705M242-09
2MAY 5705M242-81
3CAP, BURNER (GREY, CTR)
3CAP, BURNER (BLACK (3))
3Cap, Burner (Grey)
3CAP, BURNER (BLACK (1))
4MAY 7518P274-60
4MAY 7518P273-60
5MAY 8270P107-60
6MAY 7733P490-60
6MAY 7733P489-60
7Holder, Orifice (LF, LR & RR)
7HOLDER, ORIFICE ((RR))
7ORIFICE HOLDER (9.5K) (RIGHT REAR)
7ORIFICE HOLDER (12K) (LEFT FRONT)
8HEAD, BURNER CTR.
8HEAD, BURNER (LR/RR/LF)
9WP3368921 Whirlpool Screw
10MAY 7518P275-60
10MAY 7518P276-60
11BLK DRIP BOWLS (1)
11BLK DRIP BOWLS (1)
