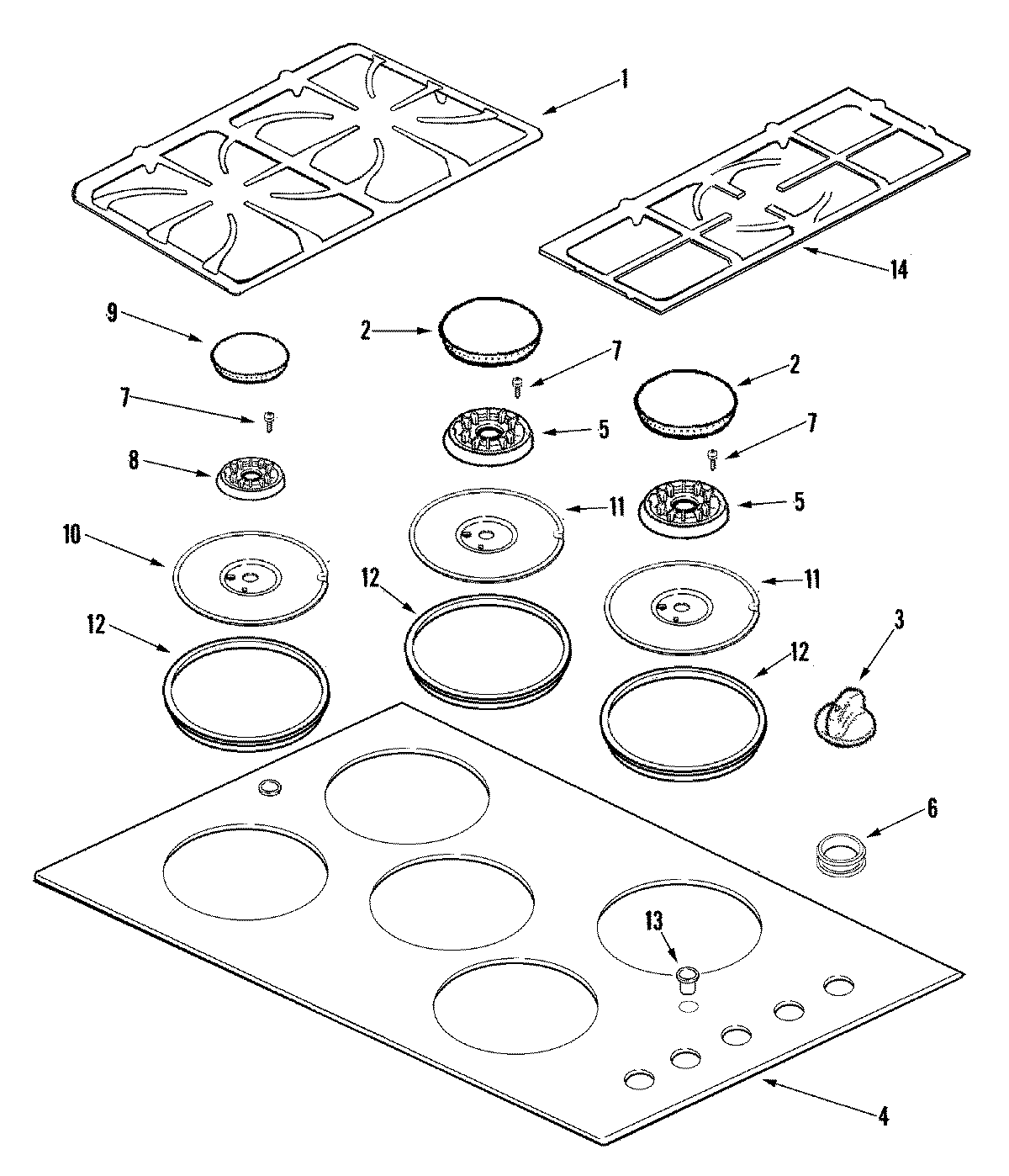

MGC6536BDW 03 – T0P ASSEMBLY

MGC6536BDW 03 – T0P ASSEMBLY

Written by

in

MGC6536BDW 03 – T0P ASSEMBLY

Products

PositionProduct
1W10919249 Whirlpool Burner Grate Foot
1MAY 74008043
2WP74007752 Whirlpool Burner Cap (Medium Gray)
3WP74011276 Whirlpool Knob Burner
4MAY 74008052
5WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
6MAY 8008P039-60
7WP3368921 Whirlpool Screw
8WPW10406243 Whirlpool Burner Head Auxiliary 6K
9CAP, BURNER (SMR-GRY)
10MAY 74008040
11MAY 74008042
12MAY 12400041
13MAY 74007982
13MAY 74007980
14MAY 74008045
