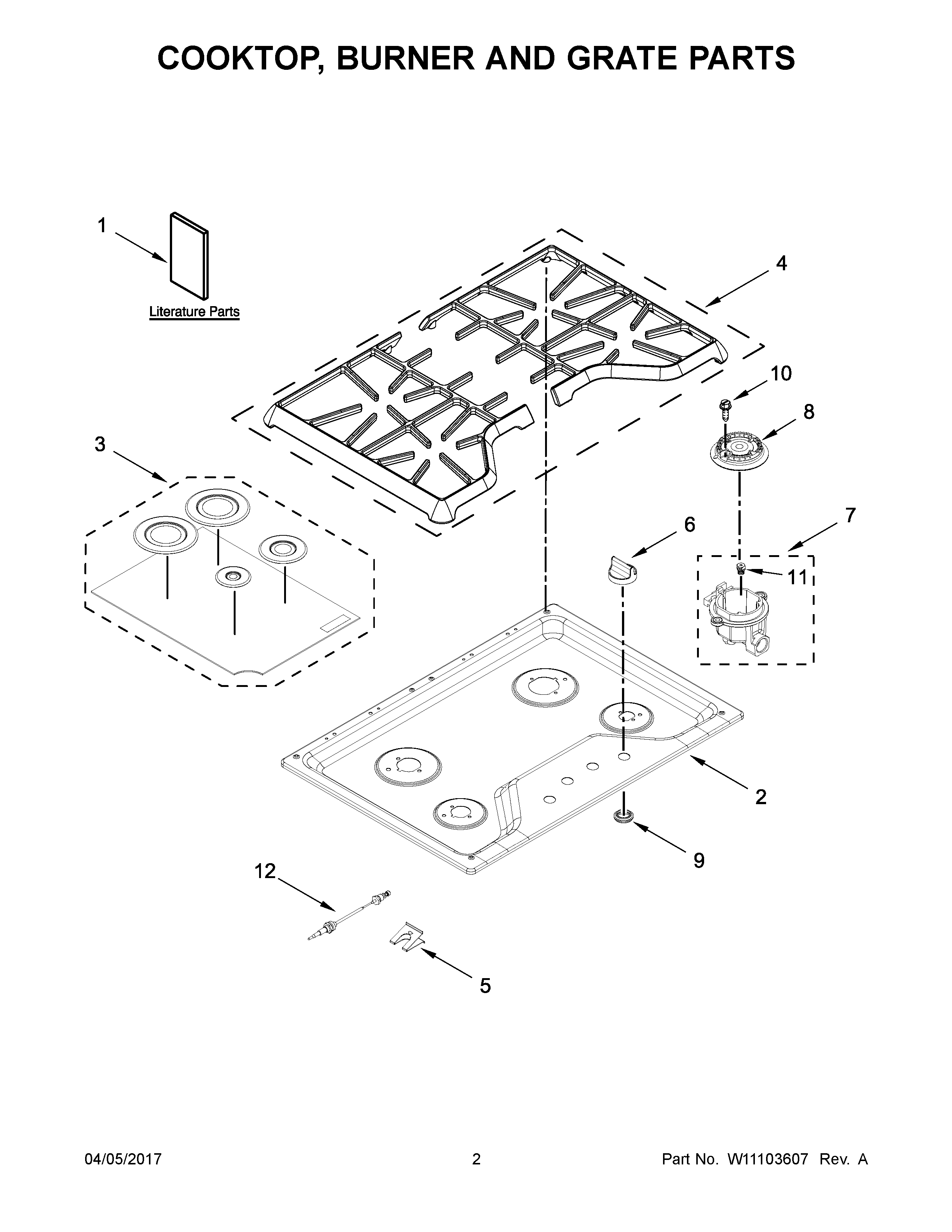

MGC7430DB00 02 – COOKTOP, BURNER AND GRATE PARTS

MGC7430DB00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC7430DB00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIMAY W10676661
NICORD-POWER
NICLIP, HARNESS
NILINER (NOT A SERVICEABLE PART)
NIRELIEF, STRAIN
NIHARNESS (SWITCH), MAIN
1EINSTRUCTIONS, CONVERSION
1CTIPS, SAFE COOKING (ENGLISH)
1AMAY W10672375
1BMAY W10648065
1MAY W10597144
1DTIPS, SAFE COOKING (FRENCH)
2MAY W10597071
3MAY W10597129
4MAY W10594445
5SPRING, ELECTRODE (RR)
6MAY W10895114
7CHOLDER,ORIFICE (9.1K) (RIGHT REAR)
7AMAY W10609591
7BHOLDER, ORIFICE (12K) (RIGHT FRONT)
7MAY W10594399
8MAY 8286813
8BHEAD, BURNER (RIGHT REAR)
8AHEAD, BURNER (LEFT FRONT & RIGHTFRONT)
9MAY W10625915
10MAY 8286921
11BORIFICE (RIGHT FRONT)
11CORIFICE (RIGHT REAR)
11MAY W10652711
11AMAY W10609592
12MAY W10541842
12AMAY W10541843
