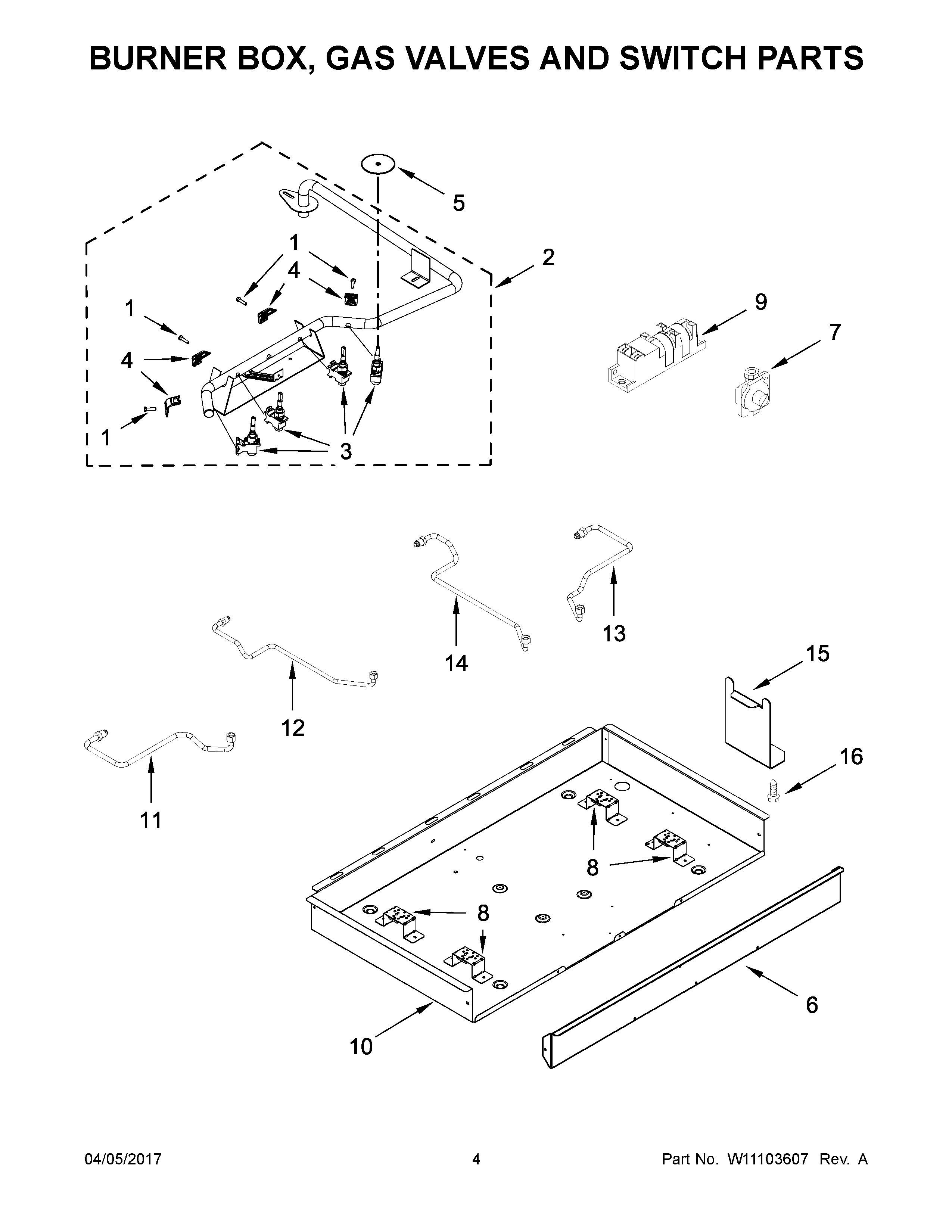

MGC7430DB00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

MGC7430DB00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

MGC7430DB00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
1MAY 8287057
2MAY W10594394
3MAY W10597157
3BMAY W10594393
3AMAY W10594391
4MAY 8287055
5SEAL, SWITCH SHAFT
6MAY W10614950
7REGULATOR, PRESSURE
8MAY W10594429
9MAY W10475148
10LINER (NOT A SERVICEABLE PART)
11MAY W10566287
12MAY W10566288
13MAY W10566290
14MAY W10566289
15MAY 3801F935-51
16SCREW No.10 X 2
