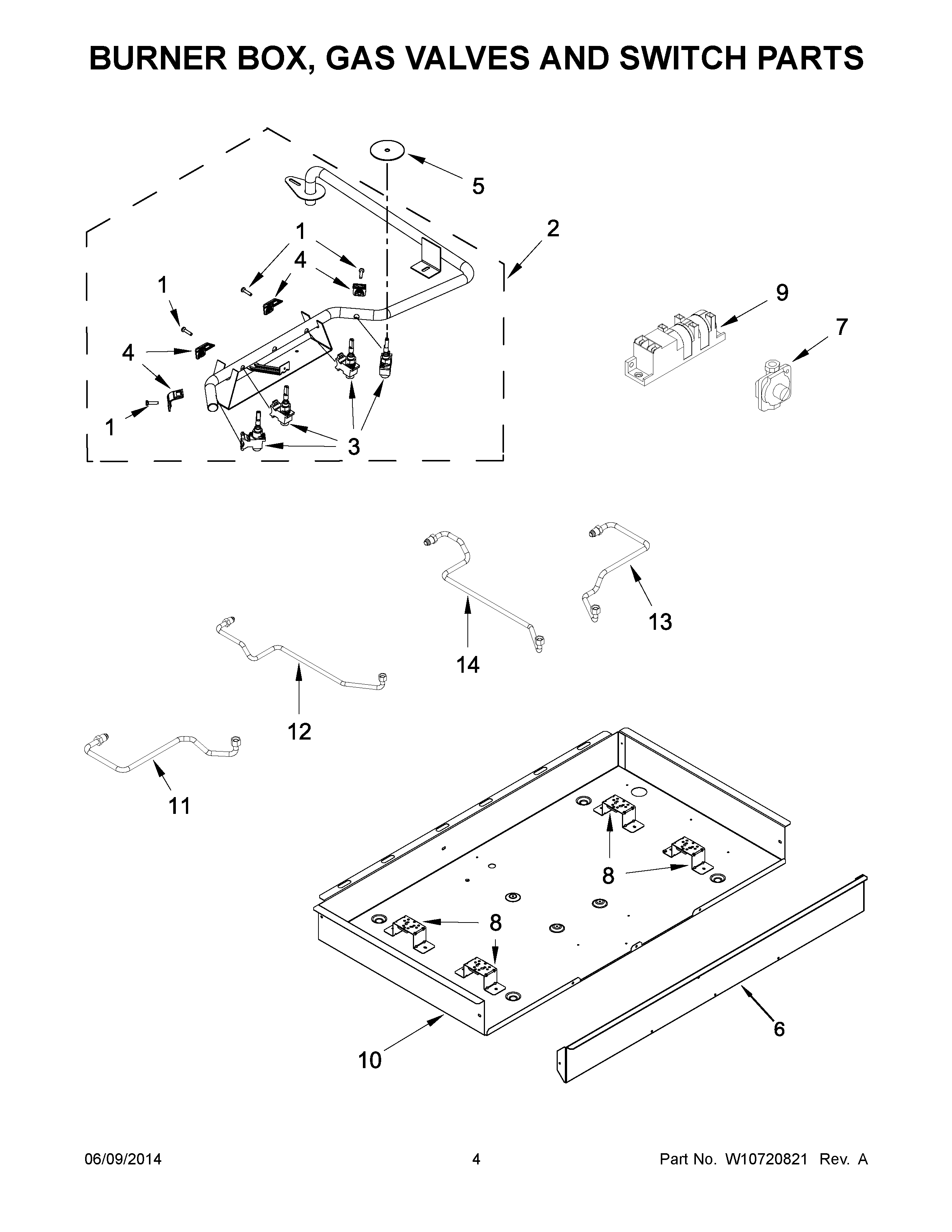

MGC7430DE00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

MGC7430DE00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

MGC7430DE00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NICLIP, HARNESS
NIMAY W10558556
NICORD-POWER
NIMAY W10676661
NIRELIEF, STRAIN
NILINER (NOT A SERVICEABLE PART)
1MAY 8287057
2MAY W10594394
3MAY W10594391
3MAY W10594393
3MAY W10597157
4MAY 8287055
5SEAL, SWITCH SHAFT
6MAY W10614950
7REGULATOR,PRESSURE
8MAY W10594429
9MAY W10475148
10BOX-BURNER
11MAY W10566287
12MAY W10566288
13MAY W10566290
14MAY W10566289
