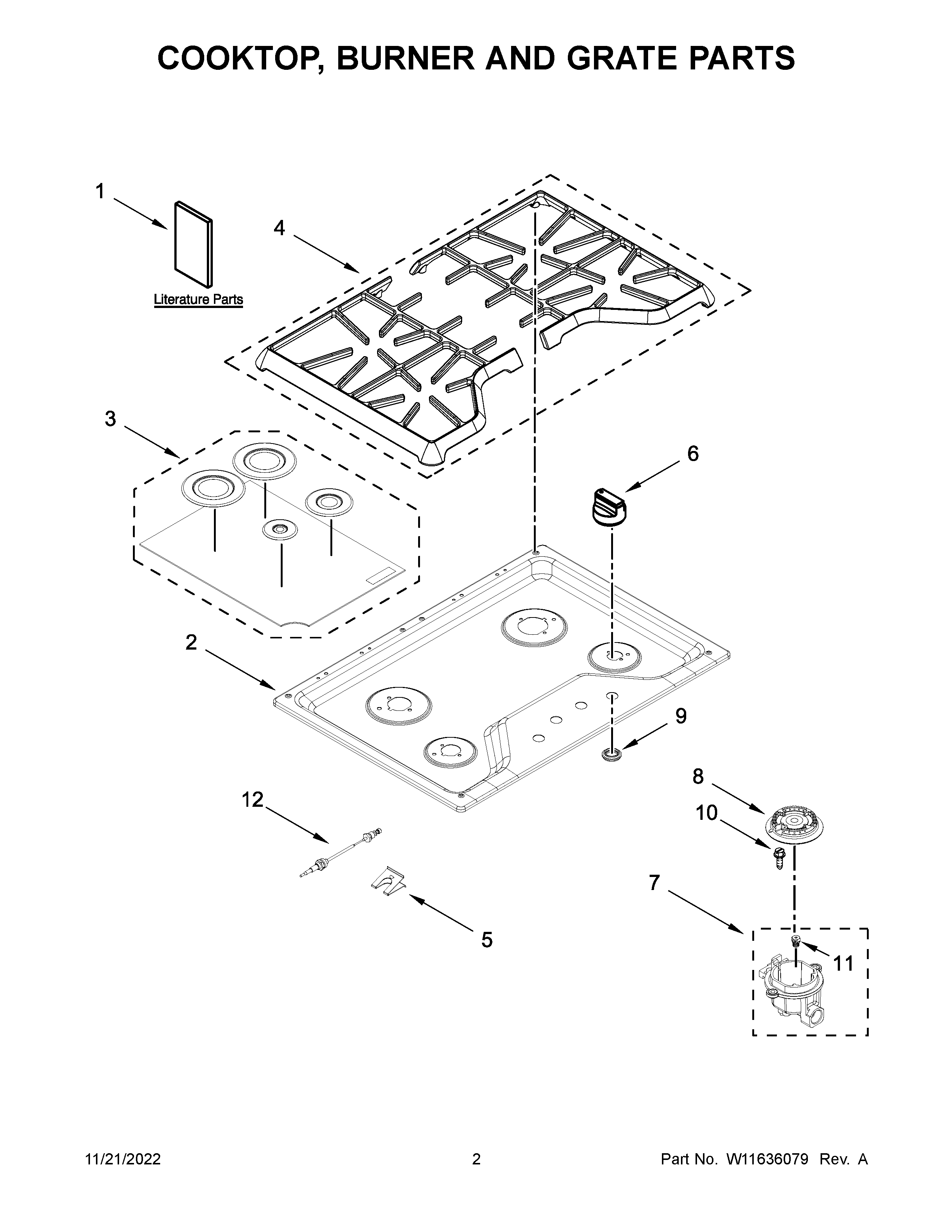

MGC7430DS05 02 – COOKTOP, BURNER AND GRATE PARTS

MGC7430DS05 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC7430DS05 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1OWNER'S MANUAL
1AQUICK START GUIDE
2W10597073 Whirlpool Cooktop Assembly
3WPW10597129 Whirlpool Burner Cap
4W11413073 Whirlpool Grate Kit
58286863 Whirlpool Oven Clip
6W11729014 Whirlpool Knob
7CW10594402 Whirlpool Orifice Holder
7AW10609591 Whirlpool Orifice Holder
7W10594399 Whirlpool Orifice Holder
7BW10597159 Whirlpool Orifice Holder
8BWP8286814 Whirlpool Burner Head
8AWP8286815 Whirlpool Burner Head
8WP8286813 Whirlpool Burner Head
9W11206740 Whirlpool Grommet
10W11676349 Whirlpool Screw
11BW10791079 Whirlpool Orifice Spud
11CW10652710 Whirlpool Orifice Spud
11W10791082 Whirlpool Spud Orifice
11AW10791073 Whirlpool Gas Orifice Spud
12W11507531 Whirlpool Surface Igniter Assembly
12AW11507532 Whirlpool Surface Igniter
