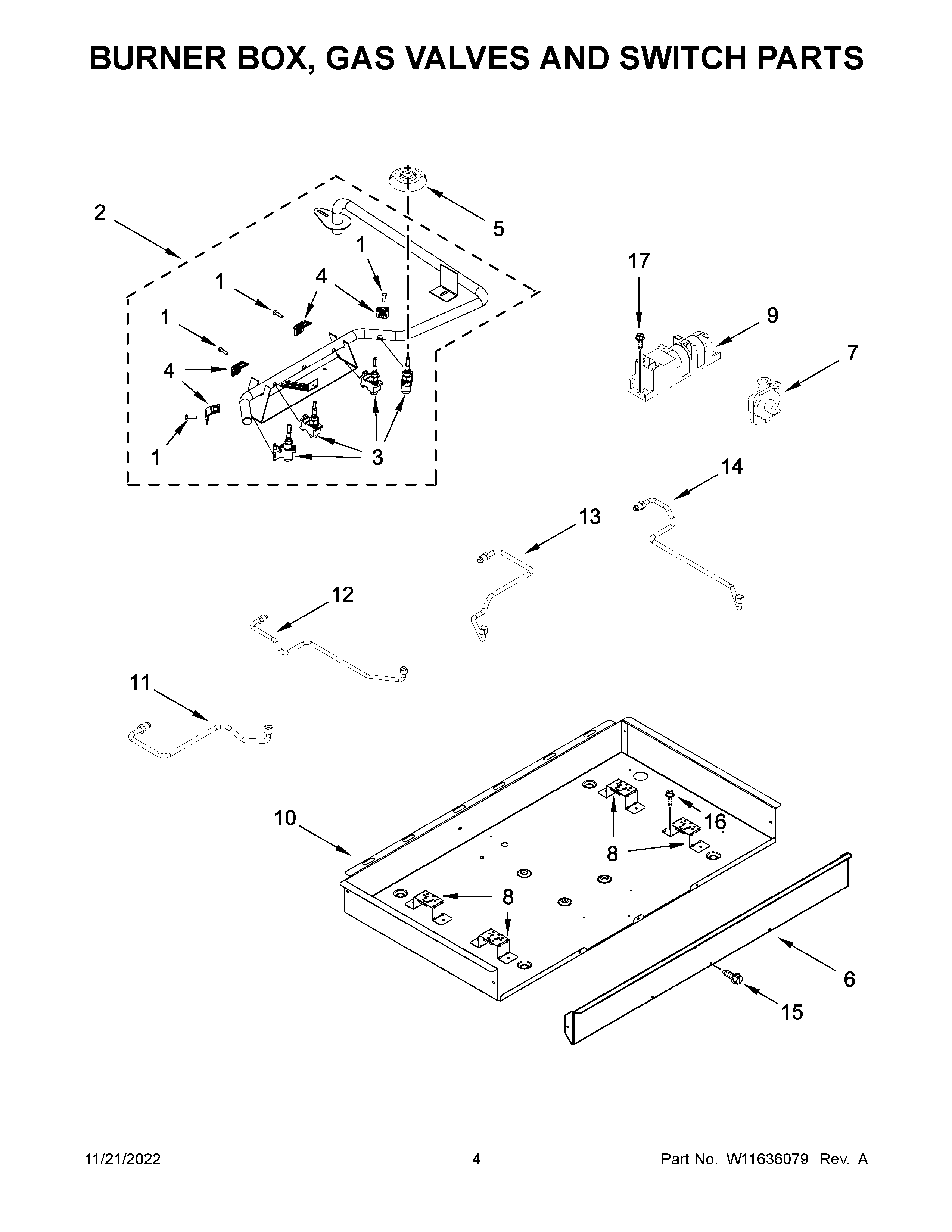

MGC7430DS05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NIACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEANING
NIW11637584 Whirlpool Wire Harness
NIW11561439 Whirlpool Wire Harness
NIW10676661 Whirlpool Cooktop Spud Orifice
NI16515 Whirlpool Clip
NISCREW
NIBRACKET, MOUNTING
NIW10392003 Whirlpool Power Cord
NIW10132200 Whirlpool Strain Relief
NICABINET (NOT A SERVICEABLE PART)
NIWP3400015 Whirlpool Screw
18287057 Whirlpool Oven Screw
2W10594394 Whirlpool Manifold
3BW10859922 Whirlpool Gas Valve
3AW11256503 Whirlpool Gas Valve Assembly
3W10597157 Whirlpool Gas Valve
48287055 Whirlpool Oven Mounting Bracket
5W11507167 Whirlpool Switch Seal
6PANEL, FRONT
7W11087445 Whirlpool Pressure Regulator
8W10594429 Whirlpool Mounting Bracket
9MODULE-SPK
11W10566287 Whirlpool Gas Tubing
12W10566288 Whirlpool Gas Tubing
13W10566290 Whirlpool Gas Tubing
14W10566289 Whirlpool Gas Tubing
15WP3196557 Whirlpool Screw
16W10443110 Whirlpool Screw
17SCREW
