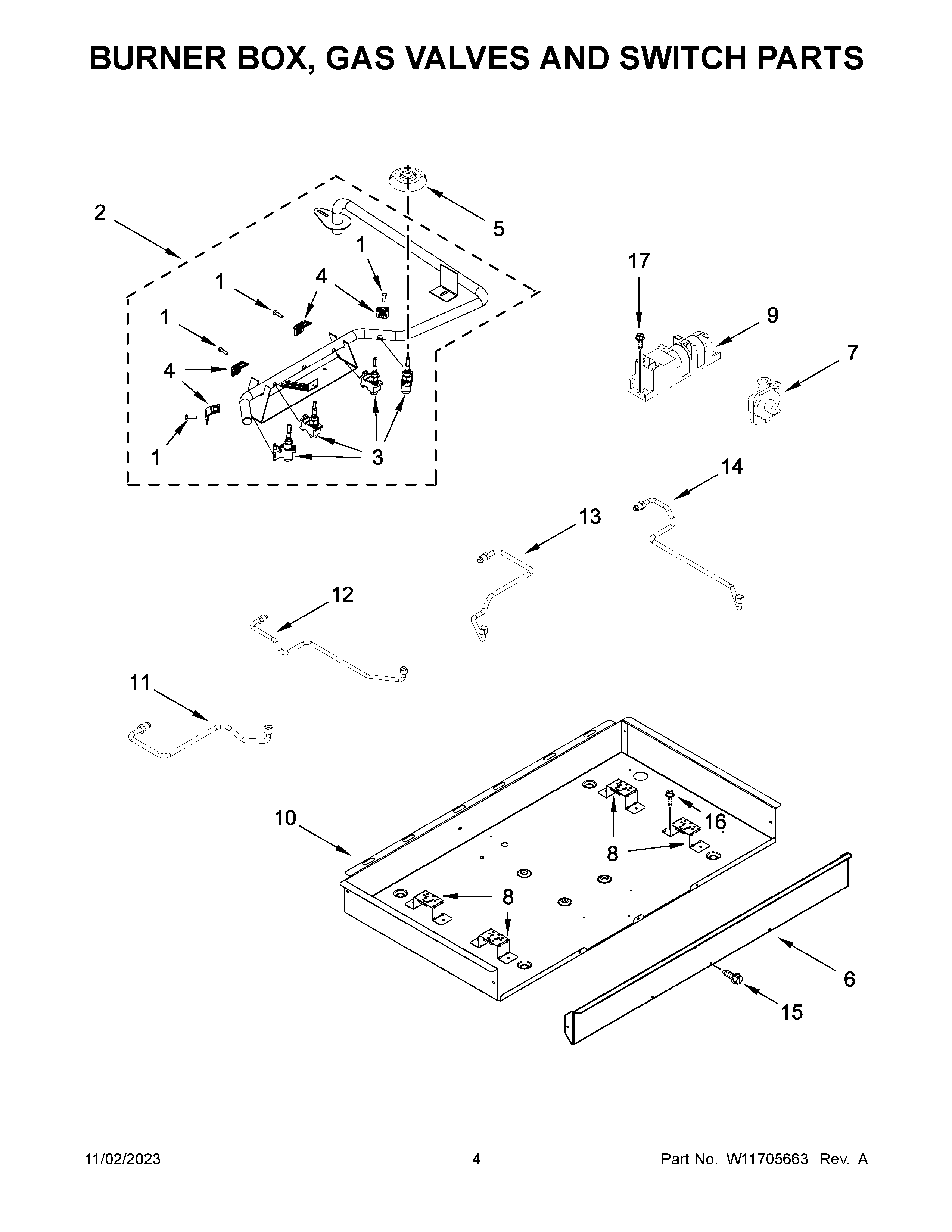

MGC7430DS06 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	W10724598 Whirlpool Range Premium Knob
1	8287057 Whirlpool Oven Screw
2	MANIFOLD ASSEMBLY
3A	VALVE, SINGLE (LEFT REAR)
3	VALVE, SINGLE (LEFT FRONT)
3B	W11706290 Whirlpool Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	W11507167 Whirlpool Switch Seal
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	MODULE-SPK
10	BOX, BURNER
11	W10566287 Whirlpool Gas Tubing
12	W10566288 Whirlpool Gas Tubing
13	W10566290 Whirlpool Gas Tubing
14	W10566289 Whirlpool Gas Tubing
15	WP3196557 Whirlpool Screw
16	W10443110 Whirlpool Screw
17	SCREW
