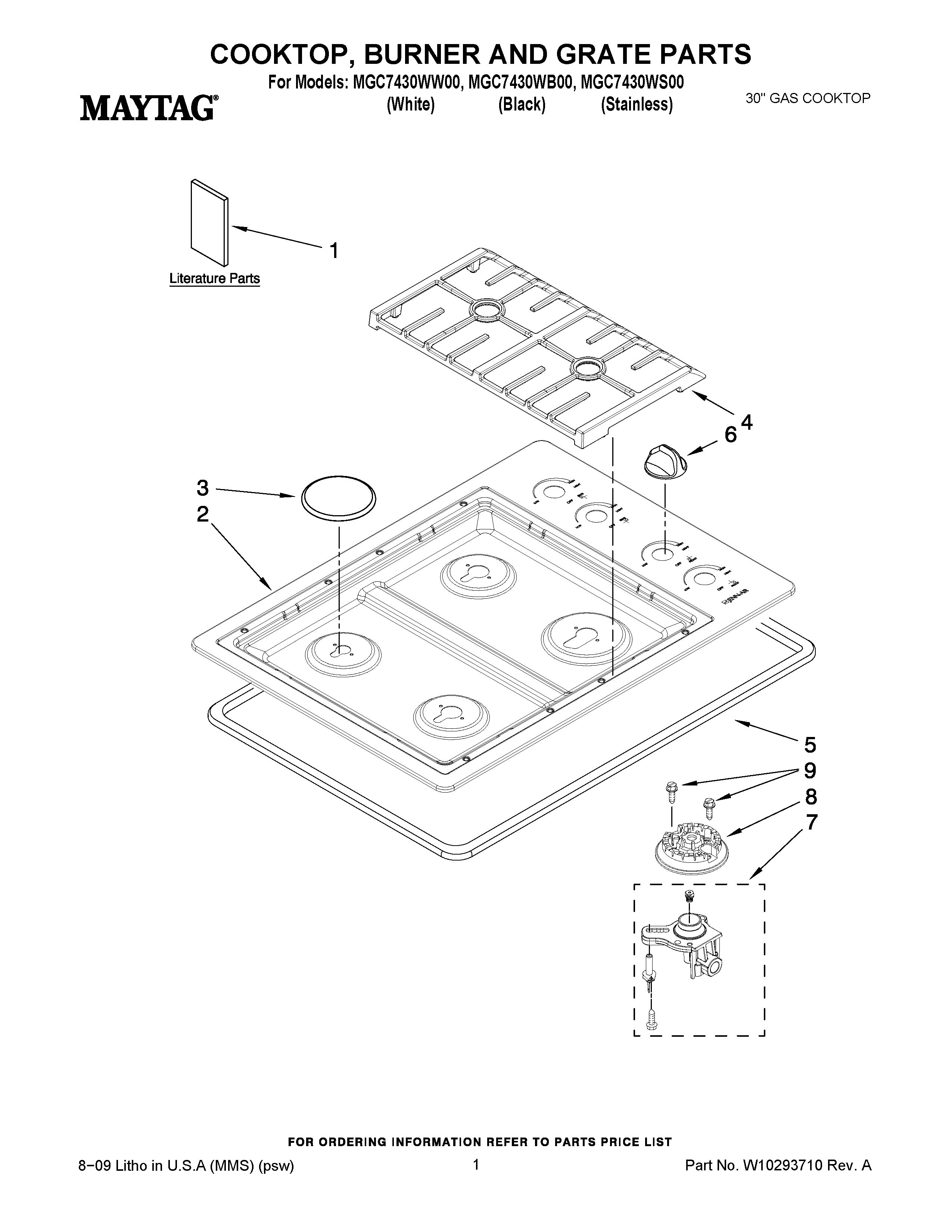

MGC7430WW00 01 – COOKTOP, BURNER AND GRATE PARTS

MGC7430WW00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC7430WW00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10268418
1MAY W10268391
1MAY W10268392
1TIPS, SAFE COOKING (FRENCH)
2MAY W10244701
2MAY W10244702
2MAY W10244700
3CAP, BURNER (KIT OF 4) (BLACK)
3CAP, BURNER (KIT OF 4) (WHITE)
4GRATES, BURNER (SET OF 2) (BLACK(L/R))
4GRATES, BURNER (SET OF 2) (GREY(L/R))
5MAY 8270P105-60
6KNOB, CONTROL (5) (STAINLESS)
6MAY W10244629
6MAY W10244630
7HOLDER, ORIFICE ((RR))
7ORIFICE HOLDER (9.5K) (RIGHT REAR)
7MAY W10244714
7MAY W10244711
8HEAD, BURNER (RF)
8HEAD, BURNER (LR/RR/LF)
8HEAD, BURNER CTR.
9SCREW
