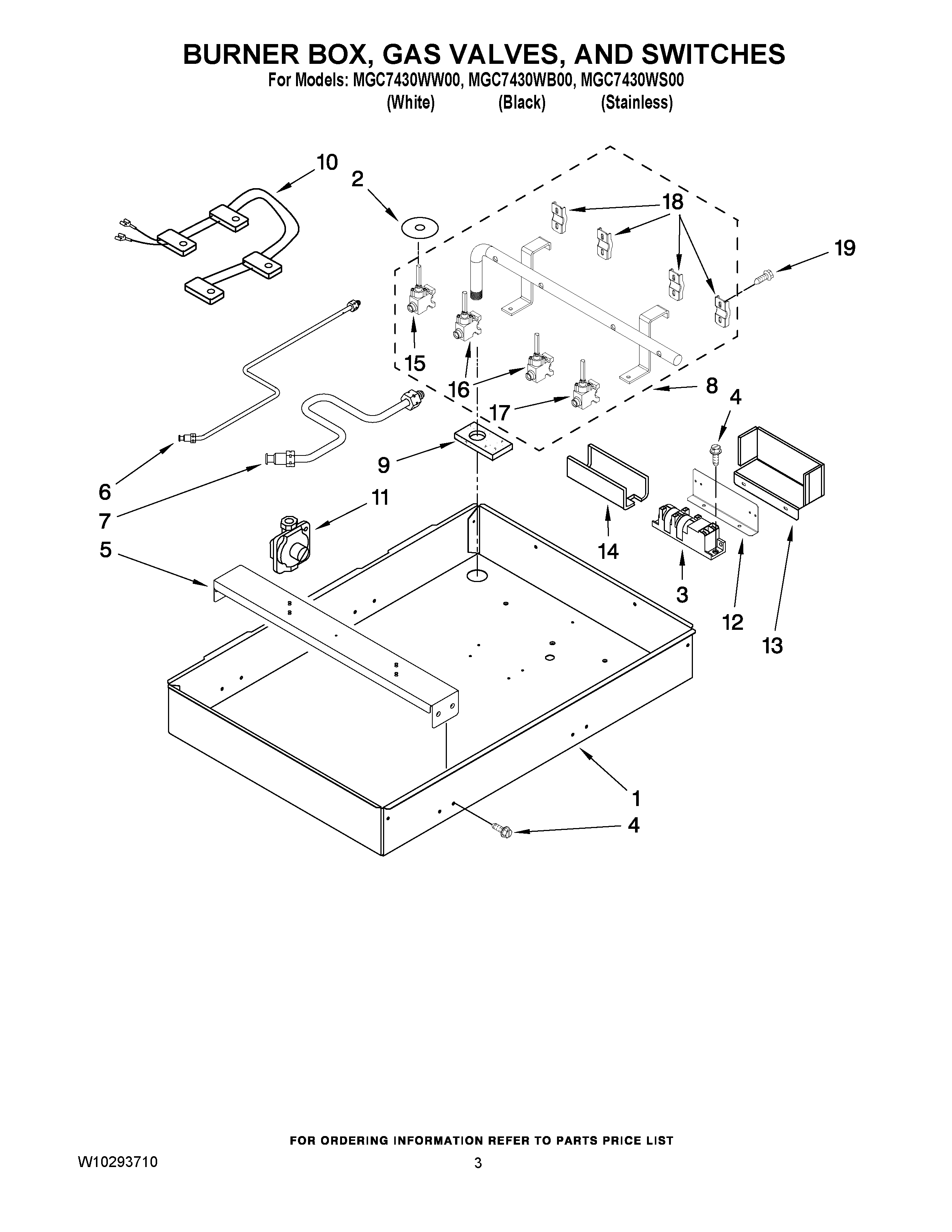

MGC7430WW00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

MGC7430WW00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

MGC7430WW00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1MAY W10268427
2Seal, Valve Shaft
3MODULE, SPARK
4MAY 7101P426- 60
5MAY 3801F848-51
6MAY 7506P375-60
7MAY 7506P374-60
8MAY W10268434
9MAY 7208P024-60
10MAY W10268397
11MAY 7510P093-60
12BRACKET, SPARK
13SHIELD, SPARK
14INSULATION, SPARK
15MAY 7502P557-60
16MAY 7502P549-60
17MAY W10268441
18MAY 8405P028-60
19MAY 7101P550-60
