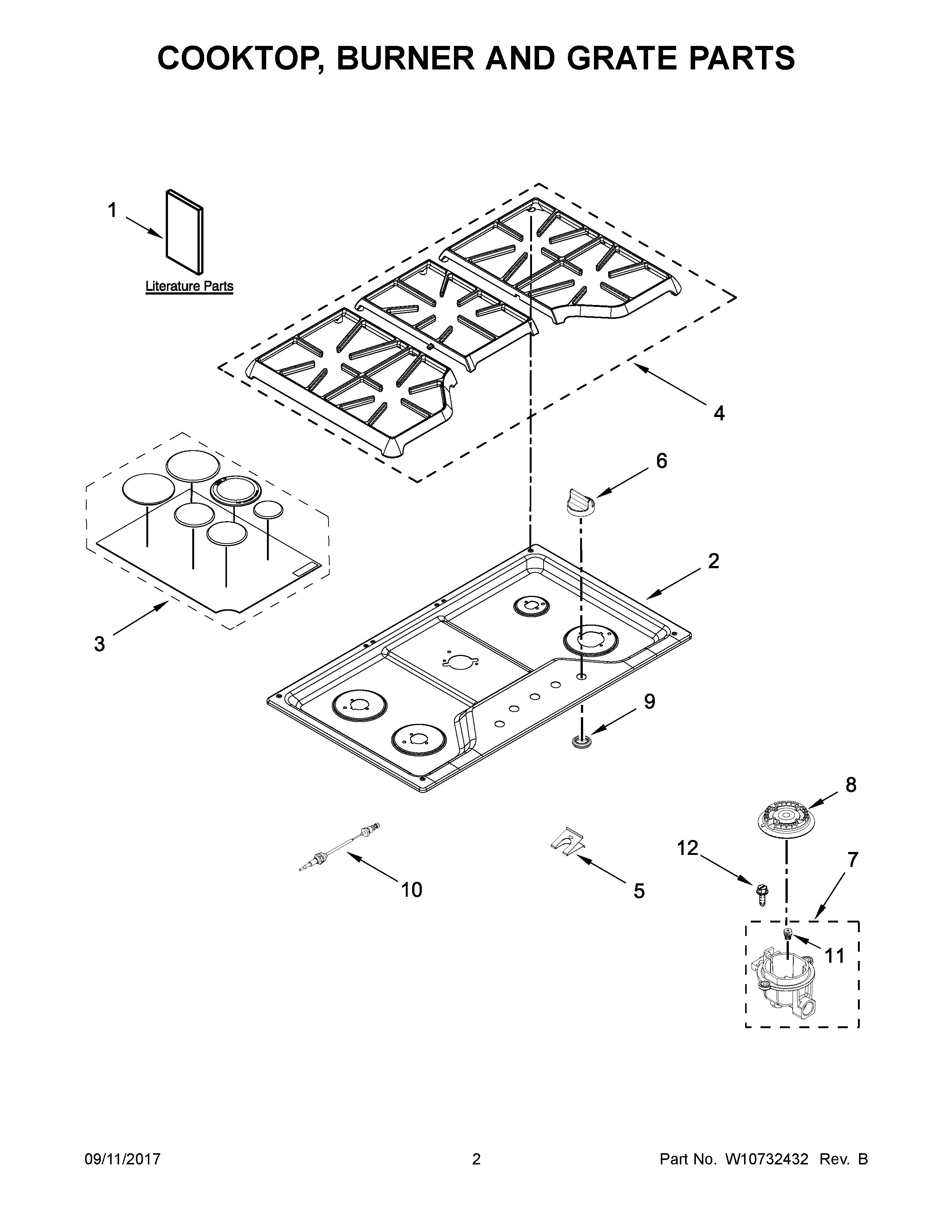

MGC7536DB00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	CORD-POWER
NI	MAY W10868535
NI	MAY W10676661
NI	RELIEF, STRAIN
NI	MAY 3801F935-51
NI	SCREW No.10 X 2
NI	LINER (NOT A SERVICEABLE PART)
1C	INSTRUCTIONS, CONVERSION
1B	MAY W10648065
1A	MAY W10672375
1	MAY W10597144
2A	COOKTOP (STAINLESS)
2	COOKTOP (BLACK)
3	KIT, BURNER CAP (BLACK)
4	MAY W10594447
5	SPRING, ELECTRODE (RR)
6	MAY W10895114
6A	MAY W10853672
7B	HOLDER, ORIFICE (12K) (RIGHT FRONT)
7C	MAY W10594399
7	HOLDER,ORIFICE (9.1K) (RIGHT REAR)
7A	MAY W10609591
8A	HEAD, BURNER (LEFT FRONT & RIGHTFRONT)
8	MAY 8286813
8B	HEAD, BURNER (RIGHT REAR)
9	MAY W10625915
10A	MAY W10541843
10	MAY W10541842
11C	MAY W10652711
11	ORIFICE (RIGHT REAR)
11A	MAY W10609592
11B	ORIFICE (RIGHT FRONT)
12	MAY W10758282
