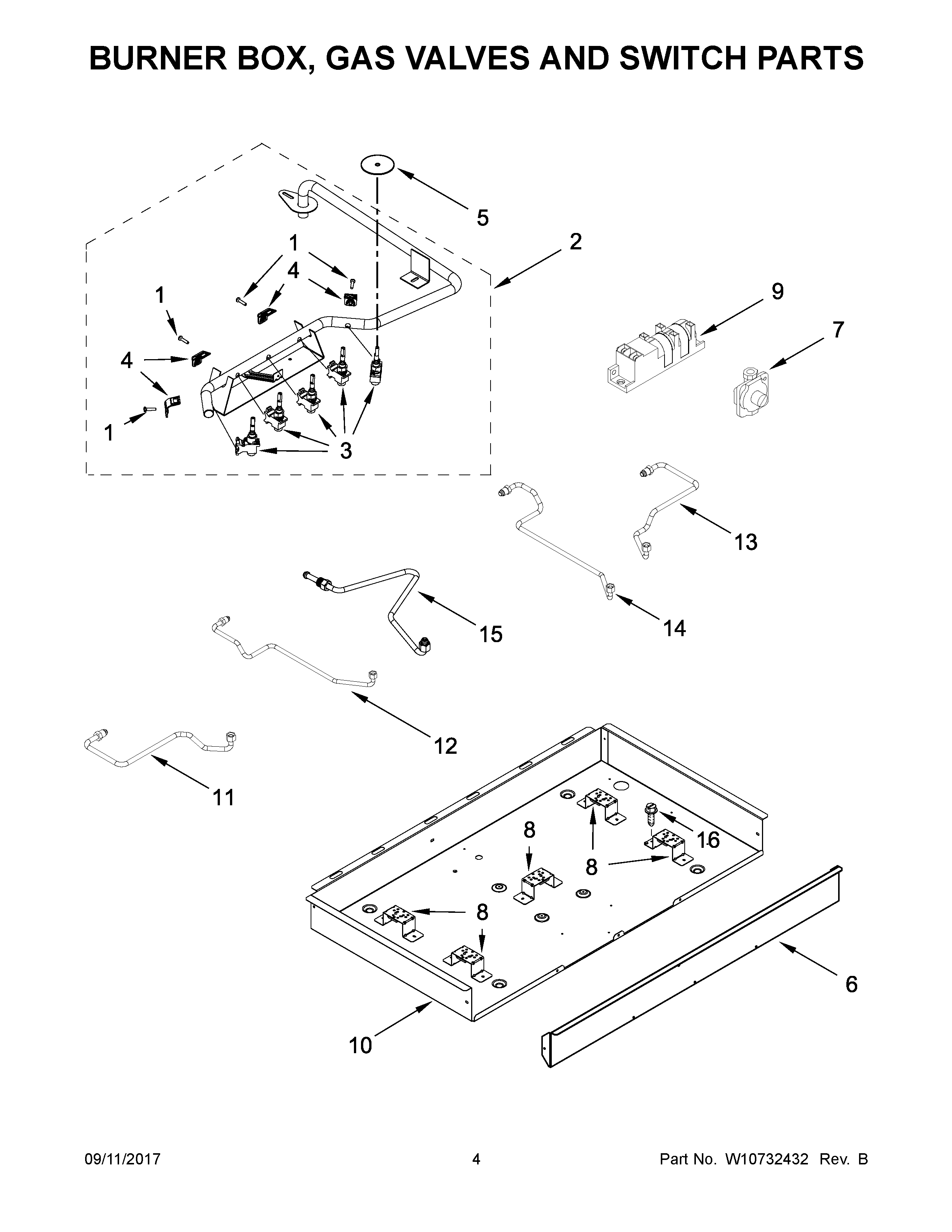

MGC7536DS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
1MAY 8287057
2ASSEMBLY, MANIFOLD
3BMAY W10594393
3AMAY W10594391
3CMAY W10597156
3MAY W10594392
4MAY 8287055
5SEAL, SWITCH SHAFT
6MAY W10614951
7REGULATOR, PRESSURE
8MAY W10594429
9MAY W10475149
10LINER (NOT A SERVICEABLE PART)
11MAY W10566305
12MAY W10566306
13MAY W10566308
14MAY W10566307
15TUBING, GAS BURNER (CENTER)
16SCREW
