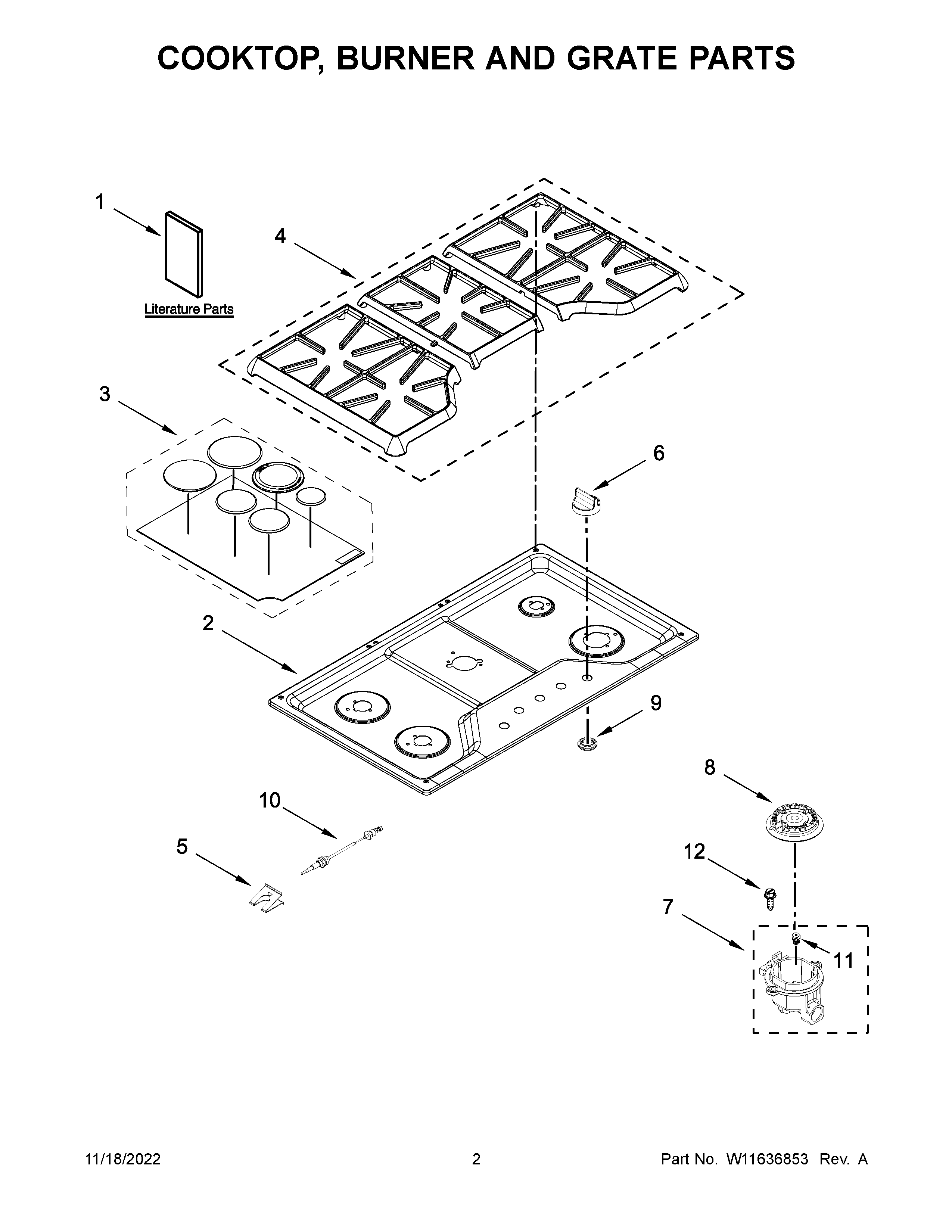

MGC7536DS05 02 – COOKTOP, BURNER AND GRATE PARTS

MGC7536DS05 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC7536DS05 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIWP3400015 Whirlpool Screw
NIW11637584 Whirlpool Wire Harness
NIW10676661 Whirlpool Cooktop Spud Orifice
NIW11561443 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NISCREW
NIBRACKET, MOUNTING
NICABINET (NOT A SERVICEABLE PART)
NIW10392003 Whirlpool Power Cord
NIW10132200 Whirlpool Strain Relief
1OWNER'S MANUAL
1AQUICK START GUIDE
2W10597077 Whirlpool Cooktop Assembly
3W10832694 Whirlpool Surface Burner Cap
4W11411592 Whirlpool Grate Kit
58286863 Whirlpool Oven Clip
6W11729014 Whirlpool Knob
7AW10609591 Whirlpool Orifice Holder
7CW10594399 Whirlpool Orifice Holder
7BW10597159 Whirlpool Orifice Holder
7W10594402 Whirlpool Orifice Holder
8AWP8286815 Whirlpool Burner Head
8BWP8286813 Whirlpool Burner Head
8WP8286814 Whirlpool Burner Head
9W11206740 Whirlpool Grommet
10AW11507532 Whirlpool Surface Igniter
10W11507531 Whirlpool Surface Igniter Assembly
11BW10791079 Whirlpool Orifice Spud
11W10652710 Whirlpool Orifice Spud
11CW10791082 Whirlpool Spud Orifice
11AW10791073 Whirlpool Gas Orifice Spud
12W11676349 Whirlpool Screw
