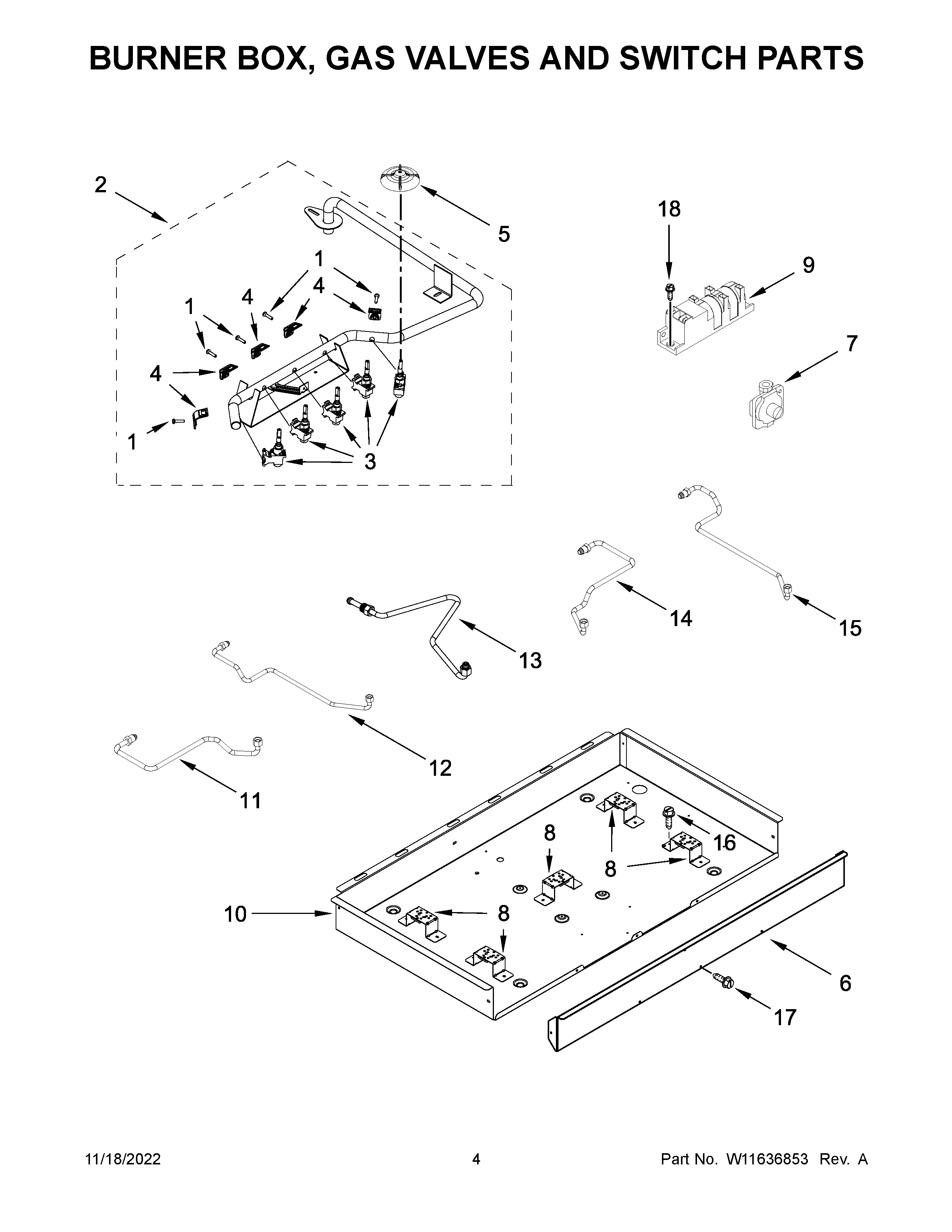

MGC7536DS05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NIW10724598 Whirlpool Range Premium Knob
NIACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEANING
18287057 Whirlpool Oven Screw
2W10594396 Whirlpool Manifold
3CW11712403 Whirlpool Gas Valve
3W11677628 Whirlpool Microwave Gas Valve
3BW10859922 Whirlpool Gas Valve
3AW11256503 Whirlpool Gas Valve Assembly
48287055 Whirlpool Oven Mounting Bracket
5W11507167 Whirlpool Switch Seal
6W10718141 Whirlpool Manifold Panel
7W11087445 Whirlpool Pressure Regulator
8W10594429 Whirlpool Mounting Bracket
9WPW10475149 Whirlpool Spark Module
10CABINET (NOT A SERVICEABLE PART)
11W10566305 Whirlpool Gas Tubing
12W10566306 Whirlpool Gas Tubing Assembly
13W10566302 Whirlpool Gas Tubing
14W10566308 Whirlpool Gas Tubing
15W10566307 Whirlpool Gas Tubing
16W10443110 Whirlpool Screw
17WP3196557 Whirlpool Screw
18SCREW
