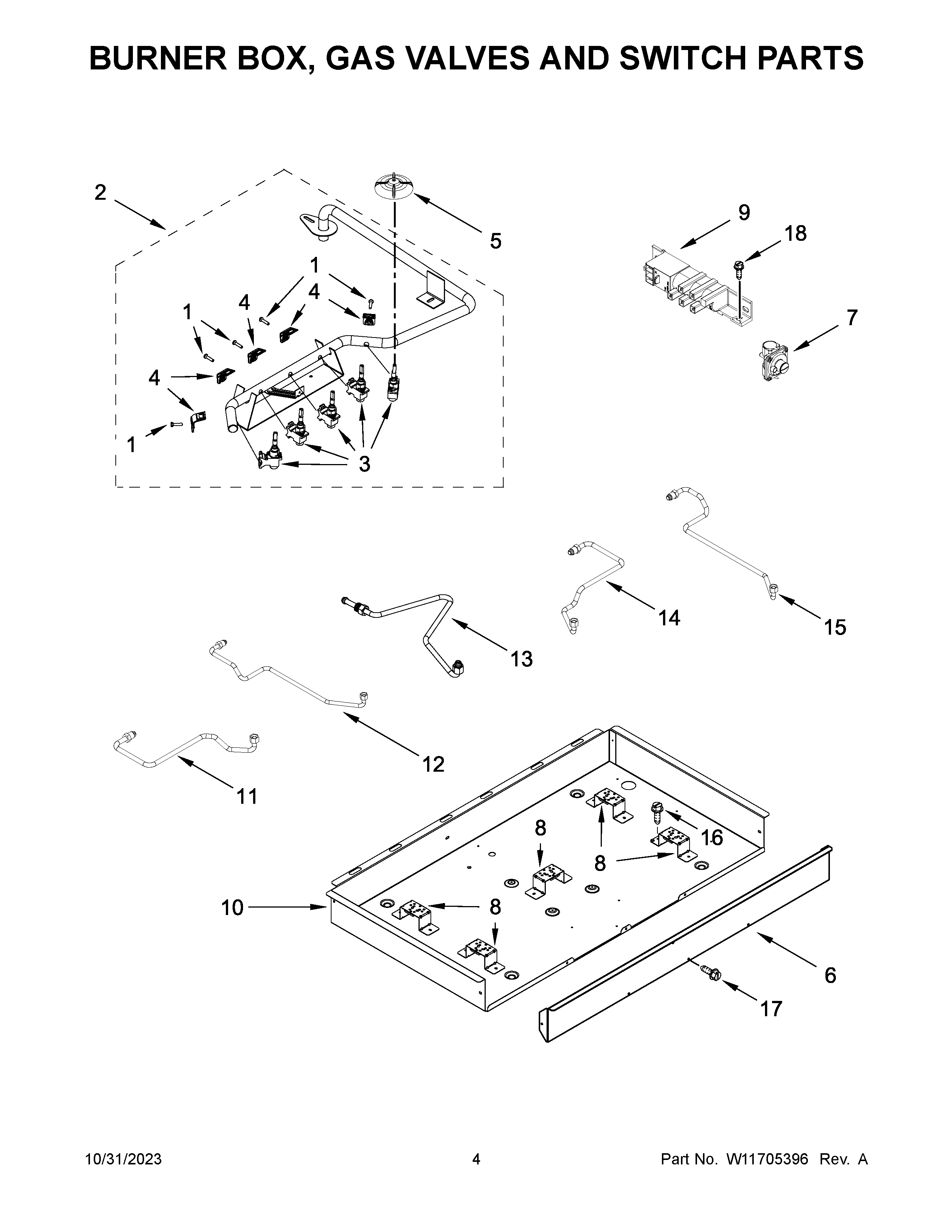

MGC7536DS06 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

MGC7536DS06 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

MGC7536DS06 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NIW10724598 Whirlpool Range Premium Knob
18287057 Whirlpool Oven Screw
2MANIFOLD ASSEMBLY
3VALVE, SINGLE (LEFT REAR)
3AW11706290 Whirlpool Gas Valve
3CVALVE, SINGLE (RIGHT REAR)
3BVALVE, SINGLE (LEFT FRONT)
48287055 Whirlpool Oven Mounting Bracket
5W11507167 Whirlpool Switch Seal
6W10718141 Whirlpool Manifold Panel
7W11087445 Whirlpool Pressure Regulator
8W10594429 Whirlpool Mounting Bracket
9W11703692 Whirlpool Speaker Module
10BOX, BURNER
11W10566305 Whirlpool Gas Tubing
12W10566306 Whirlpool Gas Tubing Assembly
13W10566302 Whirlpool Gas Tubing
14W10566308 Whirlpool Gas Tubing
15W10566307 Whirlpool Gas Tubing
16W10443110 Whirlpool Screw
17WP3196557 Whirlpool Screw
18SCREW
