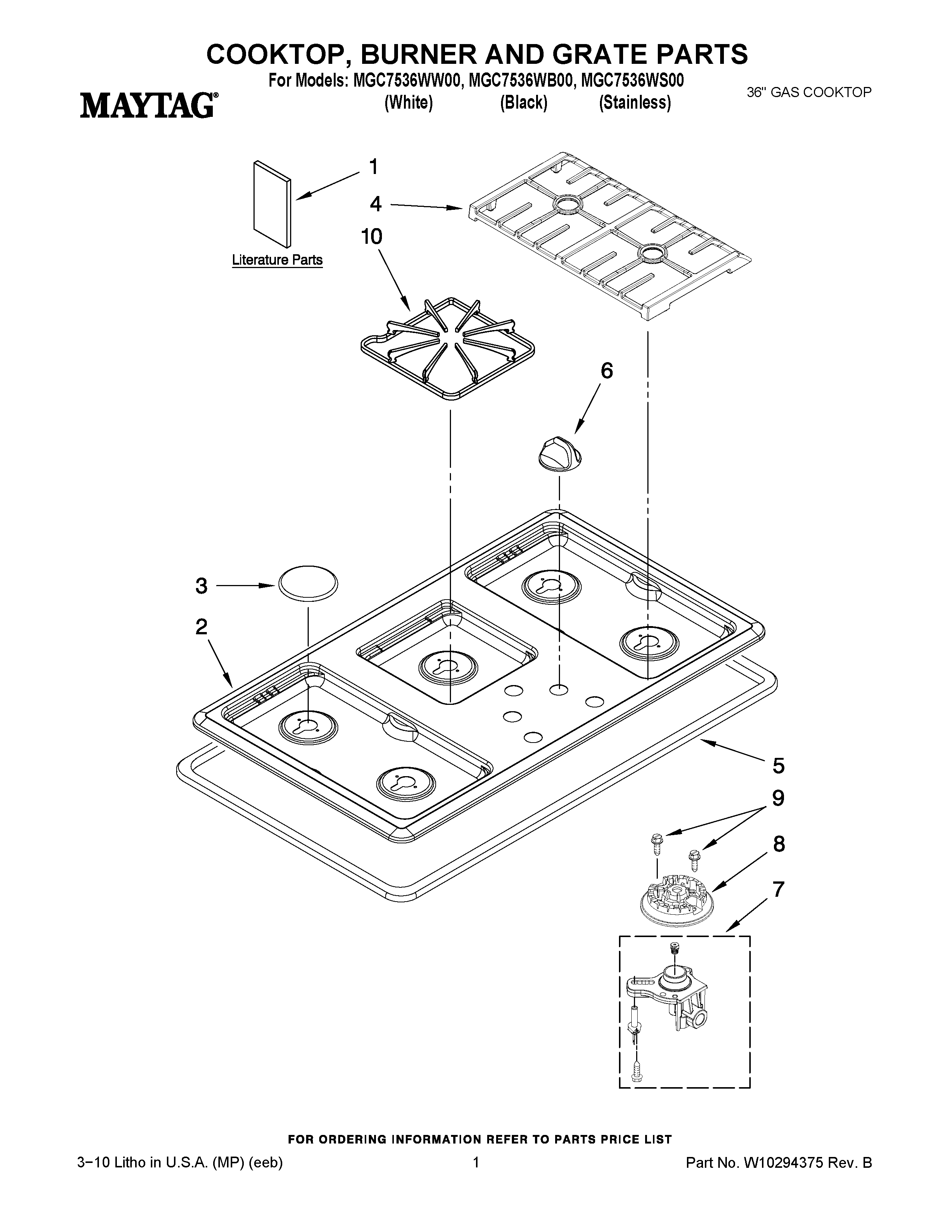

MGC7536WB00 01 – COOKTOP, BURNER AND GRATE PARTS

MGC7536WB00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC7536WB00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10268419
1MAY W10268391
1MAY W10268425
1MAY W10268392
1TIPS, SAFE COOKING (FRENCH)
2MAY W10244708
2MAY W10244705
2MAY W10244703
3CAP, BURNER (BLACK (LR/RF))
3CAP, BURNER (WHITE(RR))
3CAP, BURNER (RF)
3CAP, BURNER (WHITE(LF))
3CAP, BURNER (WHITE(LR/RF))
3CAP, BURNER (LR)
4GRATES, BURNER (SET OF 2) (BLACK(L/R))
4GRATES, BURNER (SET OF 2) (GREY(L/R))
5MAY 8270P107-60
6KNOB, CONTROL (5) (STAINLESS)
6MAY W10244629
6MAY W10244630
7MAY W10244714
7MAY W10244711
7HOLDER, ORIFICE ((RR))
7MAY W10244710
7ORIFICE HOLDER (9.5K) (RIGHT REAR)
8HEAD, BURNER CTR.
8HEAD, BURNER (LR/RR/LF)
8HEAD, BURNER (RF)
9SCREW
10MAY W10244674
10MAY W10244673
