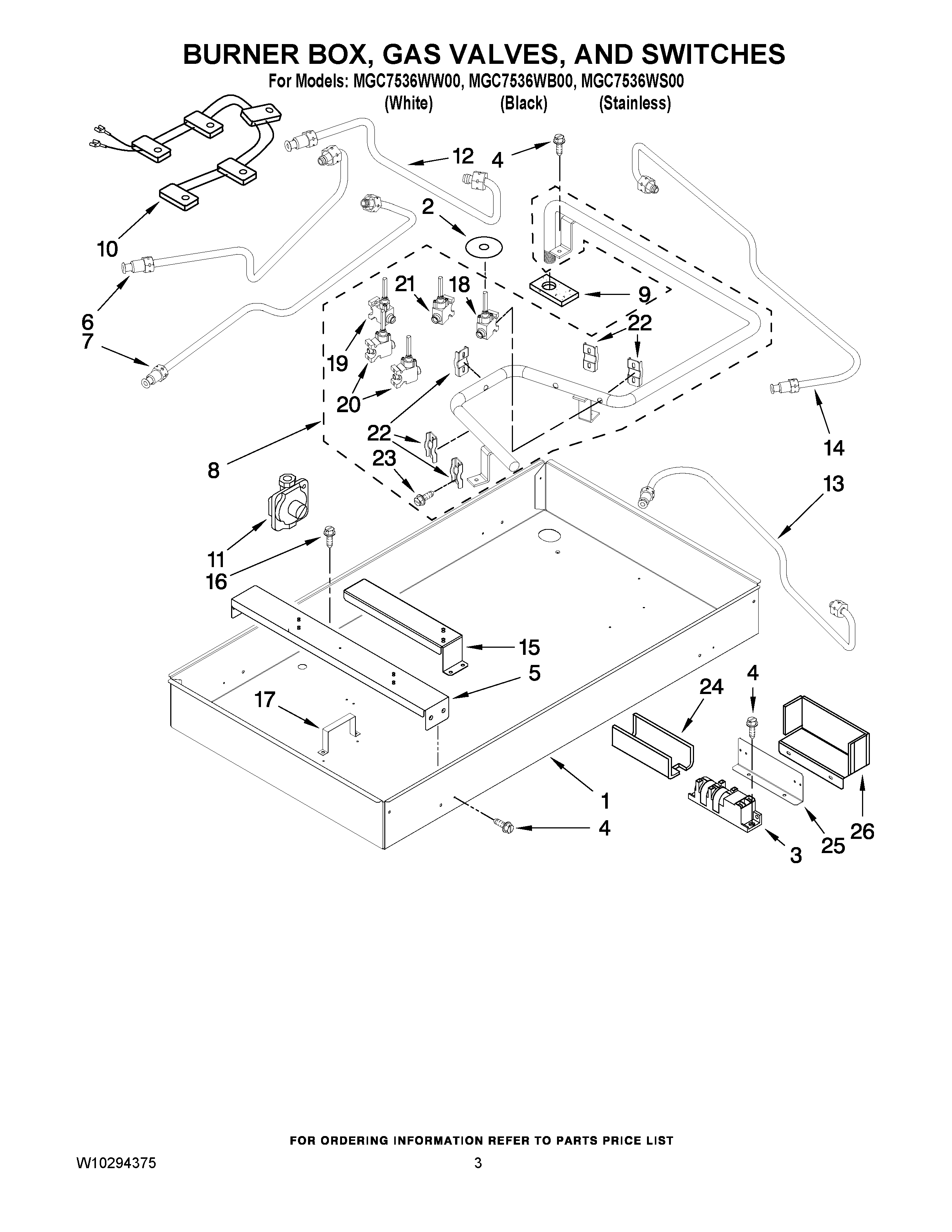

MGC7536WB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

MGC7536WB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

MGC7536WB00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1MAY W10268428
2Seal, Valve Shaft
3SPARK MODULE
4MAY 7101P426- 60
5MAY 3801F877-51
6MAY 7506P343-60
7MAY 7506P344-60
8MAY W10268435
9MAY 7208P024-60
10MAY W10268398
11MAY 7510P093-60
12MAY 7506P345-60
13MAY 7506P346-60
14MAY 7506P347-60
15MAY 3801F876-51
16Screw, Ground
17MAY 3801F925-51
18MAY 7502P555-60
19MAY 7502P557-60
20MAY W10268439
21MAY W10268440
22MAY 8405P028-60
23MAY 7101P550-60
24INSULATION,SPARK
25BRACKET, SPARK
26SHIELD, SPARK
