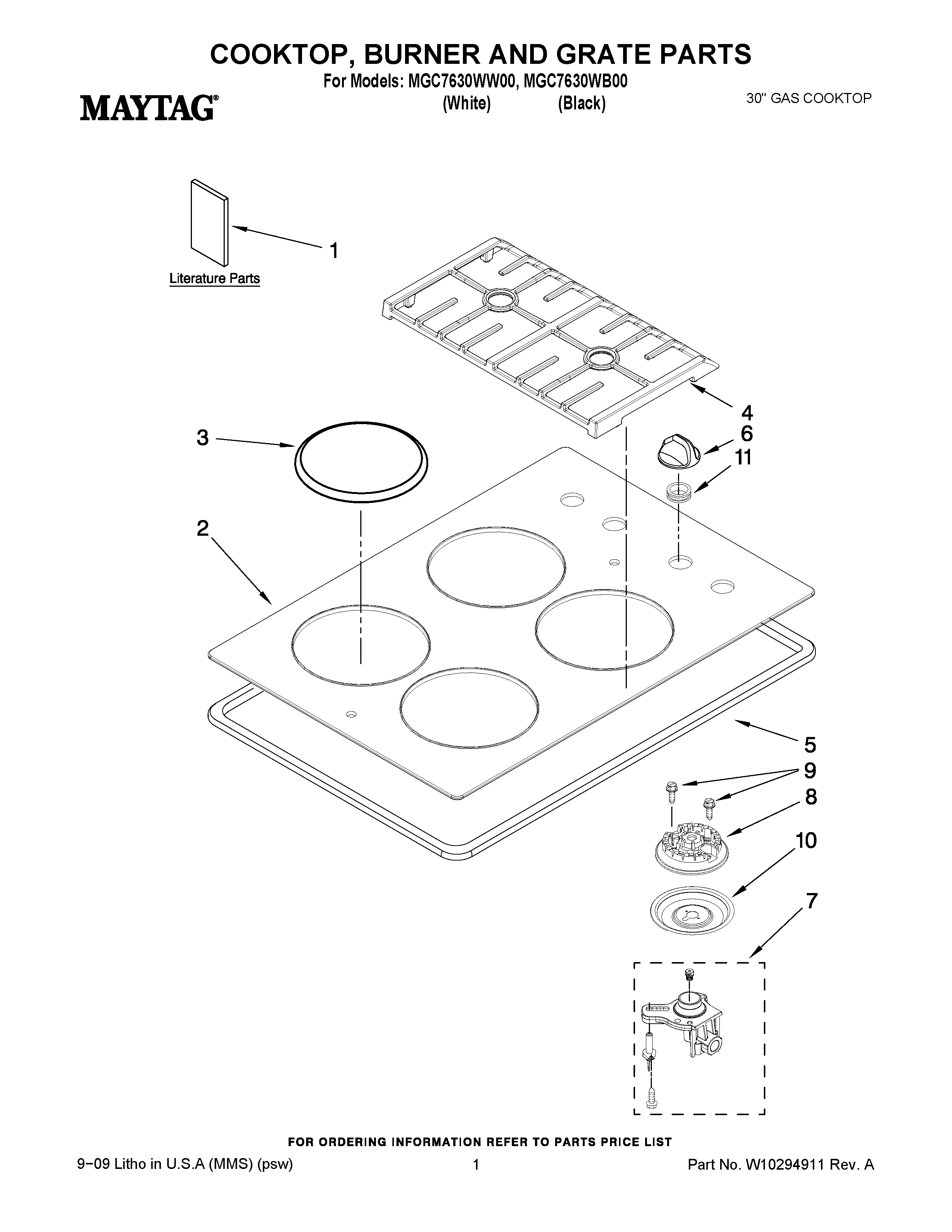

MGC7630WB00 01 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
MGC7630WB00 01 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
1
TIPS, SAFE COOKING (ENGLISH)
1
TIPS, SAFE COOKING (FRENCH)
1
MAY W10268418
1
MAY W10268401
1
MAY W10268392
2
MAY W10268411
2
MAY W10268407
3
CAP, BURNER (RF)
3
CAP, BURNER (WHITE(RR))
3
CAP, BURNER (WHITE(LR/RF))
3
CAP, BURNER (BLACK (LR/RF))
3
CAP, BURNER (WHITE(LF))
3
CAP, BURNER (LR)
4
MAY W10244666
4
MAY W10244665
5
MAY 8270P109-60
6
MAY W10244629
6
MAY W10244630
7
MAY W10244714
7
MAY W10244711
7
ORIFICE HOLDER (9.5K) (RIGHT REAR)
7
HOLDER, ORIFICE ((RR))
8
HEAD, BURNER CTR.
8
HEAD, BURNER (LR/RR/LF)
8
HEAD, BURNER (RF)
9
SCREW
10
GRY DRIP BOWLS (3)
10
BLK DRIP BOWLS (1)
10
GRY DRIP BOWLS (1)
10
BLK DRIP BOWLS (1)
10
MAY W10244670
10
MAY W10244669
11
MAY W10268386
11
MAY 8008P039-60
←
