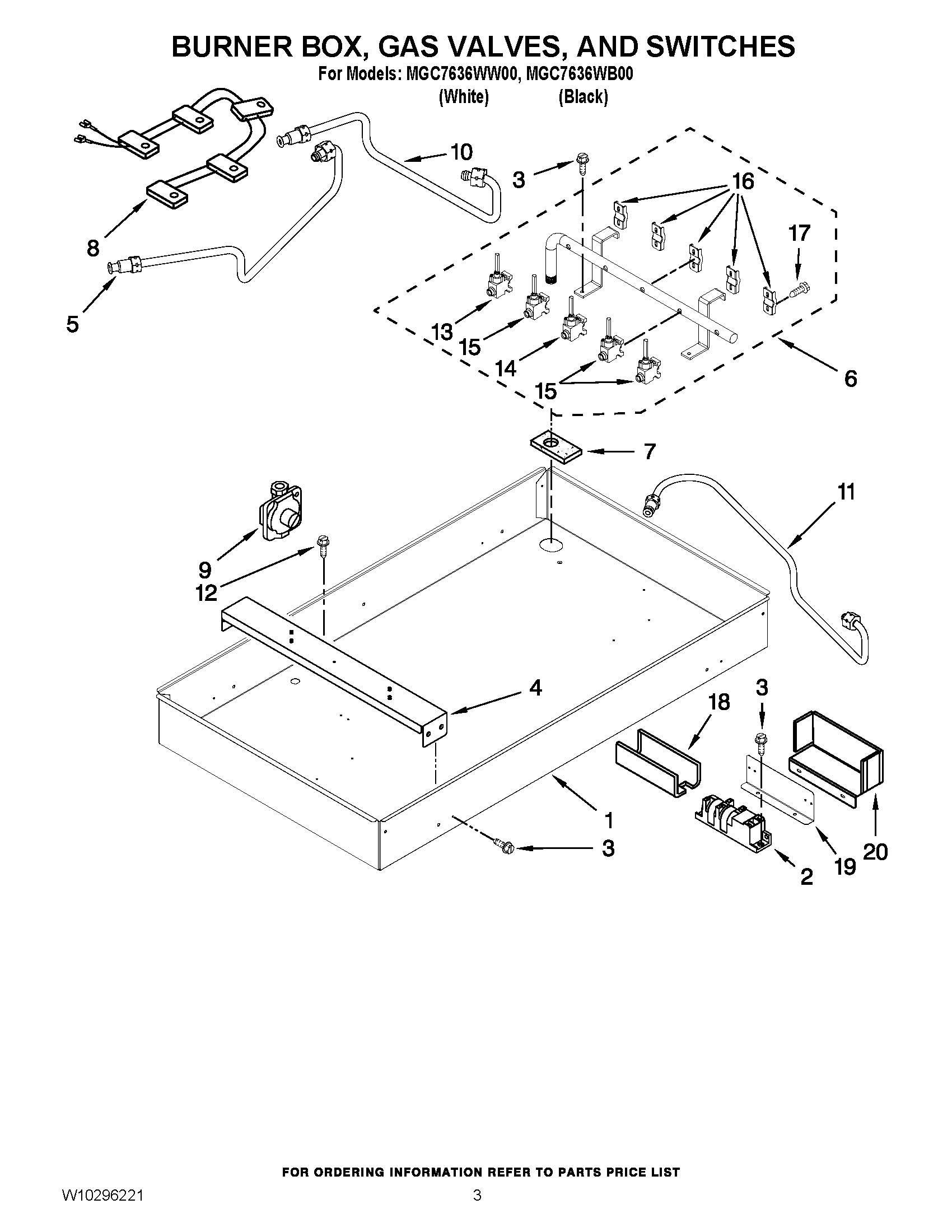

MGC7636WW00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

MGC7636WW00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

MGC7636WW00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1MAY W10270270
2SPARK MODULE
3MAY 7101P426- 60
4MAY 3801F849-51
5MAY 7506P327-60
6MAY W10268437
7MAY 7208P024-60
8MAY W10268417
9MAY 7510P093-60
10MAY 7506P329-60
11MAY 7506P374-60
12Screw, Ground
13MAY W10268441
14MAY 7502P557-60
15MAY 7502P549-60
16MAY 8405P028-60
17MAY 7101P550-60
18INSULATION,SPARK
19BRACKET, SPARK
20SHIELD, SPARK
