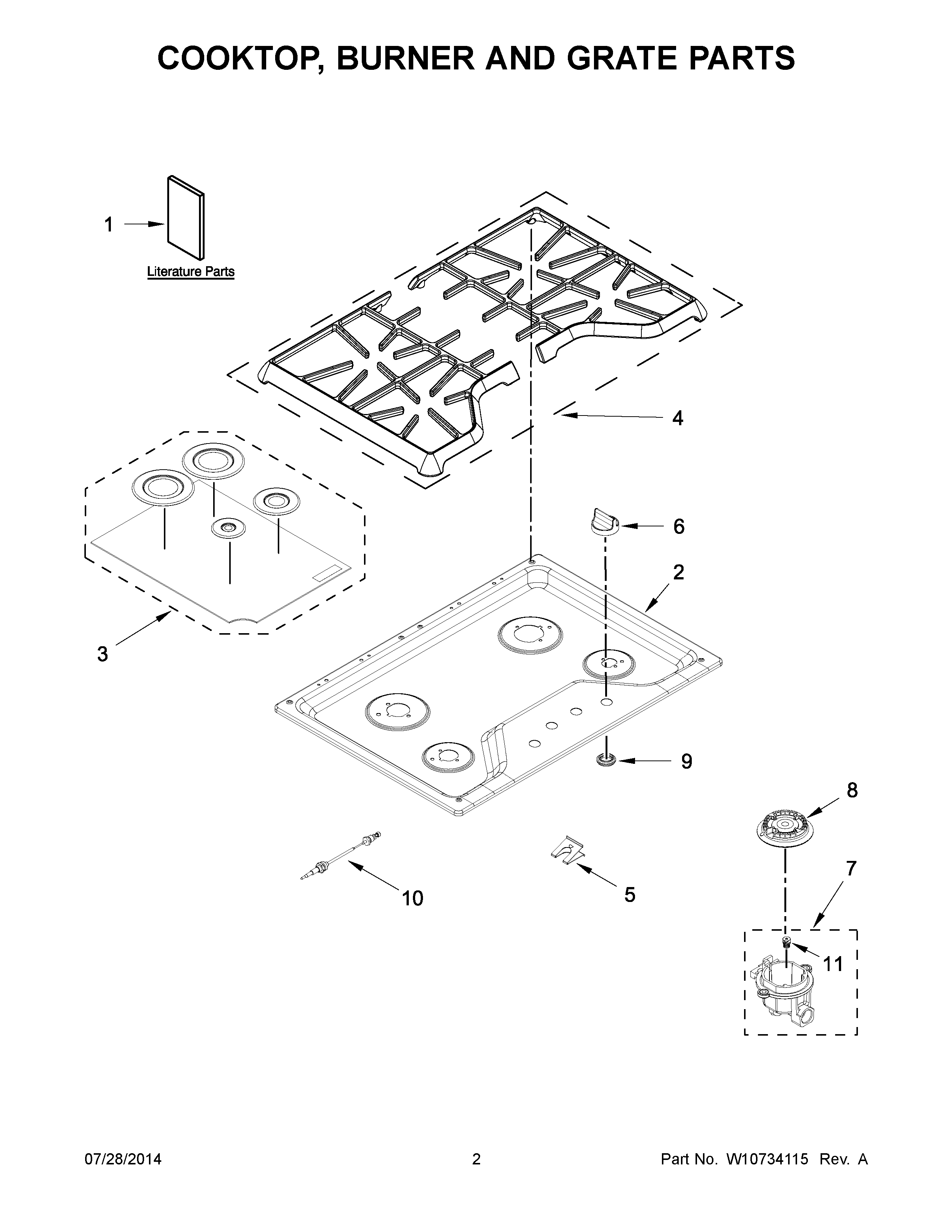

MGC9530DS00 02 – COOKTOP, BURNER AND GRATE PARTS

MGC9530DS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC9530DS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1CTIPS, SAFE COOKING (ENGLISH)
1DTIPS, SAFE COOKING (FRENCH)
1MAY W10597144
1BMAY W10648065
1AMAY W10672375
2MAY W10597070
3MAY W10609594
4MAY W10594445
5SPRING, ELECTRODE (RR)
6MAY W10643321
7CHOLDER,ORIFICE (9.1K) (RIGHT REAR)
7BHOLDER, ORIFICE (12K) (RIGHT FRONT)
7AMAY W10611437
7MAY W10594399
8CMAY W10611436
8AHEAD, BURNER (LEFT FRONT & RIGHTFRONT)
8BHEAD, BURNER (RIGHT REAR)
8MAY 8286813
9MAY W10625915
10MAY W10541842
10BMAY W10611443
10AMAY W10541843
11AMAY W10640097
11CORIFICE (RIGHT REAR)
11MAY W10652711
11BORIFICE (RIGHT FRONT)
