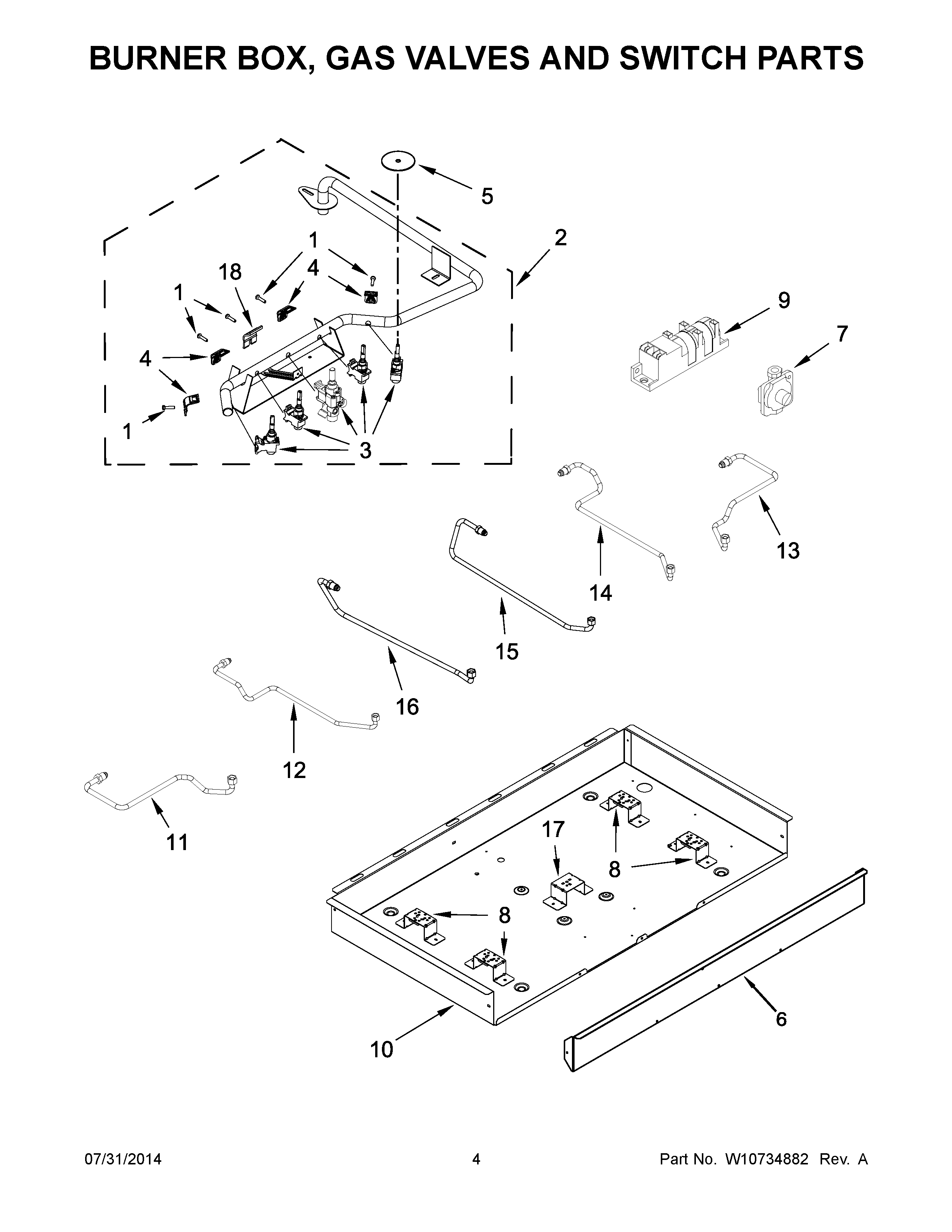

MGC9536DS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

MGC9536DS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

MGC9536DS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NICLIP, HARNESS
NICORD-POWER
NIMAY W10539913
NIMAY W10676661
NIRELIEF, STRAIN
NILINER (NOT A SERVICEABLE PART)
1MAY 8287057
2MAY W10594397
3DMAY W10594389
3BMAY W10594393
3AMAY W10594391
3CMAY W10597156
3MAY W10594392
4MAY 8287055
5SEAL, SWITCH SHAFT
6MAY W10614951
7REGULATOR,PRESSURE
8MAY W10594429
9MAY W10475149
10MAY W10728414
11MAY W10566305
12MAY W10566306
13MAY W10566308
14MAY W10566307
15TUBING, GAS BURNER (CENTER)
16TUBING, GAS BURNER (CENTER)
17MAY W10594430
18MAY 8287056
