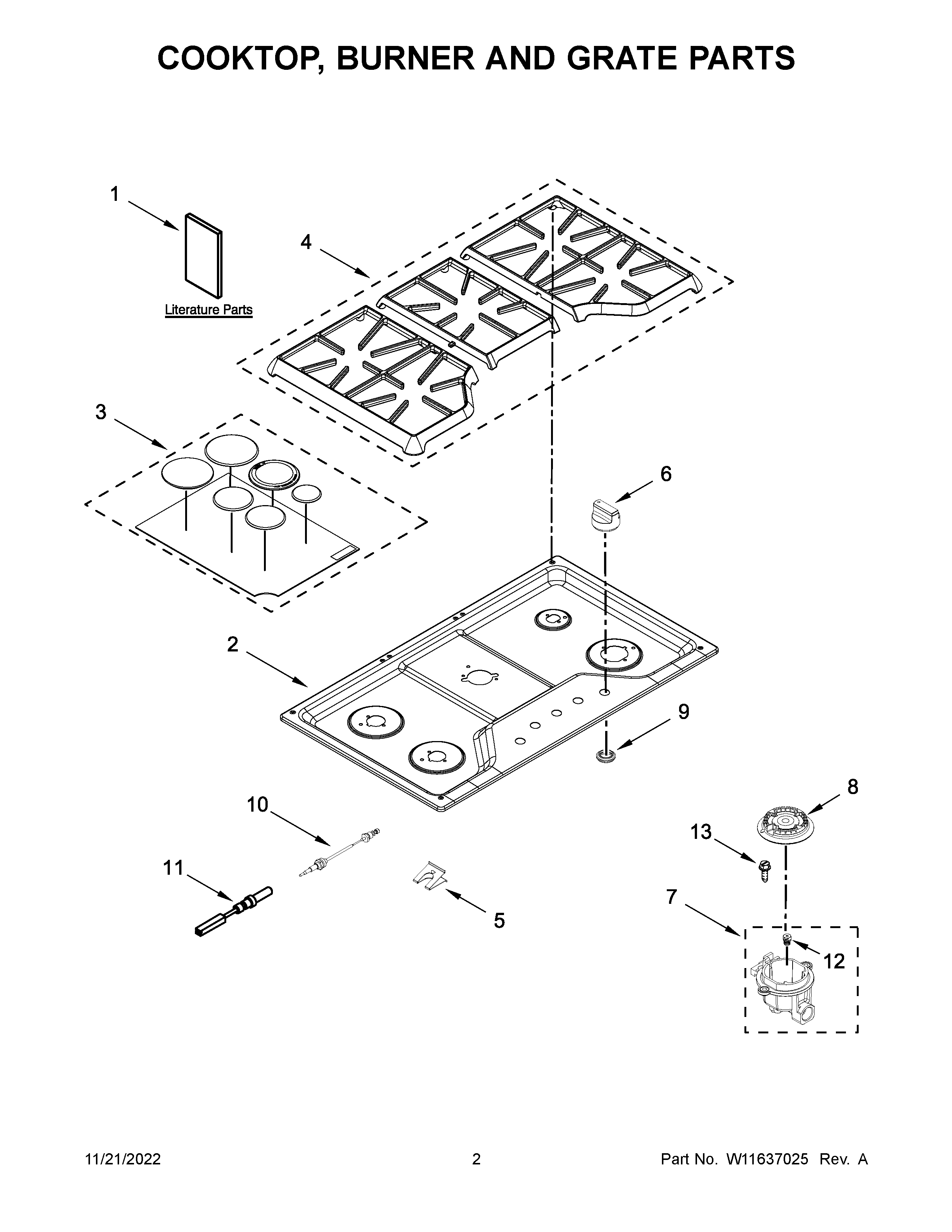

MGC9536DS05 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	W11637584 Whirlpool Wire Harness
NI	TAPE, FOAM
NI	W11561436 Whirlpool Spark Ignition Switch and Harness
NI	W10676661 Whirlpool Cooktop Spud Orifice
NI	16515 Whirlpool Clip
NI	9760045 Whirlpool Oven Foam Seal
NI	SCREW
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10132200 Whirlpool Strain Relief
NI	W10392003 Whirlpool Power Cord
NI	BRACKET, MOUNTING
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	W10597074 Whirlpool Cooktop
3	CAP-BURNER
4	W11411592 Whirlpool Grate Kit
5	8286863 Whirlpool Oven Clip
6	W11729014 Whirlpool Knob
7	W10597166 Whirlpool Orifice Holder
7B	W10594405 Whirlpool Orifice Holder
7A	W10611435 Whirlpool Orifice Holder
7C	W10594399 Whirlpool Orifice Holder
8C	WP8286813 Whirlpool Burner Head
8B	WP8286815 Whirlpool Burner Head
8	WP8286814 Whirlpool Burner Head
8A	W10811599 Whirlpool Burner Head
9	W11206740 Whirlpool Grommet
10A	W11507532 Whirlpool Surface Igniter
10	W11507531 Whirlpool Surface Igniter Assembly
11	W10852959 Whirlpool Surface Igniter
12B	W10652706 Whirlpool Spud Orifice
12A	W11243595 Whirlpool Orifice Spud
12D	W10791082 Whirlpool Spud Orifice
12	W10652710 Whirlpool Orifice Spud
12C	W10791079 Whirlpool Orifice Spud
13	W11699921 Whirlpool Screw
