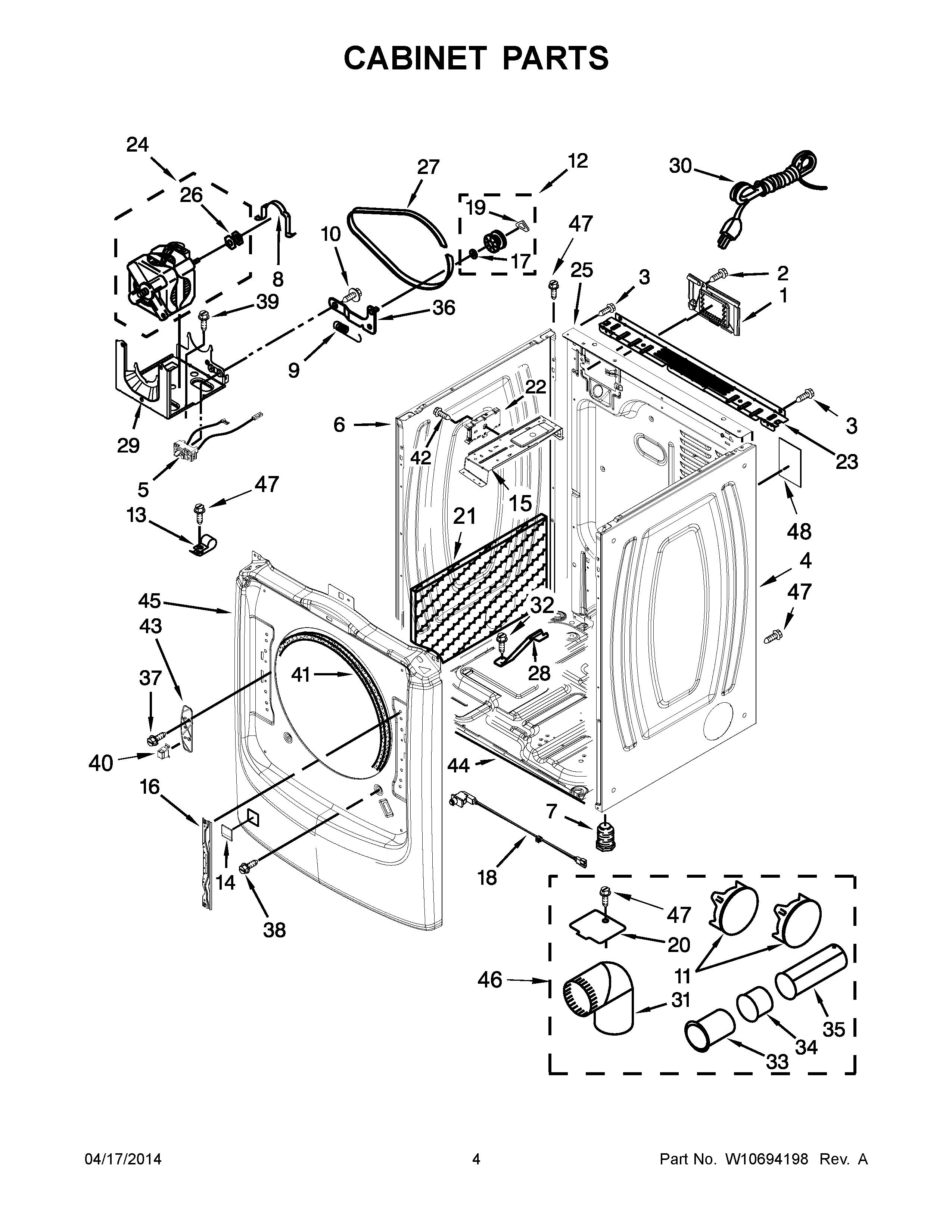

MGD3100DW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8317339
2	SCREW
3	MAY 8533974
4	PANEL, SIDE (RIGHT) (WHITE)
5	MAY W10411936
6	MAY W10468495
7	MAY 3392100
8	CLAMP, MOTOR MOUNT
9	MAY W10446781
10	SCREW
11	PLUG, MULTIVENT (MIDNIGHT GREY)
12	MAY W10468057
13	MAY 3978776
14	PLUG, FRONT PANEL (WHITE)
15	MAY W10259611
16	MAY W10315109
17	MAY W10121334
18	DOOR SWITCH, SNAP IN
19	WASHER, TRI RING
20	MAY W10354249
21	MAY W10123956
22	BOARD, CONTROL
23	MAY W10208382
24	MAY W10620757
25	MAY W10487431
26	Pulley, Motor
27	MAY W10112954
28	MAY 8529757
29	MAY W10242878
30	MAY 3401401
31	MAY W10416072
33	PIPE, EXHAUST (MEDIUM)
34	PIPE, EXHAUST (SHORT)
35	PIPE, EXHAUST (LONG)
36	MAY 3388674
37	MAY W10288126
38	SCREW
39	SCREW
40	MAY W10208401
41	MAY 3387242
42	Screw
43	MAY W10208250
44	MAY 8565046
45	PANEL, FRONT (WHITE)
46	KIT, 4-WAY VENT
47	Screw
48	MAY W10504381
