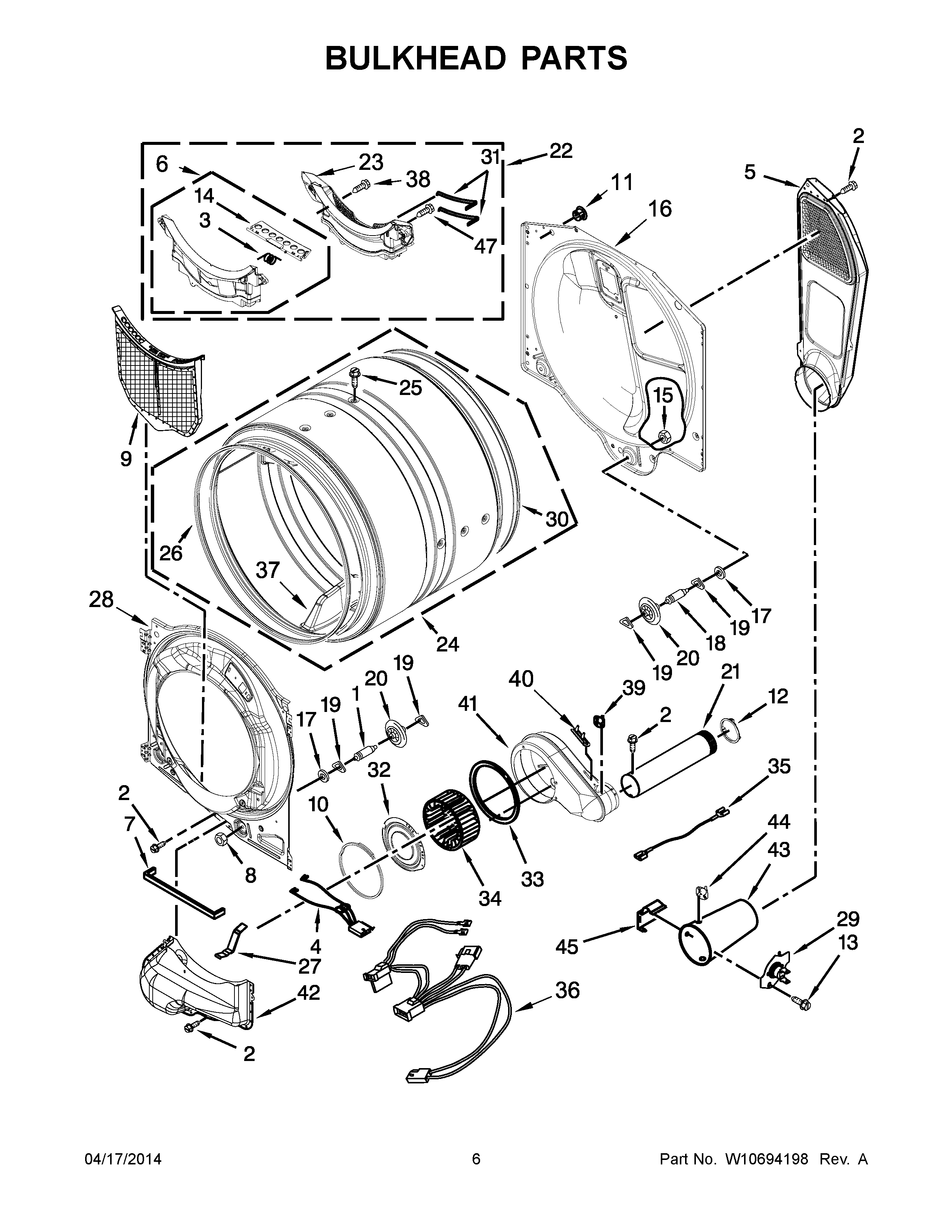

MGD3100DW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	MAY W10219015
4	MAY W10298258
5	MAY W10295533
6	ASSEMBLY, HOUSING AND DOOR
7	MAY W10211950
8	NUT, HEX
9	LINT SCREEN (WHITE)
10	MAY W10211899
11	MAY 8529007
12	MAY W10344699
13	THERMISTOR, GAS INLET
14	DOOR, LINT SCREEN
15	NUT, HEX (LEFT HAND THREAD)
16	MAY 3387809
17	WASHER
18	SHAFT, DRUM ROLLER – LEFT HAND THREAD
19	WASHER, TRI RING
20	ROLLER, SUPPORT
21	MAY W10342188
22	ASSEMBLY, OUTLET GRILL AND HOUSING
23	GRILL, OUTLET
24	DRUM ASSEMBLY COMPLETE
25	MAY W10219342
26	MAY W10521122
27	MAY W10414388
28	BULKHEAD, FRONT DOOR SCREEN
29	CUT-OFF, THERMAL
30	MAY W10521118
31	SENSOR, ELECTRODE
32	MAY W10211901
33	SEAL, PLATE COVER
34	MAY W10211915
35	MAY W10525140
36	MAY W10468426
37	MAY W10416098
38	SCREW
39	THERMISTOR
40	Fuse, Thermal (91 C)
41	MAY W10211911
42	MAY W10211896
43	MAY 8573824
44	THERMOSTAT, HI LIMIT
45	MAY 338906
