MGD3100DW0 05 – DOOR PARTS – Aparts

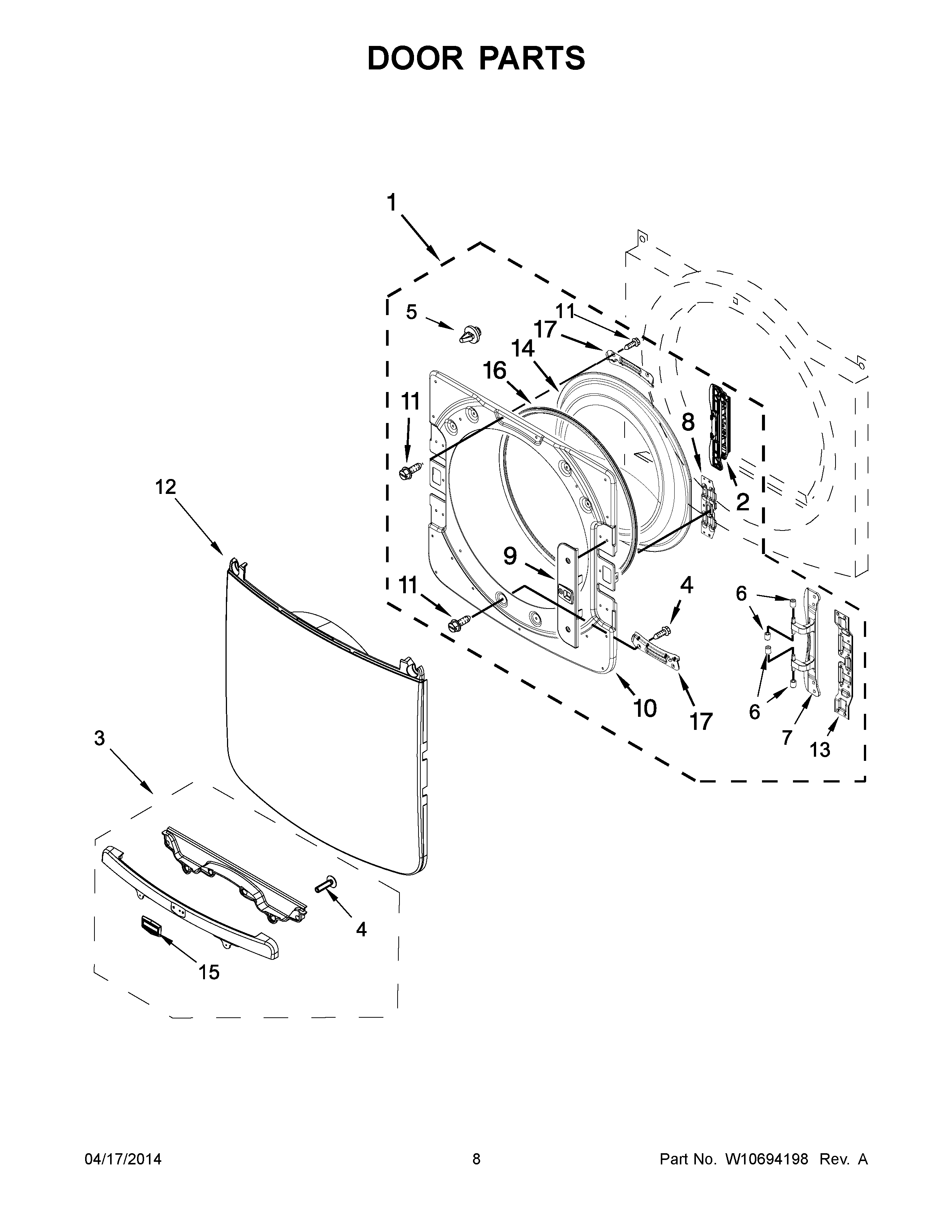

MGD3100DW0 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, INNER DOOR
2	DOOR HINGE ASSEMBLY
3	HANDLE, DOOR (BLACK)
4	Screw
5	MAY 8572266
6	MAY W10208398
7	HINGE BASE
8	MAY W10208254
9	MAY W10272404
10	MAY W10272388
11	MAY W10288126
12	ASSEMBLY, OUTER DOOR
13	MAY W10208419
14	MAY W10208417
15	BADGE, MAYTAG
16	MAY W10329710
17	MAY W10208252
