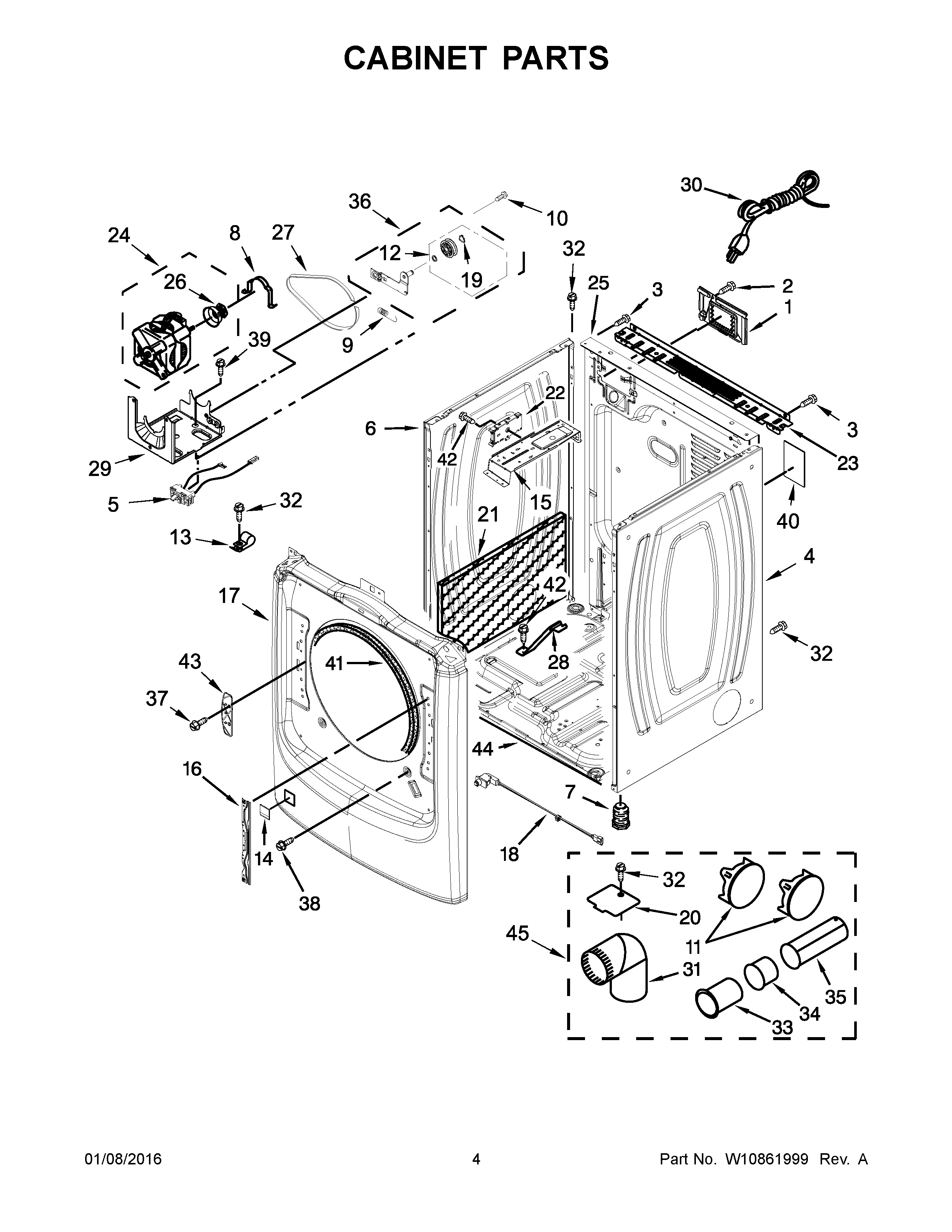

MGD3100DW1 03 – CABINET PARTSadmin2025-04-26T09:08:27+00:00MGD3100DW1 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | MAY 8317339 |
| 2 | SCREW |
| 3 | MAY 8533974 |
| 4 | PANEL, SIDE (RIGHT) (WHITE) |
| 5 | SWITCH, BROKEN BELT |
| 6 | MAY W10468495 |
| 7 | MAY 3392100 |
| 8 | CLAMP, MOTOR MOUNT |
| 9 | MAY W10446781 |
| 10 | SCREW |
| 11 | PLUG, MULTIVENT (MIDNIGHT GREY) |
| 12 | MAY W10468057 |
| 13 | MAY 3978776 |
| 14 | PLUG, FRONT PANEL (WHITE) |
| 15 | MAY W10259611 |
| 16 | MAY W10315109 |
| 17 | PANEL, FRONT (WHITE) |
| 18 | DOOR SWITCH, SNAP IN |
| 19 | WASHER, TRI RING |
| 20 | MAY W10354249 |
| 21 | MAY W10123956 |
| 22 | MAY W10804446 |
| 23 | MAY W10208382 |
| 24 | MAY W10806760 |
| 25 | MAY W10487431 |
| 26 | Pulley, Motor |
| 27 | MAY W10112954 |
| 28 | MAY 8529757 |
| 29 | MAY W10242878 |
| 30 | MAY 3401401 |
| 31 | MAY W10416072 |
| 32 | Screw |
| 33 | PIPE, EXHAUST (MEDIUM) |
| 34 | PIPE, EXHAUST (SHORT) |
| 35 | PIPE, EXHAUST (LONG) |
| 36 | ASSEMBLY, IDLER |
| 37 | MAY W10288126 |
| 38 | SCREW |
| 39 | SCREW |
| 40 | MAY W10504381 |
| 41 | MAY 3387242 |
| 42 | Screw |
| 43 | MAY W10208250 |
| 44 | MAY 8565046 |
| 45 | KIT, 4-WAY VENT |
