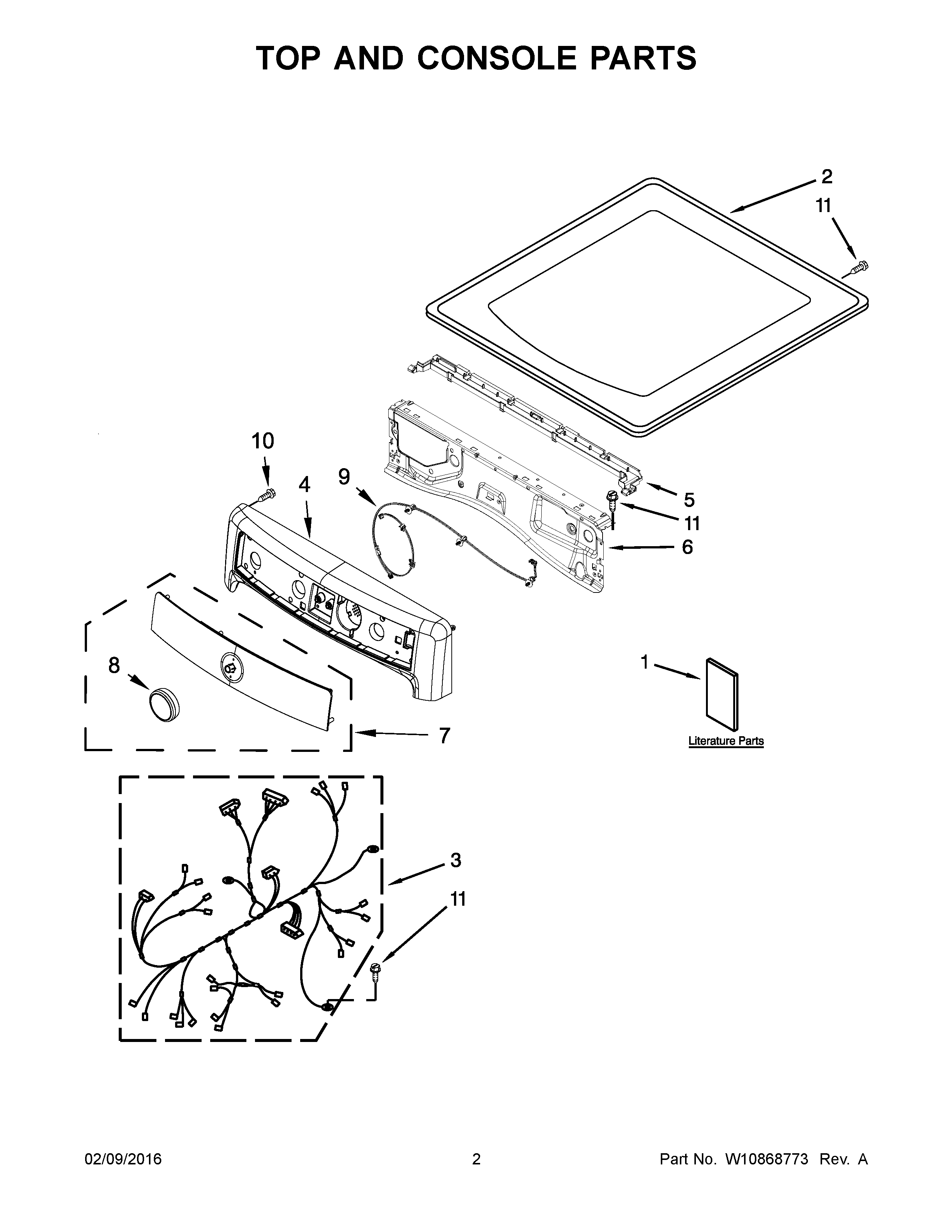

MGD3500FW0 02 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1A	TECH SHEET
1C	MAY W10806078
1B	MAY W10775221
1D	QUICK START GUIDE
1	USE AND CARE GUIDE
2	MAY W10208383
3	MAY W10801124
4	MAY W10391555
5	WATER CHANNEL
6	MAY W10208198
7	MAY W10783692
8	ASSEMBLY, CONTROL KNOB (CHROME)
9	MAY W10540654
10	MAY W10489172
11	SCREW
