MGD4200BG0 05 – DOOR PARTS – Aparts

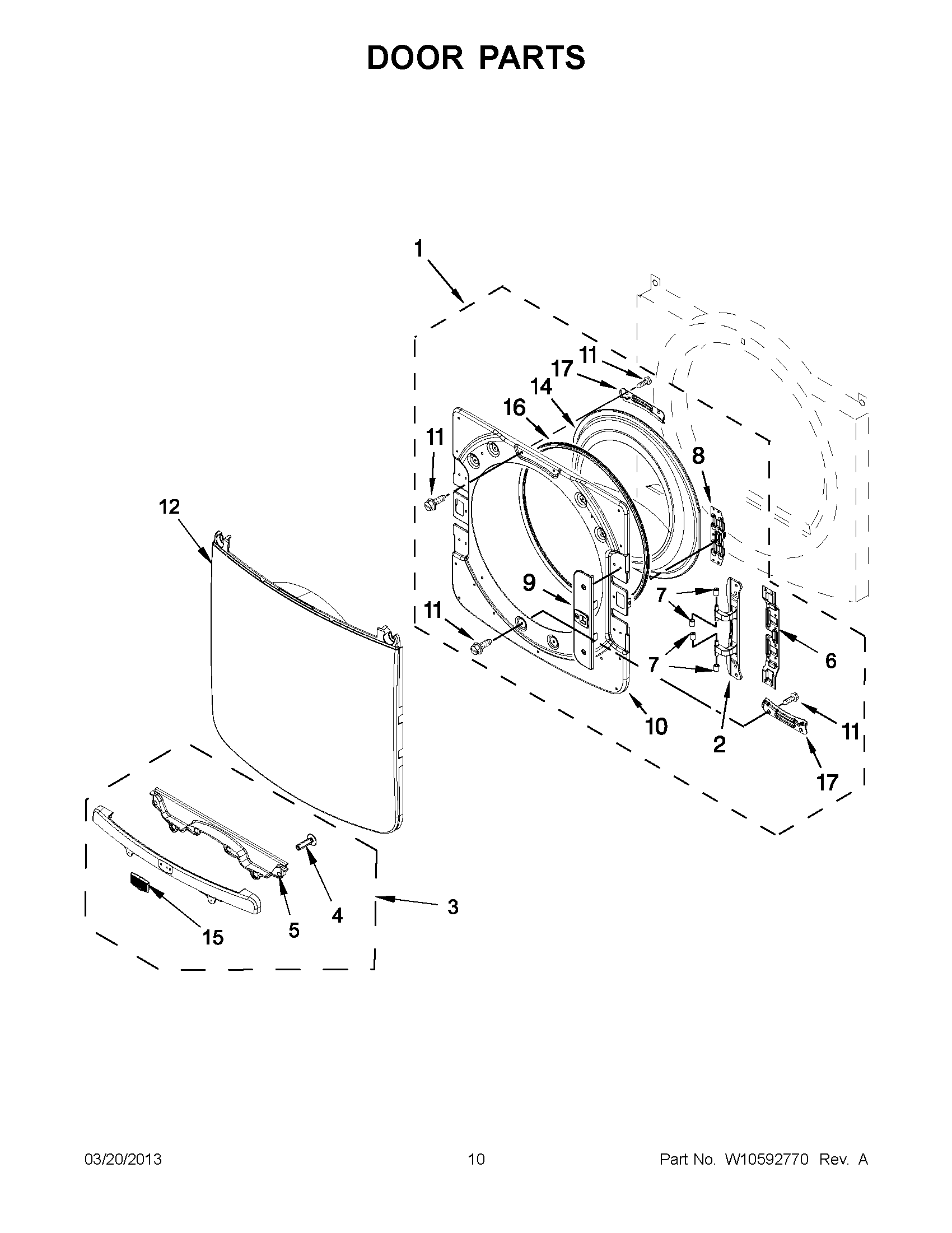

MGD4200BG0 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, INNER DOOR
2	HINGE BASE
3	MAY W10466619
4	Screw
5	MAY 8572266
6	MAY W10208419
7	MAY W10208398
8	MAY W10208254
9	MAY W10272404
10	DOOR, INNER
11	MAY W10288126
12	ASSEMBLY, OUTER DOOR
14	MAY W10208417
15	MAY W10466582
16	MAY W10329710
17	MAY W10208252
