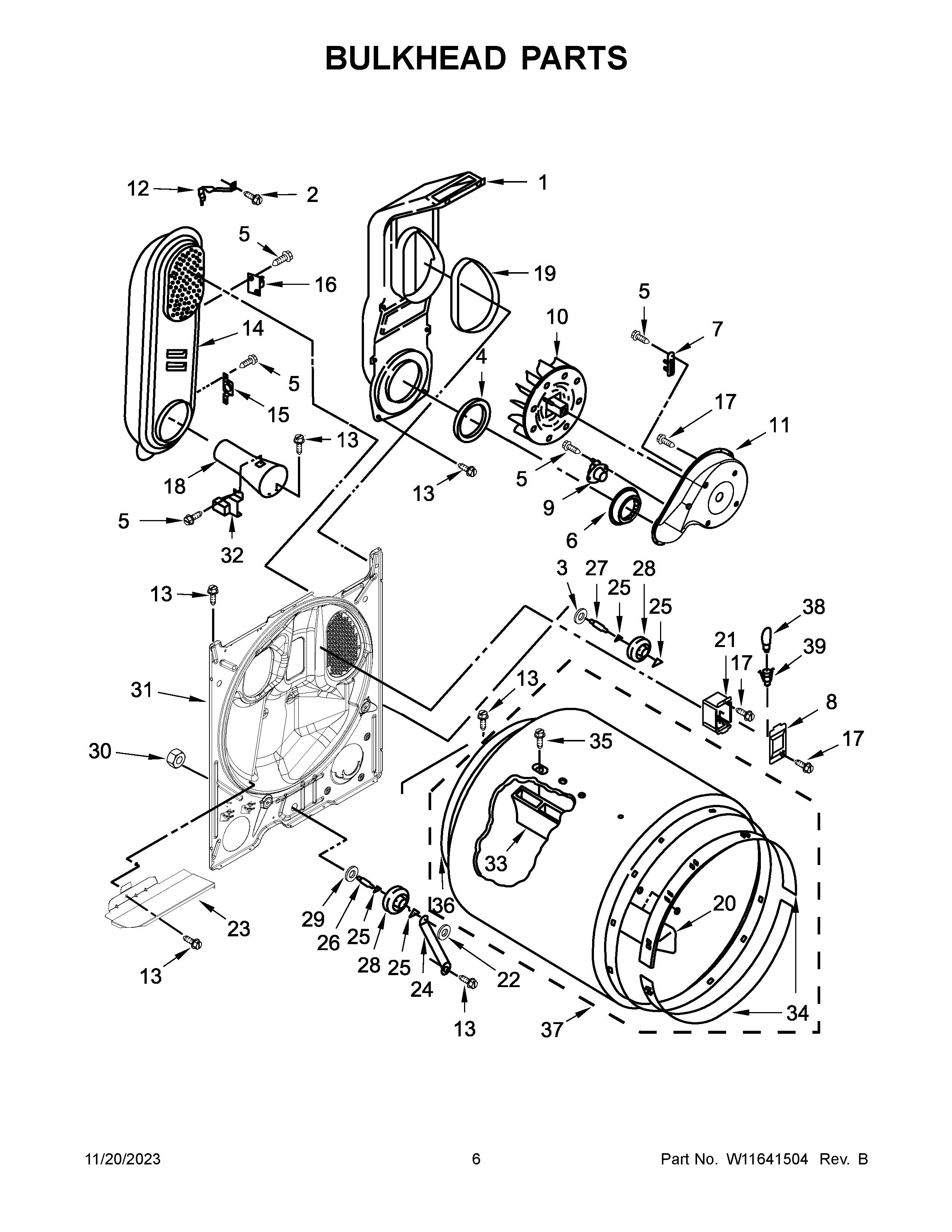

MGD4500MW1 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	W11226088 Whirlpool Lens Assembly
9	WP3387134 Whirlpool Dryer Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	279980 Whirlpool Box
15	W11050897 Whirlpool Dryer High Limit Thermostat
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP8066049 Whirlpool Funnel Assembly
19	SEAL
20	WP3403636 Whirlpool Drum Baffle
21	8578825 Whirlpool Bracket
22	WP90296 Whirlpool Clip
23	W11398682 Whirlpool Bracket
24	W11684613 Whirlpool Bracket
25	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26	SHAFT SUPPORT ROLLER DRYER
27	SHAFT SUPPORT ROLLER DRYER
28	349241T Whirlpool Dryer Drum Support Roller Kit
29	WP348197 Whirlpool Washer Assembly
30	W11229607 Whirlpool Nut
31	W10828431 Whirlpool Oven Bulkhead
32	WP338906 Whirlpool Dryer Gas Sensor
33	BAFFLE-DRM
34	279441 Whirlpool Front Bearing Ring
35	W10853898 Whirlpool Screw
36	W10612022 Whirlpool Felt Seal
37	W10899578 Whirlpool Dryer Drum Assembly
38	WP22002263 Whirlpool Dryer 10W Light Bulb
39	W11222979 Whirlpool Socket
