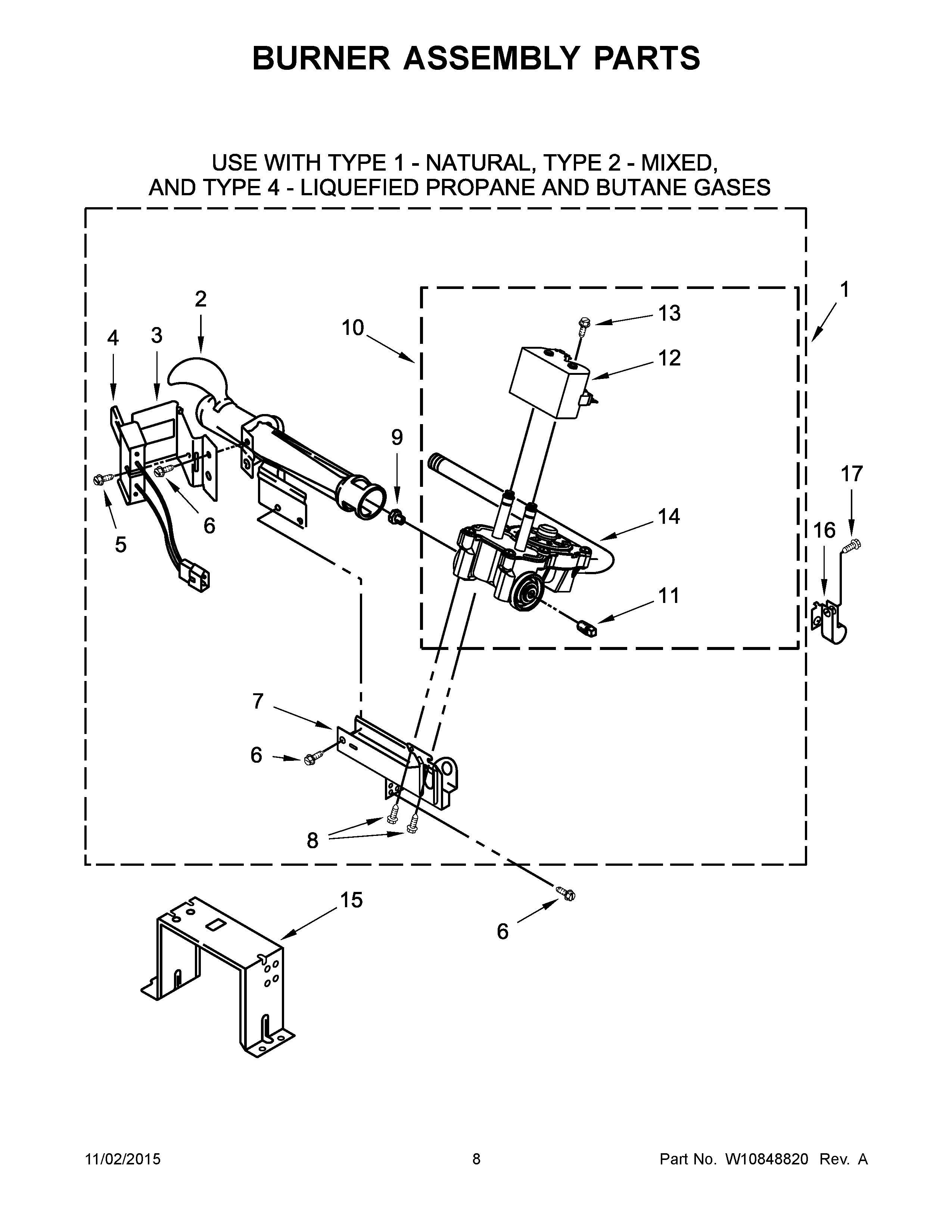

MGD5100DC1 05 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	CONVERSION KIT (TYPE 1 TO TYPE 4 LPG)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10307147
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY W10366705
6	SCREW
7	MAY 3389871
8	SCREW
9	ORIFICE, BURNER (TYPE 1 (NATURAL))
10	VALVE, GAS 60 HZ. COMPLETE)
11	MAY W10295523
12	MAY W10328463
13	MAY 326049536
14	MAY W10097610
15	MAY 3389889
16	MAY 3978776
17	SCREW
