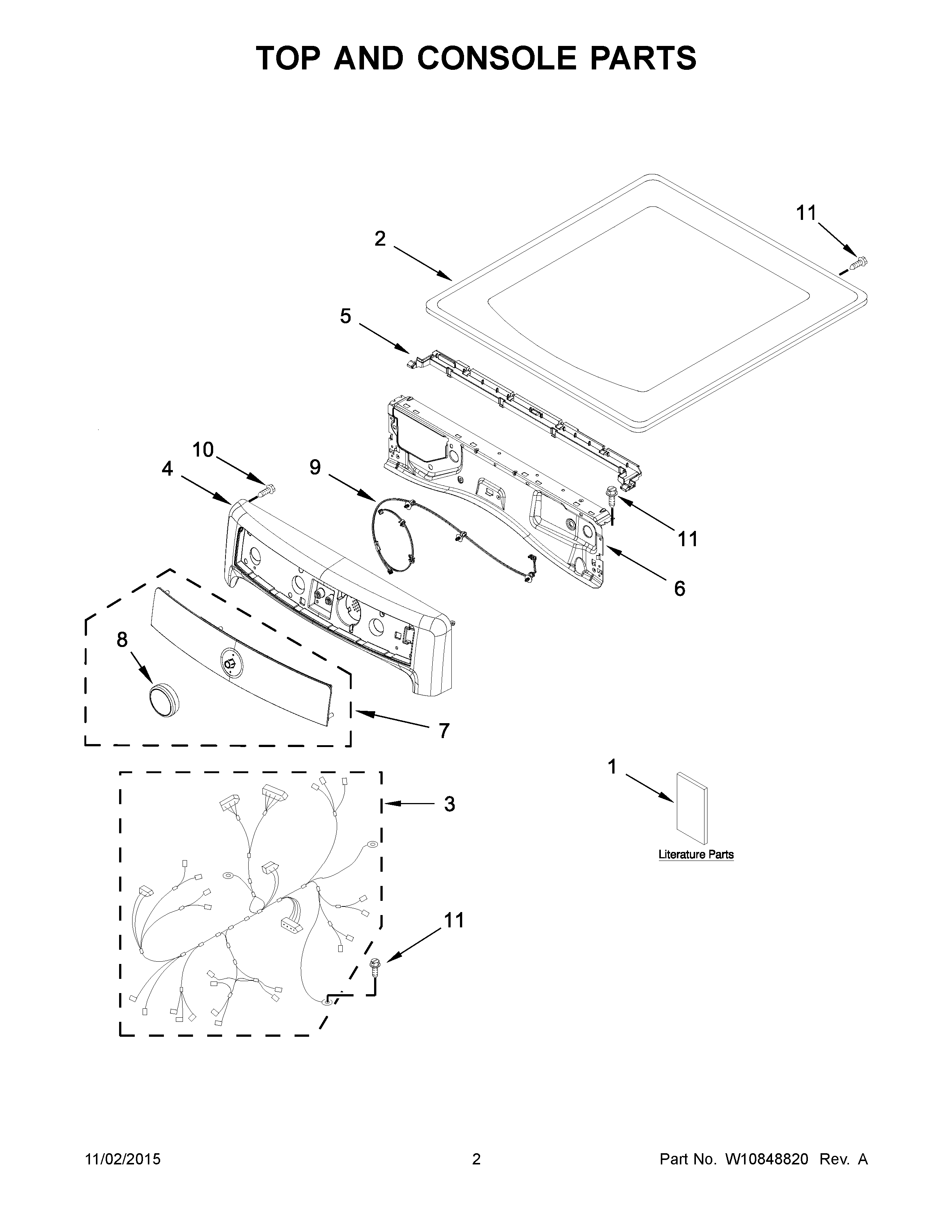

MGD5100DW1 02 – TOP AND CONSOLE PARTS

MGD5100DW1 02 – TOP AND CONSOLE PARTS

Written by

in

MGD5100DW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1ATECH SHEET
1DQUICK START GUIDE
1BMAY W10676163
1CWIRING DIAGRAM
2ATOP (CHROME SHADOW)
2MAY W10208383
3HARNESS, MAIN WIRING
4MAY W10391555
4ACONSOLE ASSEMBLY (CHROME SHADOW)
5WATER CHANNEL
6MAY W10208198
7AMAY W10800516
7MAY W10800515
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10MAY W10489172
11SCREW
