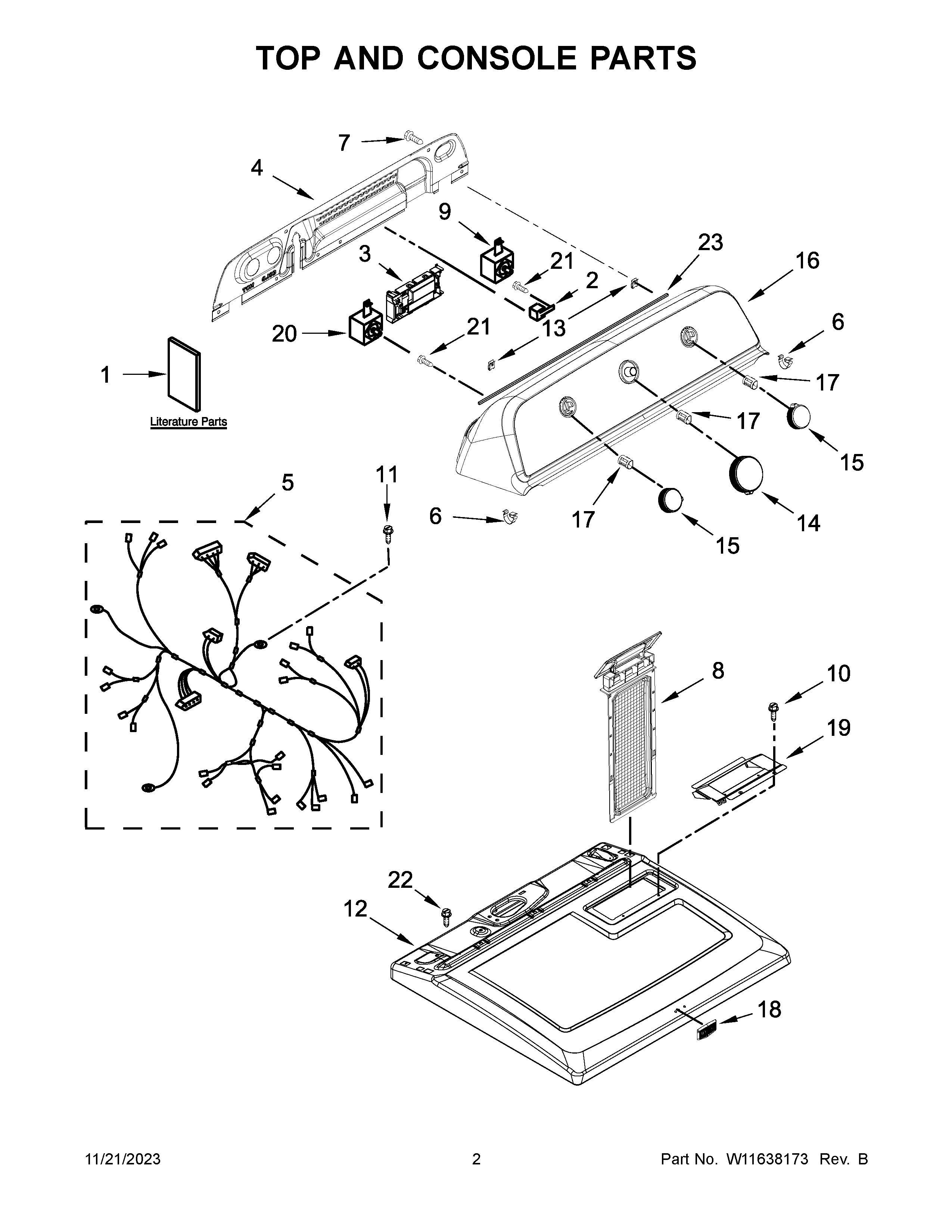

MGD5430MW0 02 – TOP AND CONSOLE PARTS

MGD5430MW0 02 – TOP AND CONSOLE PARTS

Written by

in

MGD5430MW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1BQUICK START GUIDE
1ATECH SHEET
2WP694419 Whirlpool Buzzer Adjuster
3W11718884-includeCORE Whirlpool Electronic Control+Core
4W10775189 Whirlpool Rear Panel
5W11627562 Whirlpool Wire Harness
6WP8312709 Whirlpool Endcap Clip
7SCREW
8SCREEN
9W11625516 Whirlpool Dryer Switch
10W11693756 Whirlpool Screw Assembly
11WP90767 Whirlpool Screw
12W11222514 Whirlpool Top Assembly
13W11213336 Whirlpool Nut
14W11675852 Whirlpool Dryer Control Knob
15W11625514 Whirlpool Knob
16W11625515 Whirlpool Dryer Console
17WP688805 Whirlpool Spring Clip
18WPW10612925 Whirlpool Microwave Nameplate
19W10662472 Whirlpool Cover Assembly
20W11625517 Whirlpool Dryer Switch
21WP9740848 Whirlpool Dishwasher Screw
23W11721376 Whirlpool Seal Assembly
