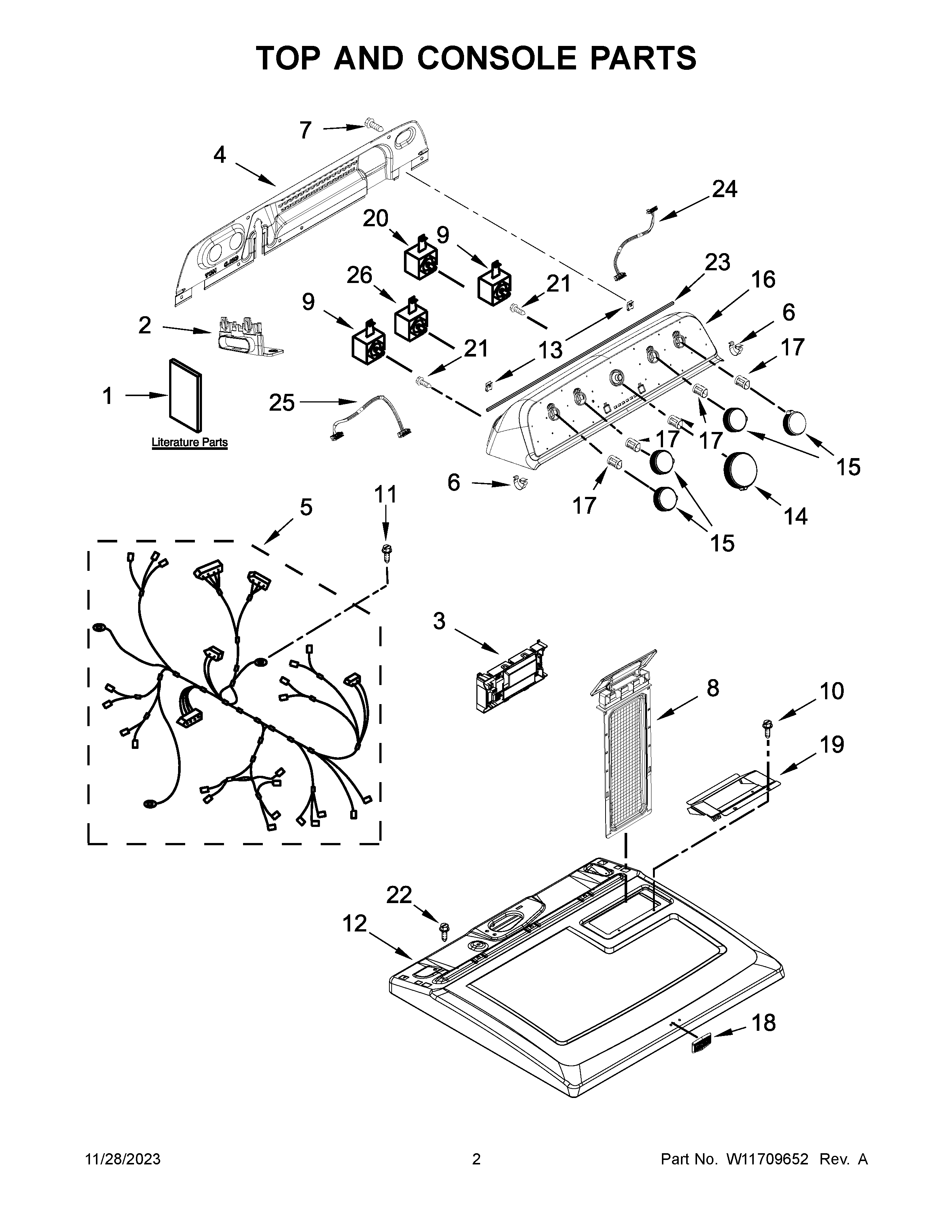

MGD5430PBK0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1ATECH SHEET
1BQUICK START GUIDE
2W11627417 Whirlpool Connector
3W11718884-includeCORE Whirlpool Electronic Control+Core
4W10775189 Whirlpool Rear Panel
5W11627562 Whirlpool Wire Harness
6WP8312709 Whirlpool Endcap Clip
7SCREW
8W11633115 Whirlpool Screen Assembly
9W11168256 Whirlpool Cycle Switch
10W11693756 Whirlpool Screw Assembly
11WP90767 Whirlpool Screw
12W11633116 Whirlpool Top
13W11213336 Whirlpool Nut
14W11675852 Whirlpool Dryer Control Knob
15W11625514 Whirlpool Knob
16ASSEMBLY, CONSOLE (GRAY)
17WP8536939 Whirlpool Spring Clip
18WPW10612925 Whirlpool Microwave Nameplate
19W10662472 Whirlpool Cover Assembly
20WPW10414397 Whirlpool Cycle Switch
21WP9740848 Whirlpool Dishwasher Screw
23W11721376 Whirlpool Seal Assembly
24HARNESS, UPPER ENCODER RS
25HARNESS, UPPER ENCODER
26WPW10414398 Whirlpool Cycle Switch
