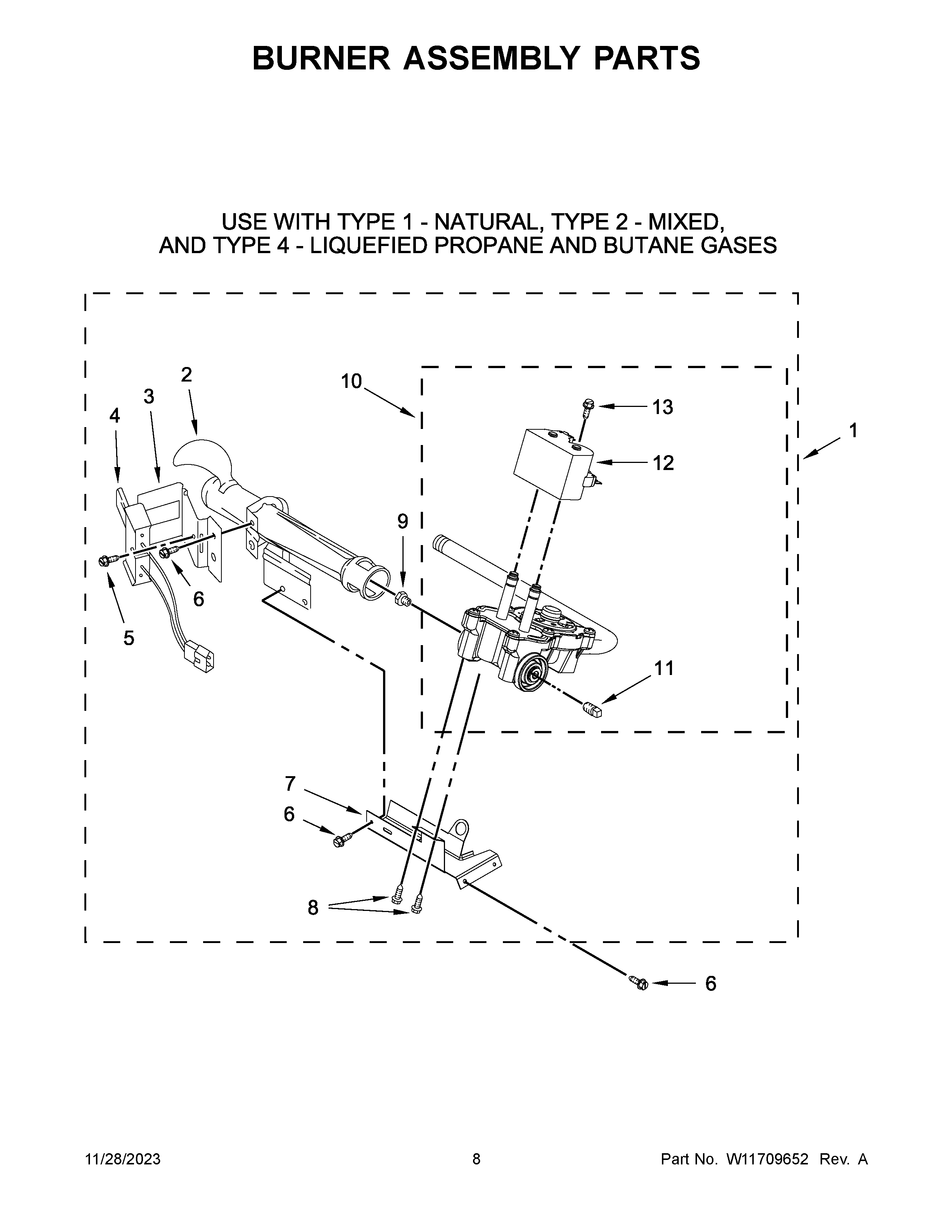

MGD5430PBK0 05 – BURNER ASSEMBLY PARTS

MGD5430PBK0 05 – BURNER ASSEMBLY PARTS

Written by

in

MGD5430PBK0 05 – BURNER ASSEMBLY PARTS

Products

PositionProduct
NIW11581316 Whirlpool Gas LP Conversion
NIFOLLOWING PARTS NOT ILLUSTRATED
1W11652257 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP234826 Whirlpool Gas Orifice
10W11646258 Whirlpool Gas Valve
11W10295523 Whirlpool Plug
12WPW10328463 Whirlpool Valve Coil
13326049536 Whirlpool Screw
