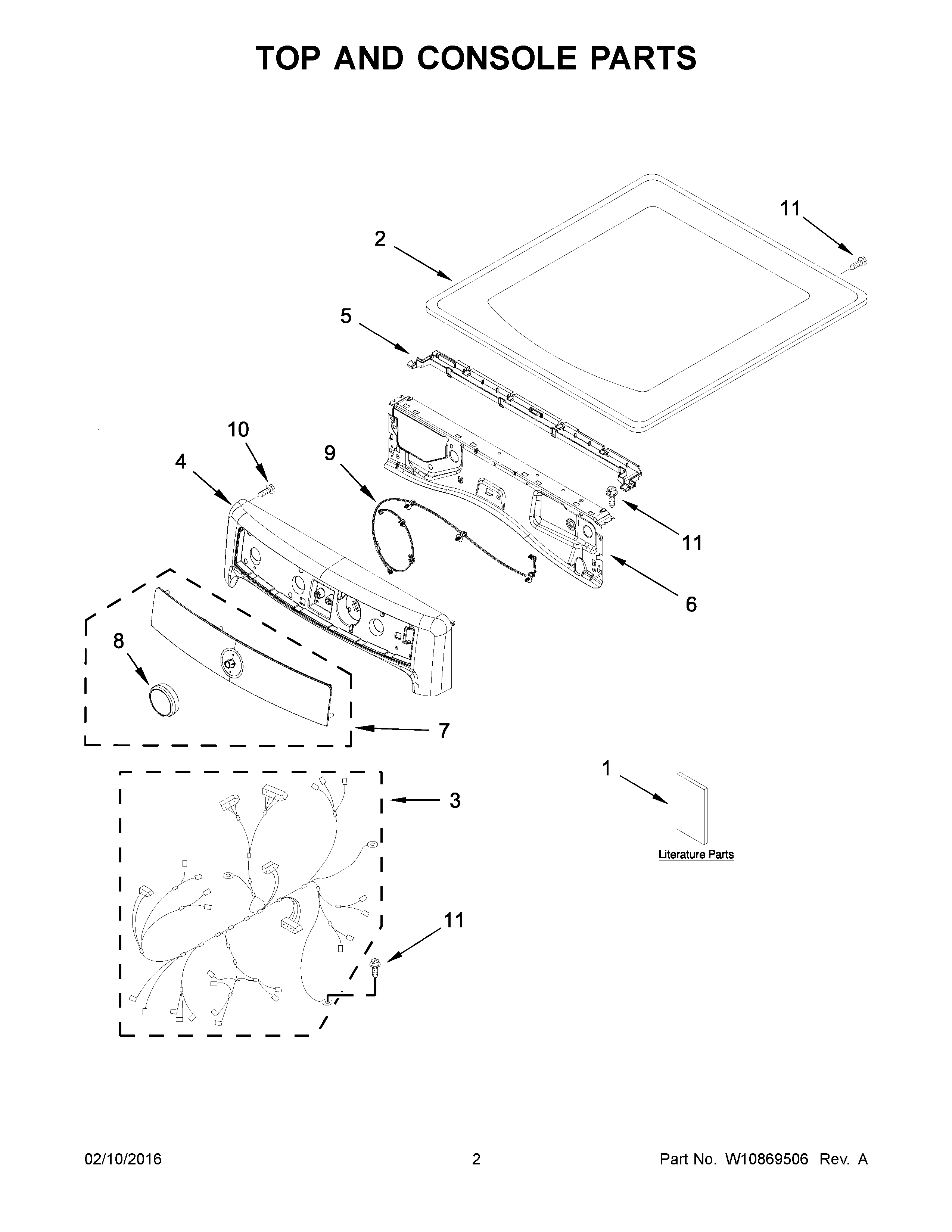

MGD5500FC0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	TECH SHEET
1C	WIRING DIAGRAM
1B	MAY W10775221
1D	QUICK START GUIDE
1	USE AND CARE GUIDE
2	MAY W10208383
2A	TOP (CHROME SHADOW)
3	HARNESS, MAIN WIRING
4A	CONSOLE ASSEMBLY (CHROME SHADOW)
4	MAY W10391555
5	WATER CHANNEL
6	MAY W10208198
7	MAY W10783693
7A	ASSEMBLY, IML (CHROME SHADOW)
8	ASSEMBLY, CONTROL KNOB (CHROME)
9	MAY W10540653
10	MAY W10489172
11	SCREW
