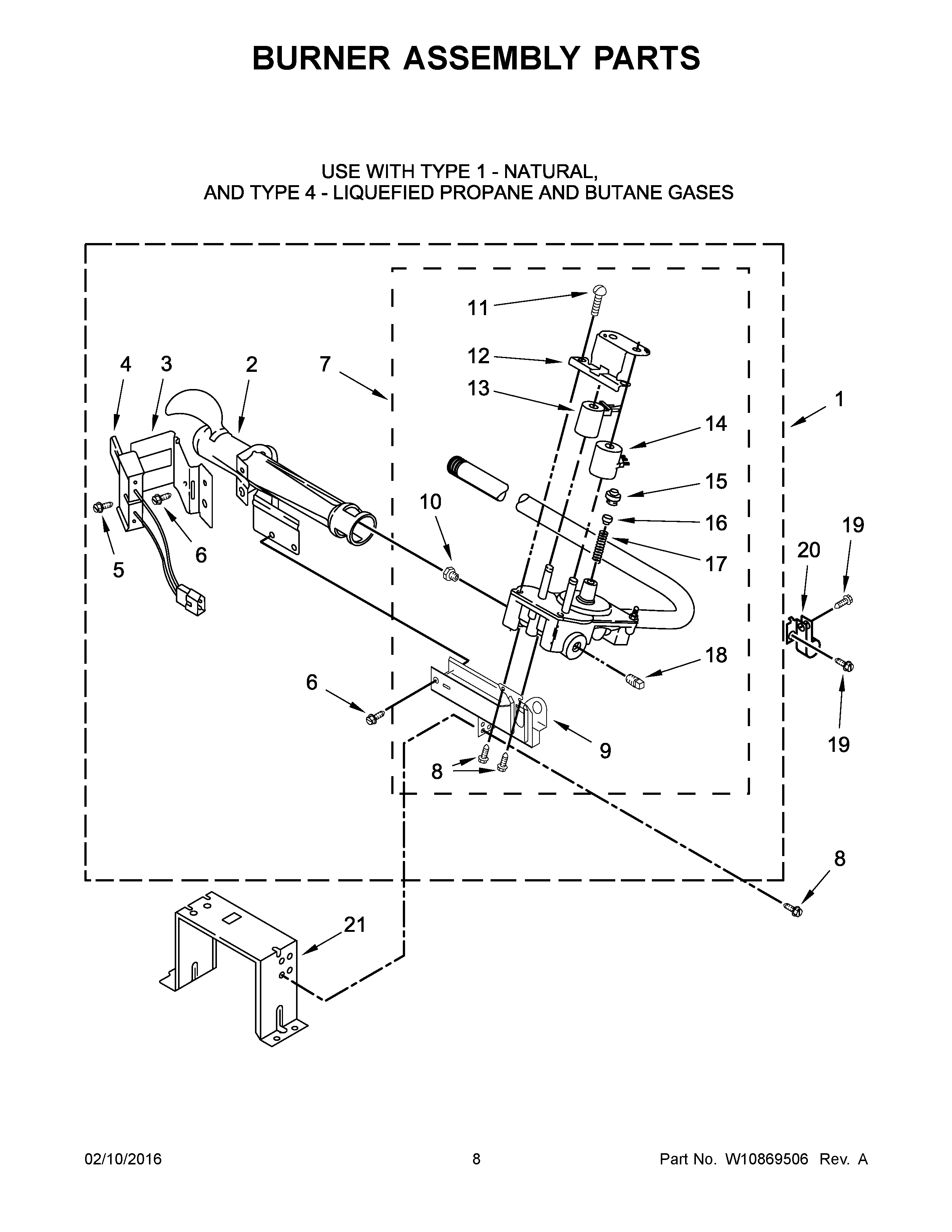

MGD5500FC0 05 – BURNER ASSEMBLY PARTS
Written by
in
MGD5500FC0 05 – BURNER ASSEMBLY PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
Conversion Kit (Type (1) to Type (4) LPG).
1
BURNER ASSEMBLY 60 HZ. (TYPE 1)(WHITE RODGERS)
2
MAY 688617
3
MAY 694298
4
MAY 686590
5
MAY 3393909
6
SCREW
7
VALVE, GAS 60 HZ. (COMPLETE)
8
SCREW
9
MAY 3389871
10
ORIFICE, BURNER (TYPE 1 (NATURAL))
10B
Orifice, Burner (Type 4 (Propane))
10A
Orifice, Burner (Type 4 (Butane))
11
SCREW, COIL
12
MAY 694538
13
MAY 694540
14
COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15
MAY 694424
16
MAY 694423
17
MAY 694422
18
MAY 239822
19
SCREW
20
MAY 3387561
21
MAY 3389889
←
