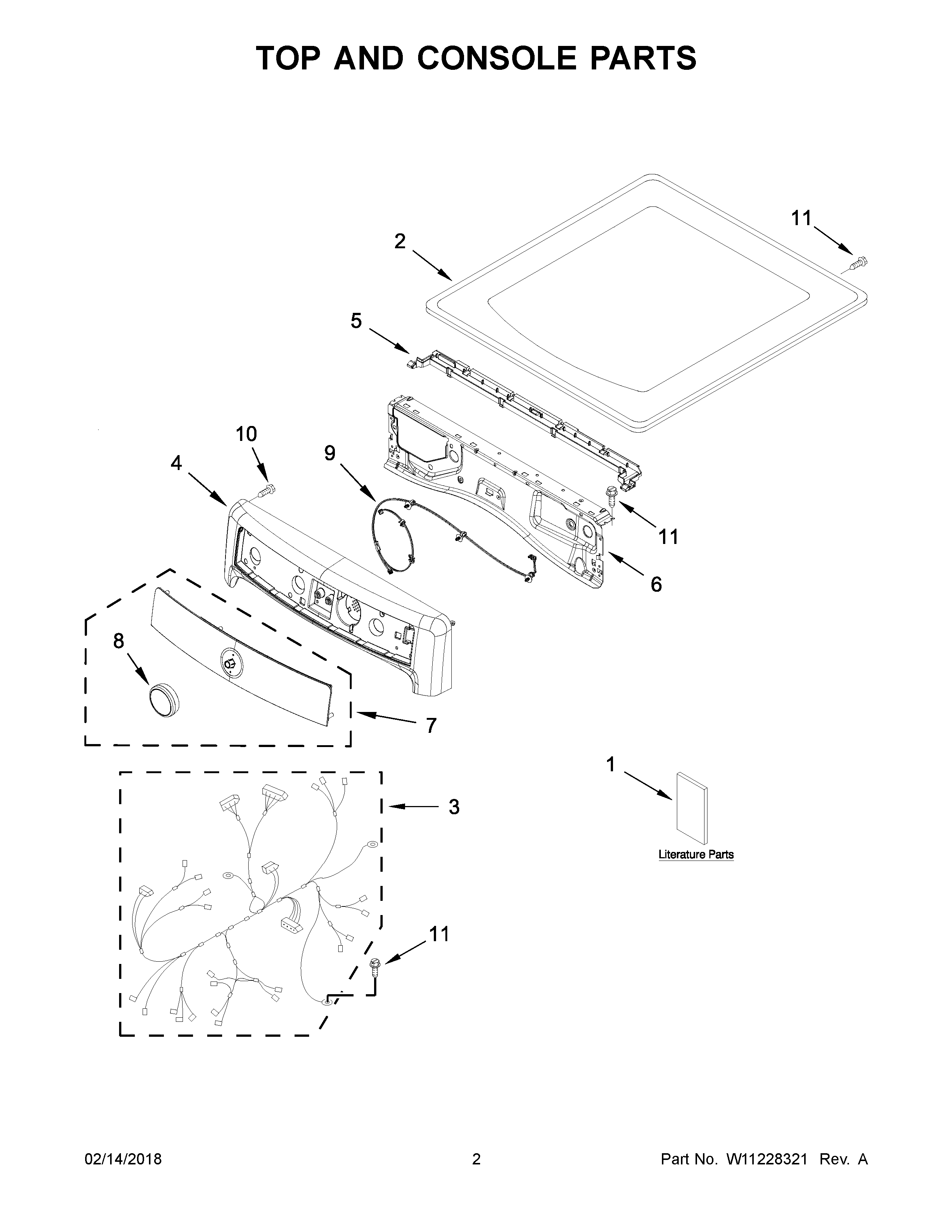

MGD5500FC1 02 – TOP AND CONSOLE PARTS

MGD5500FC1 02 – TOP AND CONSOLE PARTS

Written by

in

MGD5500FC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1ATECH SHEET
1CWIRING DIAGRAM
1USE AND CARE GUIDE
1BINSTALLATION INSTRUCTIONS
1DQUICK START GUIDE
2MAY W10208383
2ATOP (CHROME SHADOW)
3HARNESS, MAIN WIRING
4MAY W10391555
4ACONSOLE ASSEMBLY (CHROME SHADOW)
5WATER CHANNEL
6MAY W10208198
7AMAY W10825123
7MAY W10825121
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10MAY W10489172
11SCREW
